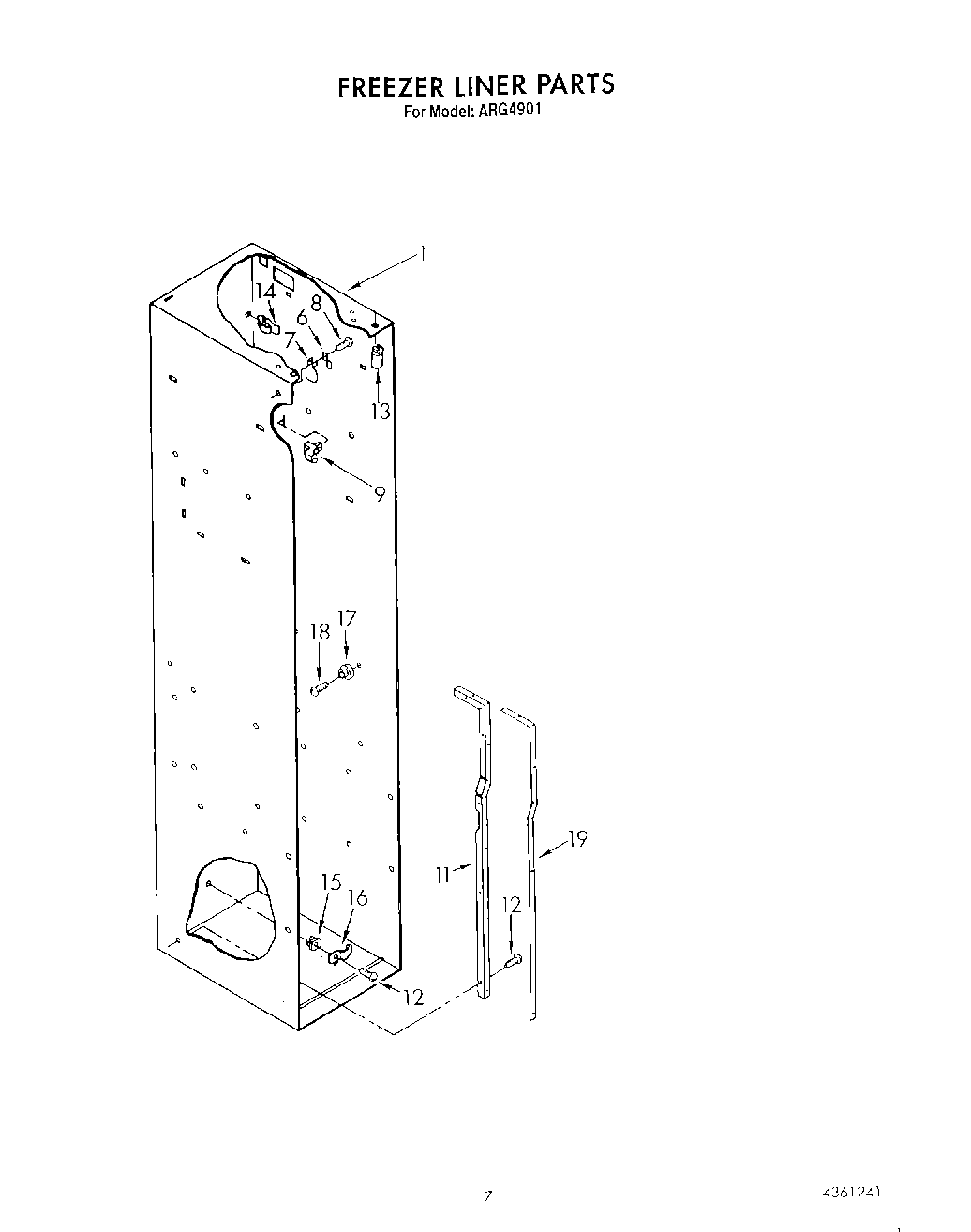

ARG4901 07 – FREEZER LINER

ARG4901 07 – FREEZER LINER

Written by

in

ARG4901 07 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
6Support Clip
7Grommet, Screw (2)
8SCREW
9Support, Stud
11Rail, Evaporator Cover (Left Side)
11Rail, Evaporator Cover (Right Side)
12W11624204 Whirlpool Screw
13Spacer, Control Panel (3)
142215823 Whirlpool Refrigerator Clip
15Grommet
161112260 Whirlpool EV Support
17Stud
18Screw
19Gasket, Evaporator Cover (2)
