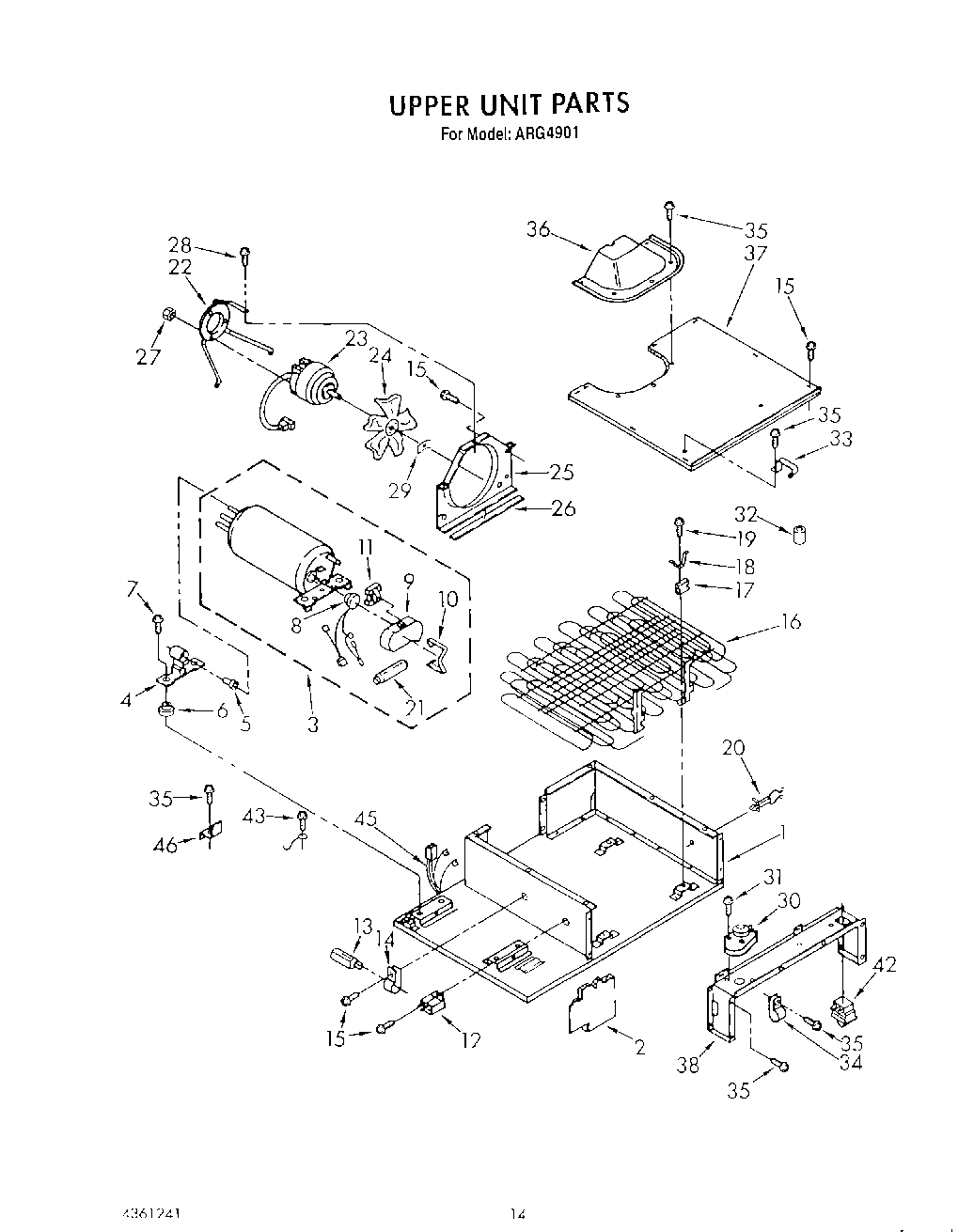

ARG4901 14 – UPPER UNIT

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	978030 Whirlpool Refrigerator Valve
	WP978025 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	Assembly, Unit Base
2	Assembly, Sound Barrier
3	Compressor (Includes Items 8, 9, 10, 11, 12, 13, 21) (Also Order)
3	876765 Whirlpool Primary Mounting Kit Refrigerator
4	Bracket, Mounting
5	Grommet, Compressor Bracket
6	Grommet, Compressor (4)
7	Screw (4)
8	Overload (Production) (Includes Relay)
8	Overload (Service) (Includes Relay)
9	Terminal Cover (Service)
10	Strap, Cover
11	Relay (See Overload)
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
12	Running Capacitor
13	Capacitor, Start
14	Tube Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Wire Tie (2)
21	Drier
22	Mounting Bracket, Motor
23	Motor, Fan
24	Blade, Fan
25	Orifice, Fan
26	Gasket, Orifice
27	WP488130 Whirlpool Air Conditioner Nut
28	Screw, 8 x 1/2 (3)
29	WP486692 Whirlpool Refrigerator Nut
30	Defrost Timer, (10 Hr.)
31	WP3388228 Whirlpool Screw
32	Sleeve, Condenser
33	Clamp, Tube (2) ()
33	Clamp, Tube (2) ()
33	Clamp, Tube (2)
34	489348 Whirlpool Refrigerator Tube Clamp
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Extension, Housing
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
45	Wiring Harness, Unit Compartment
46	Stop
