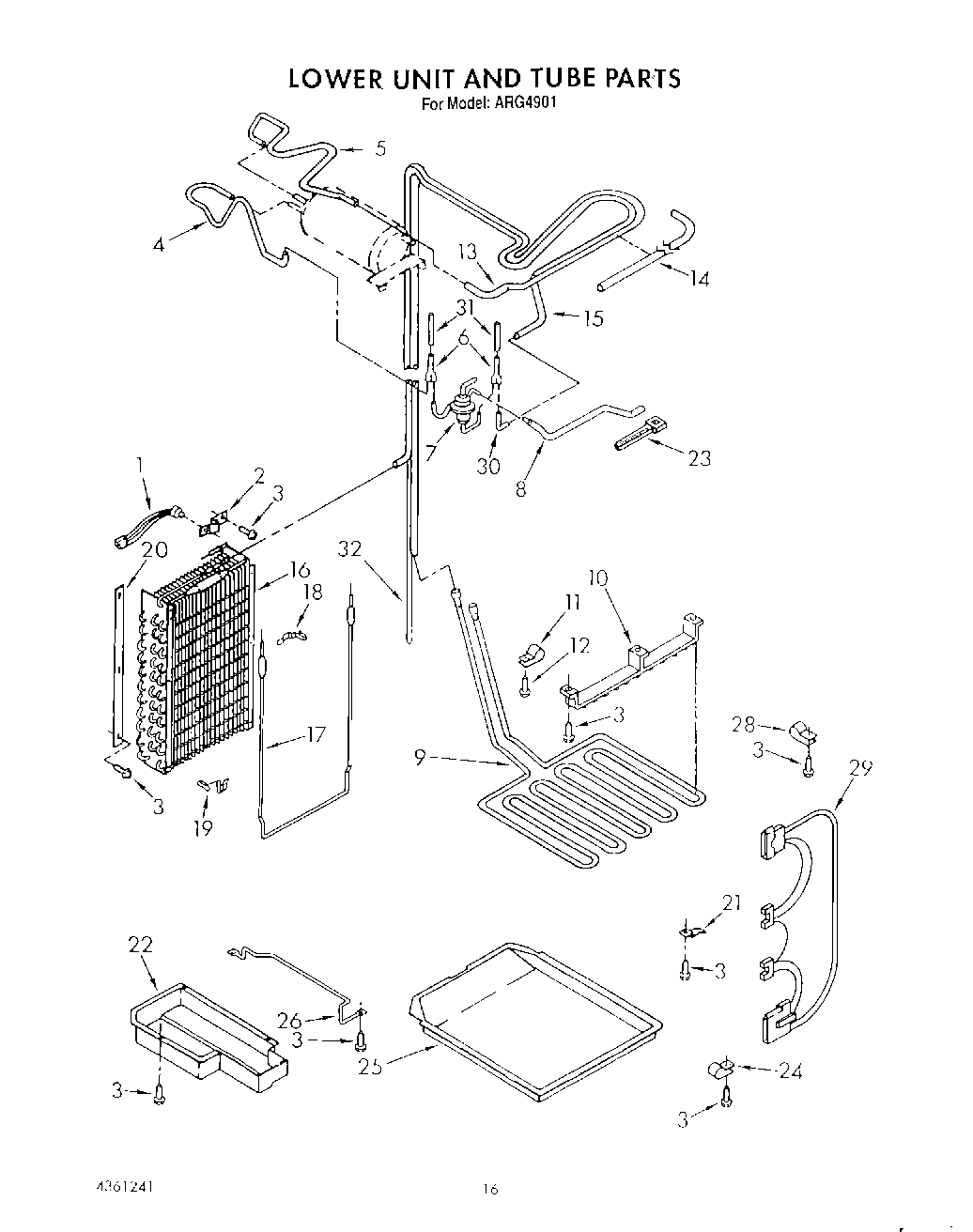

ARG4901 15 – LOWER UNIT AND TUBE

Products

Position	Product
1	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
2	Clamp, Bi-Metal
3	W11624204 Whirlpool Screw
4	Tube, Connect (Suction)
5	Tube, Connect (Discharge)
6	Tube, Flow Divider (2)
7	Valve, Fluid Control
8	Tube, Connect (Drier)
9	Heater, Drain Pan
10	Hanger, Heater
11	Bracket, Heater
12	WP488163 Whirlpool Refrigerator Screw
13	Tube, Discharge
14	WP2002171 Whirlpool Refrigerator Sleeve
15	Heat Exchanger
16	WPW10122127 Whirlpool Refrigerator Evaporator
17	Heater, Defrost
18	1113048 Whirlpool Refrigerator Clamp
19	Heater, Clamp (4)
20	Gasket, Evaporator
21	Clip, Connector
22	Guard, Hook-Up
23	Strap
24	488946 Whirlpool Air Conditioner Clamp
25	WP2001264 Whirlpool Refrigerator Drip Pan
26	Bracket, Drain Pan (Right)
26	Bracket, Drain Pan (Left)
28	Clip, Tube (3)
29	Wiring Harness, Water Valve
30	Tube, Connect (Suction)
31	Tube (2)
32	Tube, Condenser Inlet
