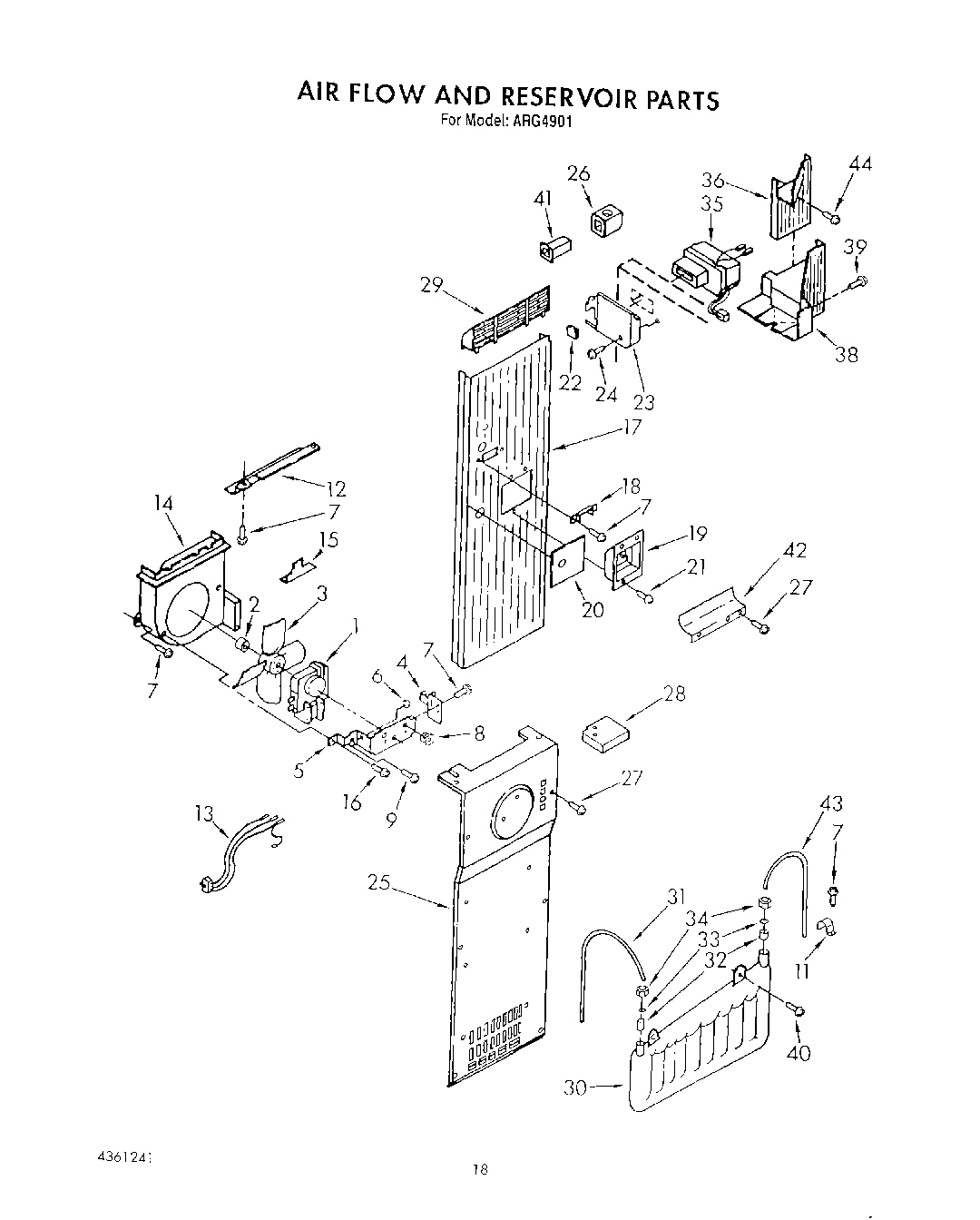

ARG4901 17 – AIR FLOW AND RESERVOIR

Products

Position	Product
1	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
2	Ring, Compression
3	Blade, Fan
4	Fan, Bracket Double
5	Fan Bracket, Single
6	Grommet (3)
7	W11624204 Whirlpool Screw
8	Screw Grommet
9	WP489128 Whirlpool Refrigerator Screw
11	WP488366 Whirlpool Refrigerator Clamp
12	Channel, Wiring
13	Wiring Harness, Fan Motor
14	Scroll Fan
15	Shield, Scroll
16	WP489069 Whirlpool Compactor Screw
17	Assembly, Air Duct
18	Air Deflector, Icemaker
19	Cup, Motor
20	Shield
21	Fastener (3)
22	Gasket, Air Baffle
23	Cover, Air Outlet
24	WPW10141625 Whirlpool Refrigerator Screw Assembly
25	Cover, Evaporator
26	Connector, Meat Pan Duct
27	WP488729 Whirlpool Refrigerator Door Screw
28	Baffle, Evaporator
29	Diffuser, Air Duct
30	WP2256126 Whirlpool Refrigerator Reservoir
31	W10823511 Whirlpool Refrigerator Water Tube
32	4387491 Whirlpool Refrigerator Insert
33	“O“ Ring Seal
34	Nut, Compression
35	Assembly, Air Baffle
36	Insulation, Air Diffuser
38	Cover, Air Diffuser
39	WP489174 Whirlpool Refrigerator Screw
40	Screw, 8 x 1-1/2
41	Tube, Meat Pan
42	Evaporator Baffle Cover
43	Water Tube (Outlet)
44	WP488163 Whirlpool Refrigerator Screw
