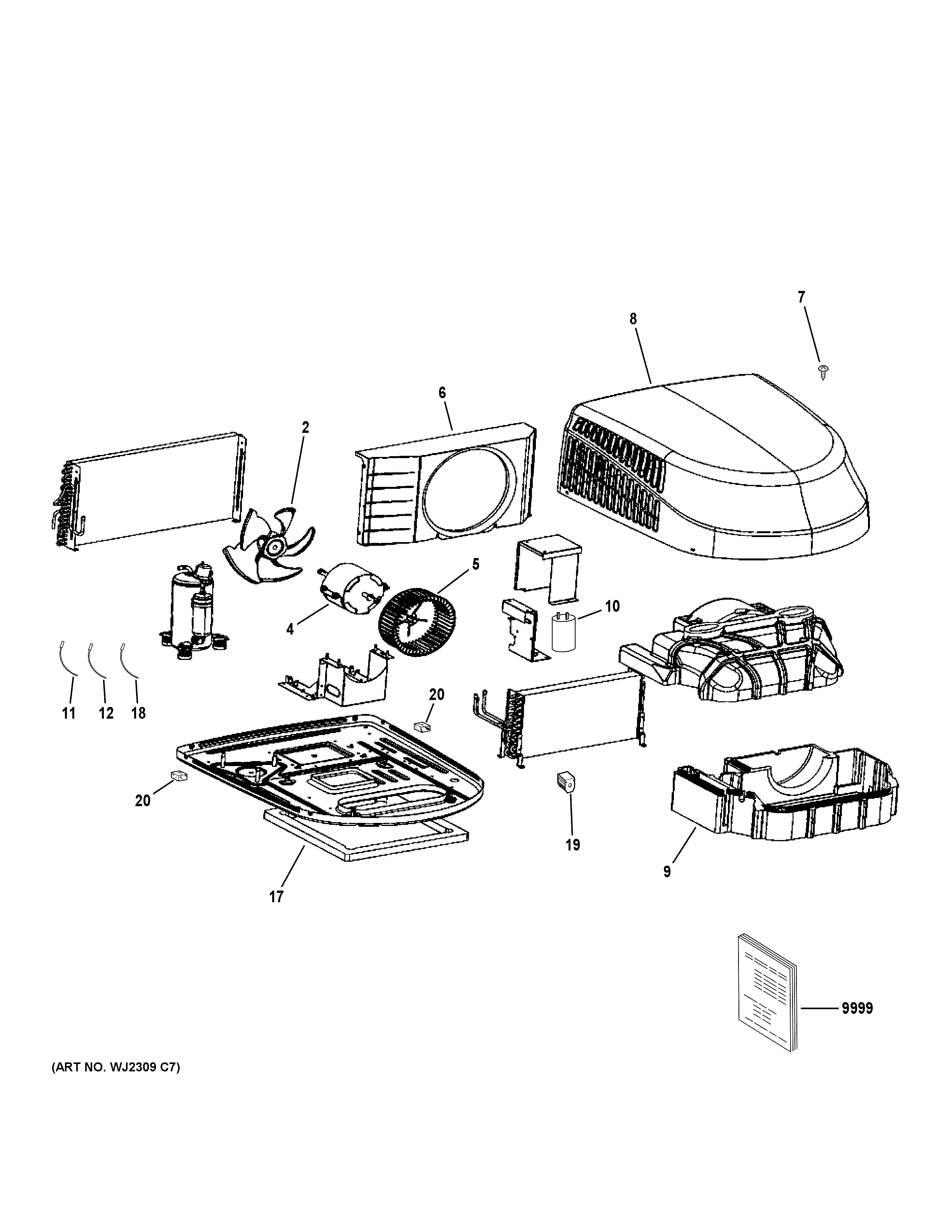

ARH15AACWH2 ROOM AIR CONDITIONER

Products

PositionProduct
2WJ73X25397 GE Outdoor Fan Blade
4WJ94X25405 GE Fan Motor
5WJ73X25396 GE Indoor Blower
6WJ76X25398 GE Outdoor Fan Shroud
7WJ01X25409 GE Outdoor Shroud Cover Screws
8WJ76X25399 GE Outdoor Cover Shroud White
9WJ76X28334 GE Indoor Cover Blower
10WJ20X28413 GE Run Capacitor
11WJ35X25408 GE Main Harness
12WJ35X25407 GE Compressor Harness
17WJ43X25403 GE Roof Gasket
18WJ26X27379 GE Outdoor Coil and Ambient Sensor
19WJ26X27380 GE Reversing Valve Coil
20WP43X28653 GE Foam Base Pan
9999PM OWNERS MANUAL
