ART104TFDB03 05 – DOOR PARTS

ART104TFDB03 05 – DOOR PARTS

Written by

in

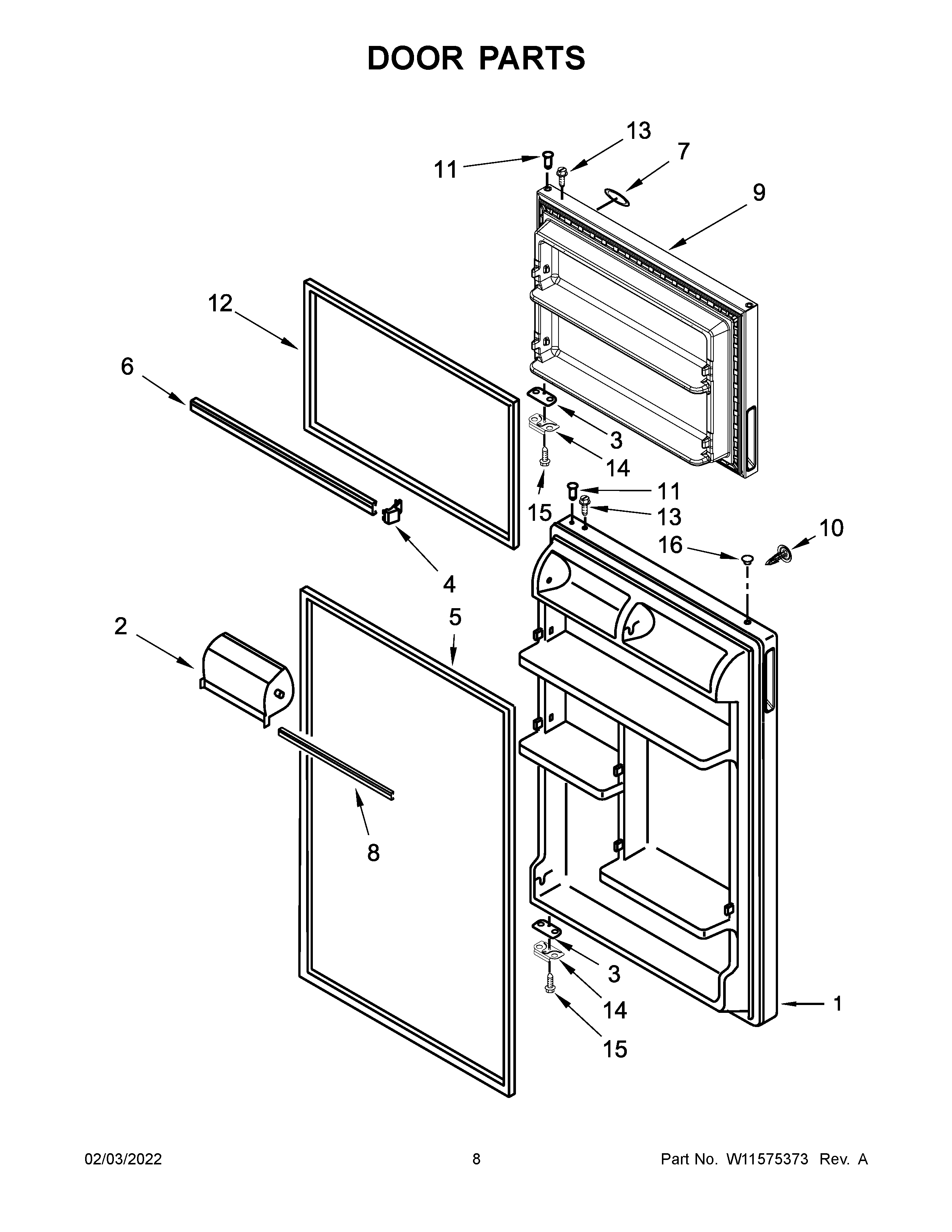

ART104TFDB03 05 – DOOR PARTS

Products

PositionProduct
1AREFRIGERATOR DOOR (INCLUDES DOOR GASKET) (BLACK)
1LW10570557 Whirlpool Refrigerator DOR-FIP Assembly
2DOOR-COMP
3A2258681B Whirlpool Refrigerator Shim
3WP2258681W Whirlpool Refrigerator Shim
4WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5WP2319265T Whirlpool Refrigerator FIP Gasket
5A2319265B Whirlpool Refrigerator FIP Gasket
6WP2266727 Whirlpool Refrigerator Door Trim
7W11428492 Whirlpool Refrigerator Nameplate
8W11129820 Whirlpool Refrigerator Door Trim
9ALW10570947 Whirlpool Refrigerator Door Frame
9LW10573399 Whirlpool Refrigerator DOR-FIP
10W10830984 Whirlpool Handle Plug
10AW10830983 Whirlpool Refrigerator Handle Plug
11WP2183003 Whirlpool Thimble
12AWP2319263B Whirlpool Refrigerator Black Door Gasket
12GASKET-FIP
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15WP488921 Whirlpool Refrigerator Screw
16AWP2212651 Whirlpool Refrigerator Button Plug
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
