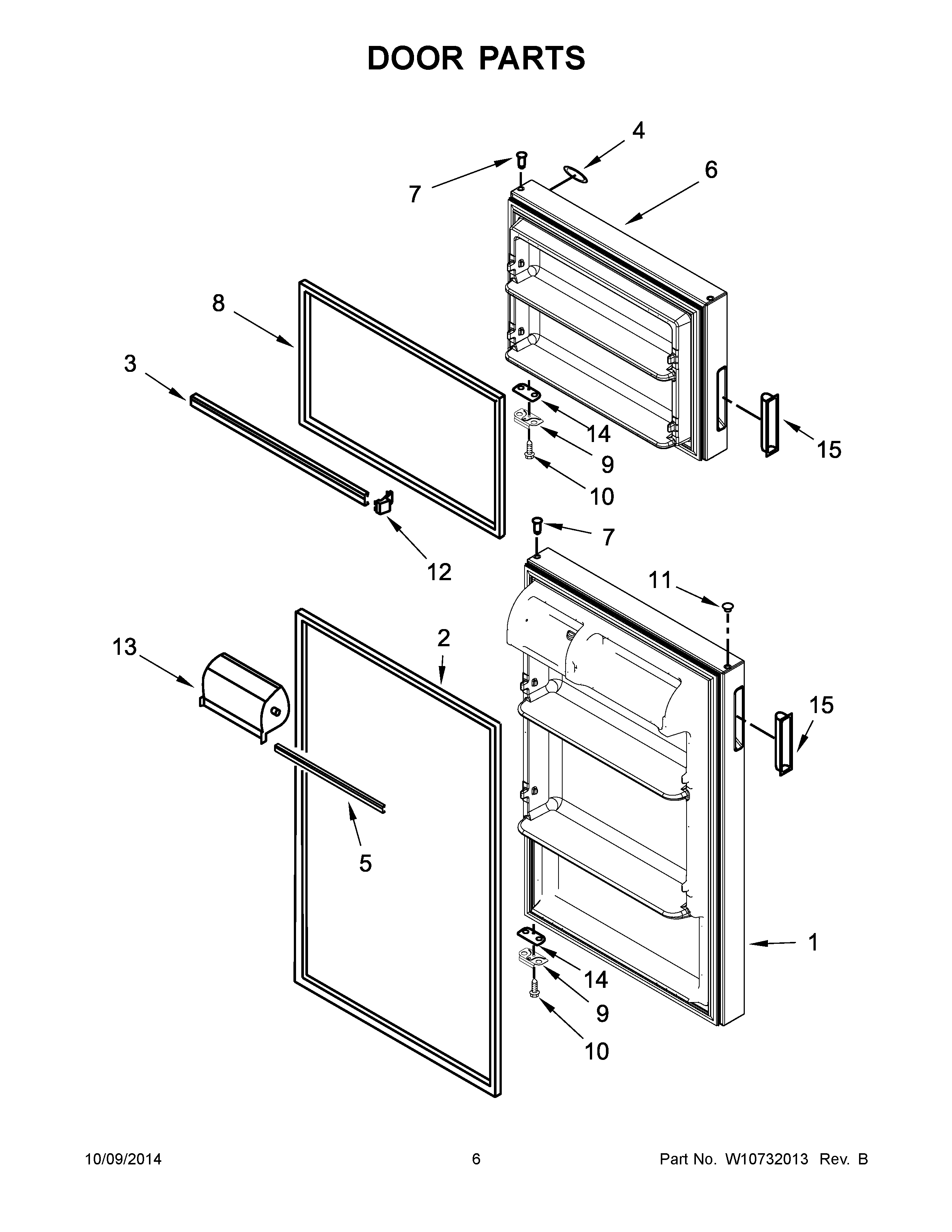

ART106TFDB00 04 – DOOR PARTS

ART106TFDB00 04 – DOOR PARTS

Written by

in

ART106TFDB00 04 – DOOR PARTS

Products

PositionProduct
1MAY W10573330
1AMAY W10570563
2DOOR GASKET, MAGNETIC (WHITE)
2ADoor Gasket, Magnetic (Black)
3MAY 2266727
4MAY W10200425
5MAY W10234242
6AMAY W10573400
6MAY W10573333
7MAY 2262054
8AGASKET, FC (BLACK)
8MAY 2264726
9MAY 2189202
10MAY 488921
11AHole Plug (Black)
11MAY 2212648
12END CAP, TRIM
13MAY 2207942
14Shim, Door Stop (White)
14AShim, Door Stop (Black)
15AHANDLE CUP (BLACK)
15HANDLE CUP (WHITE)
