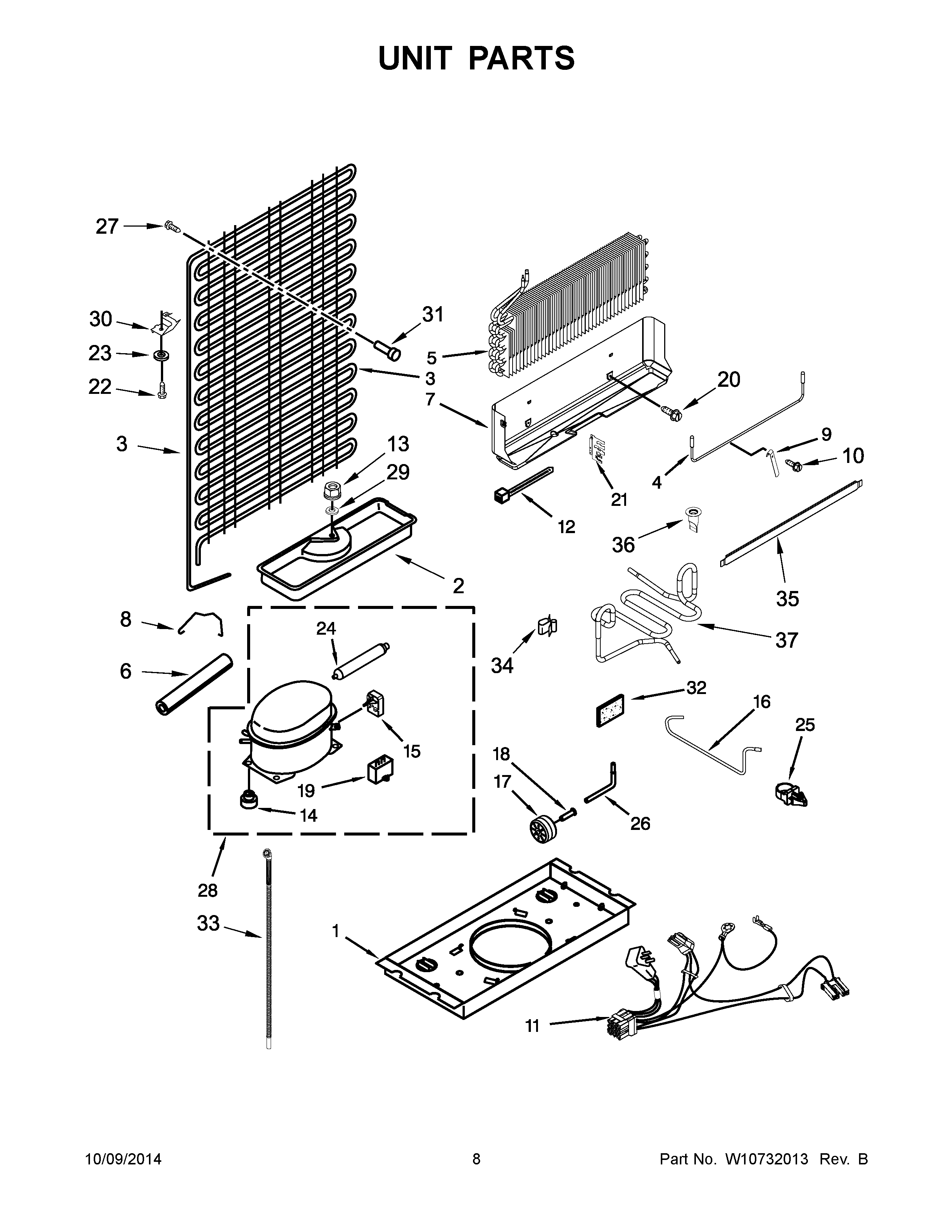

ART106TFDB00 05 – UNIT PARTSadmin2025-04-26T11:40:04+00:00ART106TFDB00 05 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (1/2``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY W10222451 |
| 2 | TRAY, EVAPORATOR |
| 3 | MAY W10219348 |
| 4 | MAY W10570573 |
| 5 | ASSEMBLY, EVAPORATOR |
| 6 | Sleeve, Pressure Switch Hose |
| 7 | MAY W10570572 |
| 8 | MAY W10174384 |
| 9 | MAY 2258429 |
| 10 | MAY 489478 |
| 11 | MAY W10578837 |
| 12 | MAY 2263990 |
| 13 | MAY 489153 |
| 14 | GROMMET |
| 15 | DEVICE, START |
| 16 | MAY W10608276 |
| 17 | MAY W10475495 |
| 18 | RIVET, AXLE |
| 19 | MAY W10662129 |
| 20 | MAY 8533919 |
| 21 | BRACKET, EVAPORATOR |
| 22 | MAY 489442 |
| 23 | MAY VS611 |
| 24 | DRIER |
| 25 | Clip, Harness (1) |
| 26 | MAY VS20001 |
| 27 | MAY 8533892 |
| 28 | MAY W10575980 |
| 29 | Washer (7/64) |
| 30 | MAY 2172892 |
| 31 | MAY 2258452 |
| 32 | MAY 2215468 |
| 33 | MAY W10286976 |
| 34 | MAY 939054 |
| 35 | MAY W10300902 |
| 36 | VALVE, DRAIN |
| 37 | MAY W10609247 |
