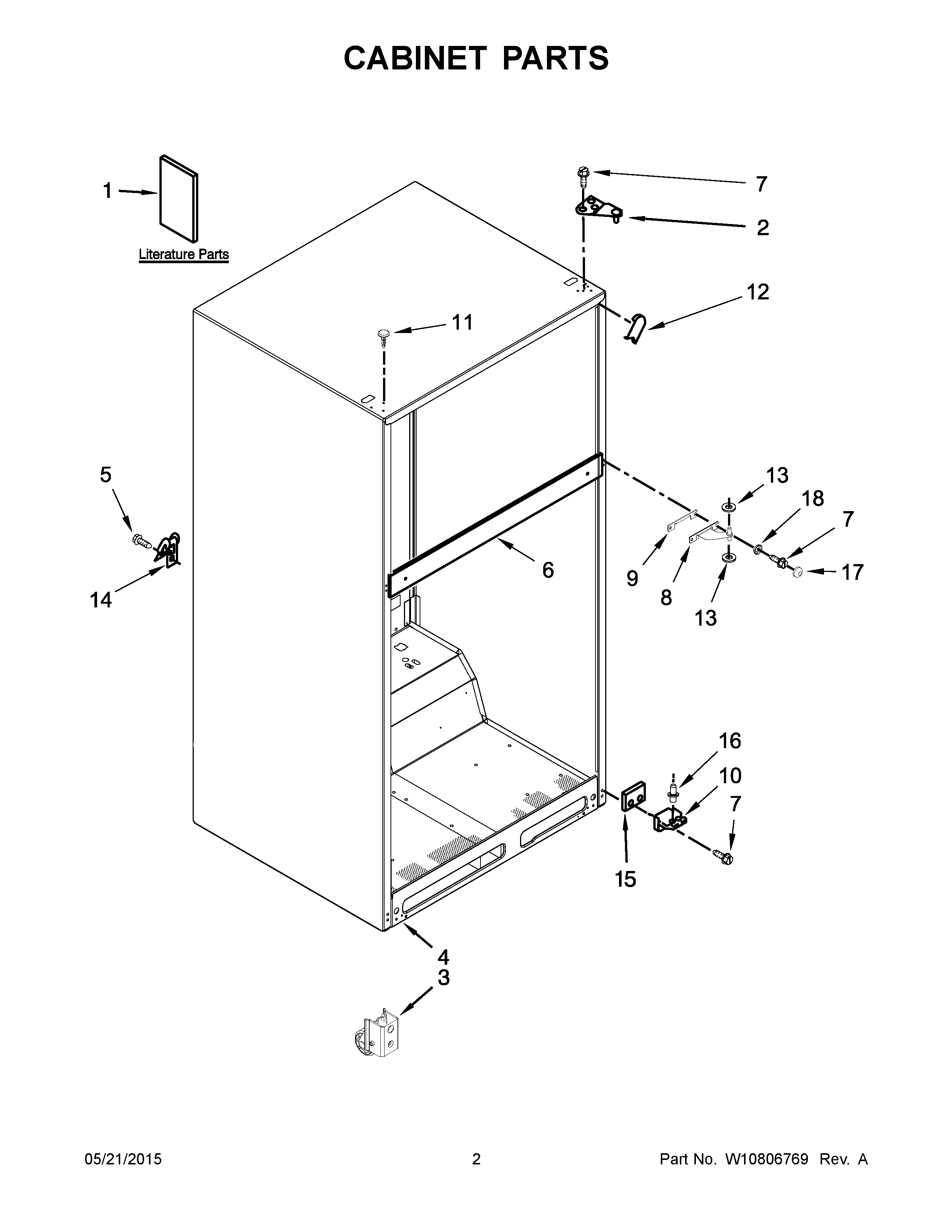

ART106TFDB01 02 – CABINET PARTS

Products

PositionProduct
1BMAY W10725970
1MAY W10761080
1AMAY W10723054
2MAY 2261963
3ROLLER, FRONT
5MAY 489442
6LINER (NOT A SERVICEABLE PART)
7MAY 489497
8MAY 2166086
9ASHIM, CENTER HINGE (BLACK)
9SHIM, HINGE CENTER (WHITE)
10Hinge Butt, Btm
11MAY W10520304
11AHOLE PLUG (BLACK)
12Corner Filler
12ACorner Filler (Black)
13Washer (7/64)
14MAY 549193
15MAY 2201567
16Hinge-Pin, Btm
17ACAP, DOME (BLACK)
17CAP, DOME (WHITE)
18CAP, WASHER DOME
