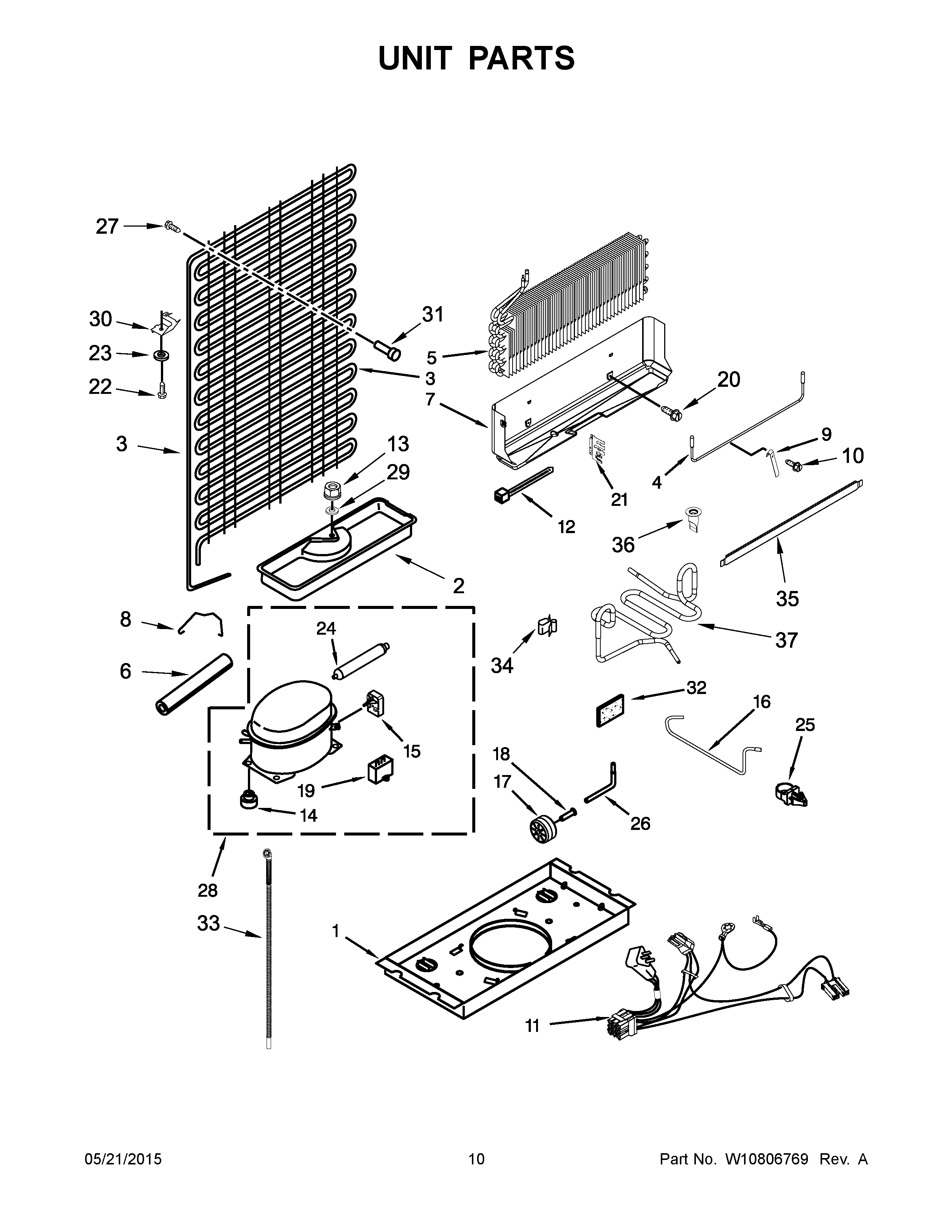

ART106TFDB01 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10222451
2	TRAY, EVAPORATOR
3	MAY W10219348
4	MAY W10570573
5	ASSEMBLY, EVAPORATOR
6	Sleeve, Pressure Switch Hose
7	MAY W10570572
8	MAY W10174384
9	MAY 2258429
10	MAY 489478
11	MAY W10578837
12	MAY 2263990
13	MAY 489153
14	GROMMET
15	DEVICE, START
16	MAY W10608276
17	MAY W10475495
18	RIVET, AXLE
19	MAY W10658690
20	MAY 8533919
21	BRACKET, EVAPORATOR
22	MAY 489442
23	MAY VS611
24	DRIER
25	Clip, Harness (1)
26	MAY VS20001
27	MAY 8533892
28	MAY W10445423
29	Washer (7/64)
30	MAY 2172892
31	MAY 2258452
32	MAY 2215468
33	MAY W10286976
34	MAY 939054
35	MAY W10300902
36	VALVE, DRAIN
37	MAY W10609247
