ART106TFDW01 02 – CABINET PARTS – Aparts

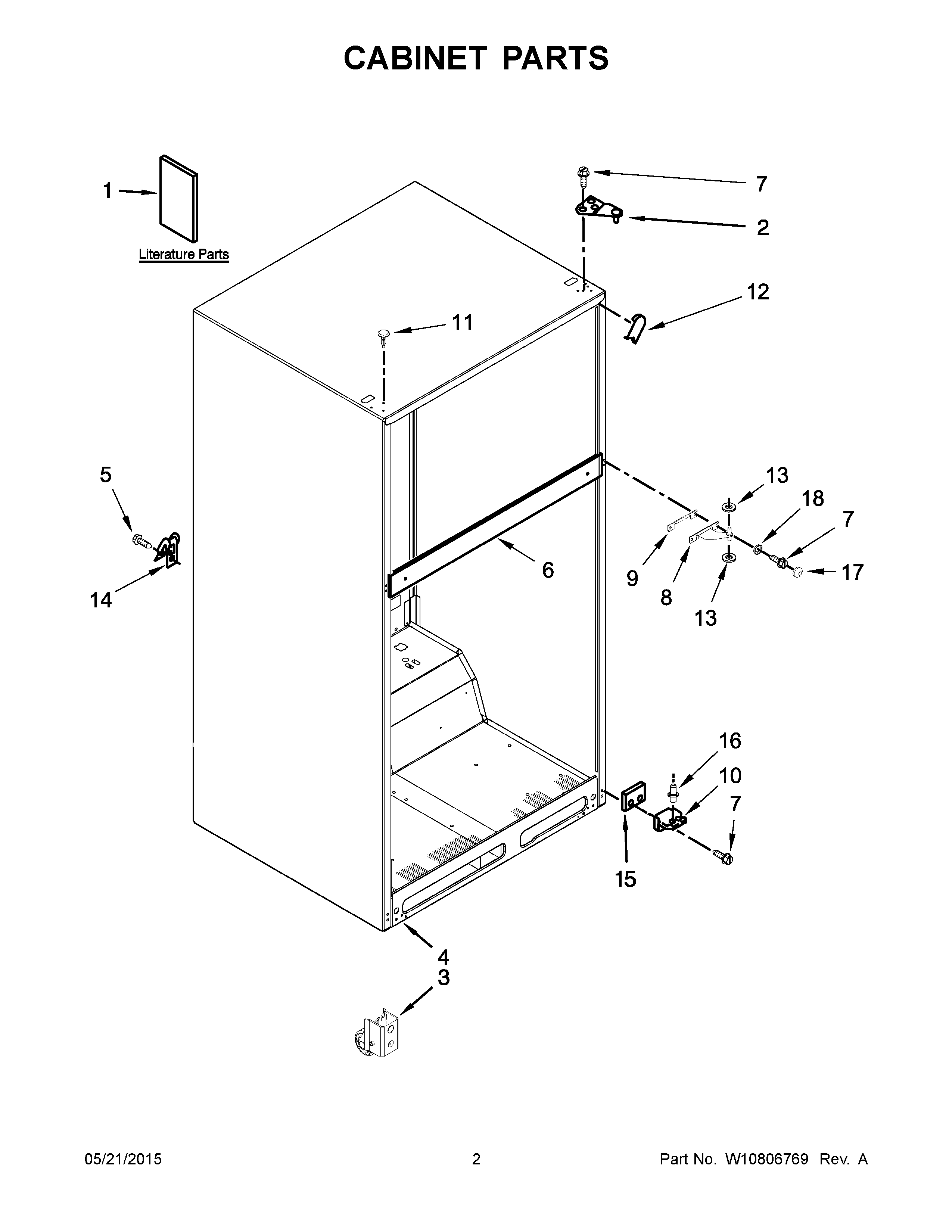

ART106TFDW01 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10725970
1	MAY W10761080
1A	MAY W10723054
2	MAY 2261963
3	ROLLER, FRONT
5	MAY 489442
6	LINER (NOT A SERVICEABLE PART)
7	MAY 489497
8	MAY 2166086
9A	SHIM, CENTER HINGE (BLACK)
9	SHIM, HINGE CENTER (WHITE)
10	Hinge Butt, Btm
11	MAY W10520304
11A	HOLE PLUG (BLACK)
12	Corner Filler
12A	Corner Filler (Black)
13	Washer (7/64)
14	MAY 549193
15	MAY 2201567
16	Hinge-Pin, Btm
17A	CAP, DOME (BLACK)
17	CAP, DOME (WHITE)
18	CAP, WASHER DOME
