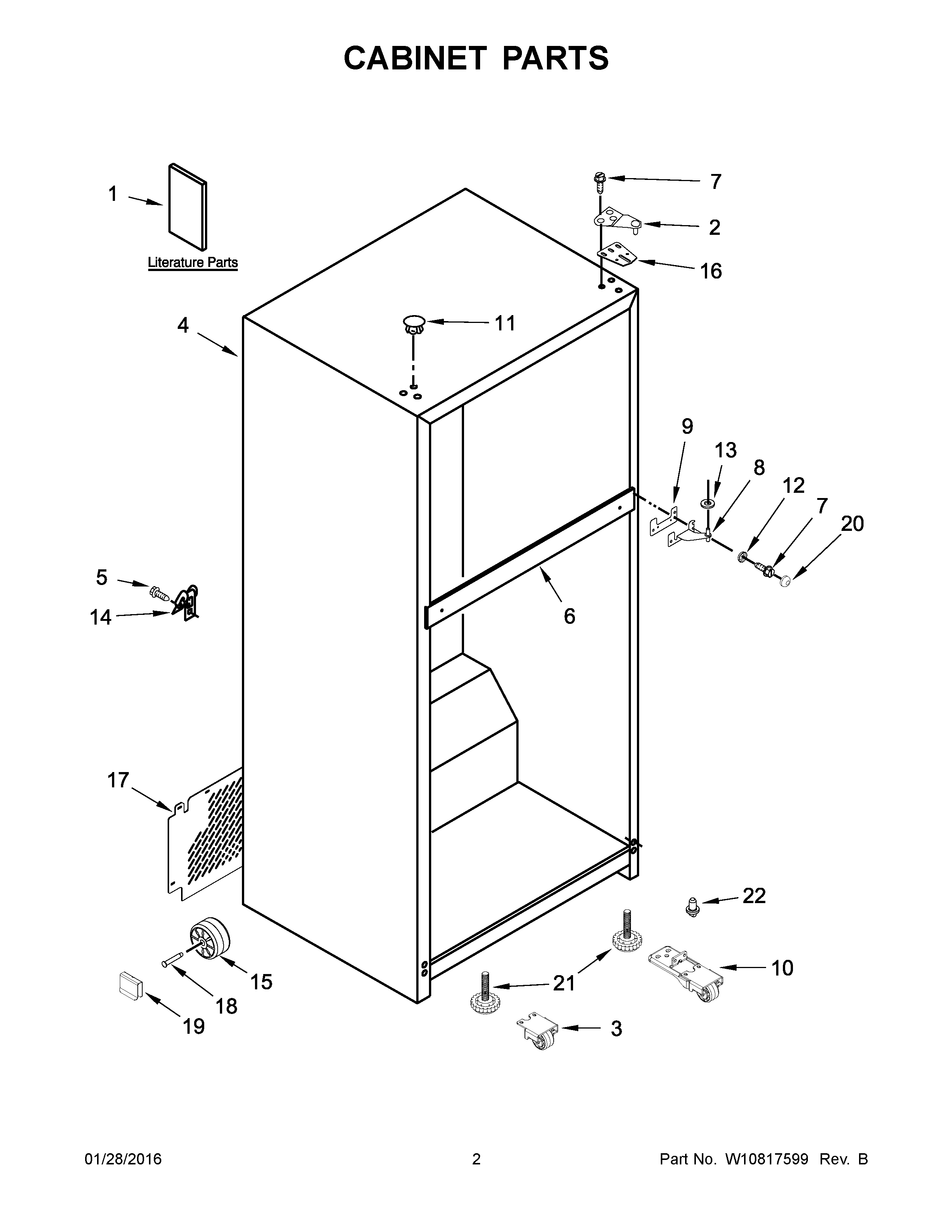

ART308FFDW01 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10684125
1A	MAY W10684124
1	MAY W10770168
2	MAY 2261963
3	ASSEMBLY, ROLLER
5	MAY 489442
6	LINER (NOT A SERVICEABLE PART)
7	MAY 489497
8	MAY 2254618
9	MAY 2183852
10	LOWER HINGE AND ROLLER ASSEMBLY
11	MAY W10520304
11B	HOLE PLUG (GREY)
11A	HOLE PLUG (BLACK)
12	CAP, WASHER DOME
13	WASHER, PLASTIC
14	MAY 549193
15	MAY W10475495
16	SHIM, TOP HINGE
17	COVER, UNIT
18	Screw
19	CLIP, ROLLER
20B	CAP, DOME (GREY)
20	CAP, DOME (WHITE)
20A	CAP, DOME (BLACK)
21	LEVELER
22	HINGE PIN
