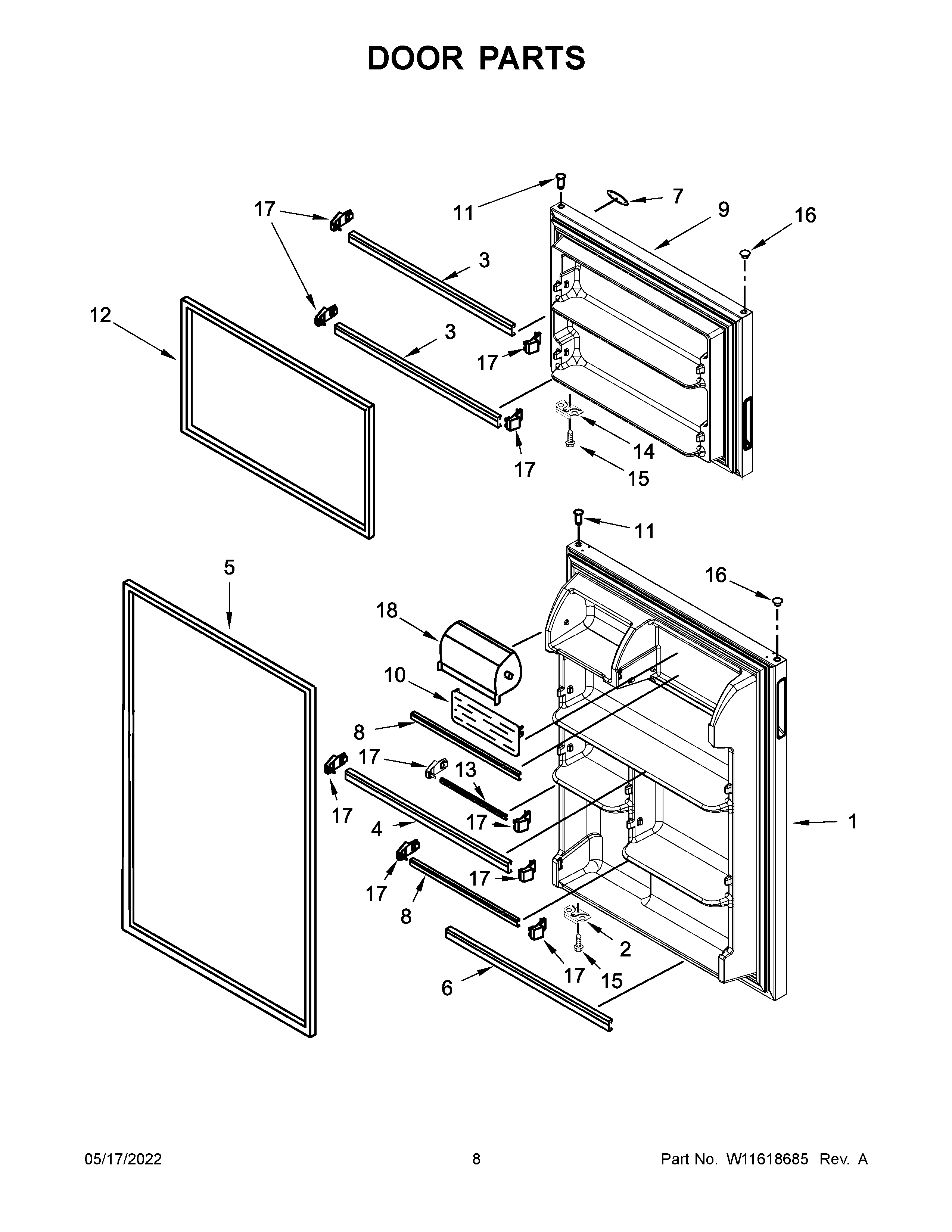

ART308FFDW10 05 – DOOR PARTS

ART308FFDW10 05 – DOOR PARTS

Written by

in

ART308FFDW10 05 – DOOR PARTS

Products

PositionProduct
1BLW10680727 Whirlpool Refrigerator Door FIP
1ALW10680725 Whirlpool Refrigerator Door FIP
1LW10680726 Whirlpool Refrigerator FIP Door
2W11402852 Whirlpool Refrigerator Bracket
3W11126055 Whirlpool Refrigerator Door Trim
4W11170805 Whirlpool Refrigerator Door Trim
5AW11240749 Whirlpool Refrigerator Door Gasket
5W10838574 Whirlpool Door Gasket
5BGASKET-DOR
6W11097831 Whirlpool Refrigerator Door Trim
7AW11318226 Whirlpool Refrigerator Nameplate
7BW11182143 Whirlpool Microwave Nameplate
7W11428492 Whirlpool Refrigerator Nameplate
8W11129820 Whirlpool Refrigerator Door Trim
9LW10680729 Whirlpool Refrigerator Door FIP
9ALW10680728 Whirlpool Refrigerator Door FIP
9BLW10680730 Whirlpool Refrigerator Door FIP
10WP2188234 Whirlpool Shelf
11WP2183003 Whirlpool Thimble
12BGASKET DOOR FC GREY
12AW11229610 Whirlpool Refrigerator Door Gasket
12W10861499 Whirlpool Door Gasket
13W11106290 Whirlpool Refrigerator Door Trim
14W11745278 Whirlpool Bracket
15WP488921 Whirlpool Refrigerator Screw
16AWP2212651 Whirlpool Refrigerator Button Plug
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16BPLUG, HINGE SLEEVE (GREY)
17WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18WP2218113 Whirlpool Dairy Door
