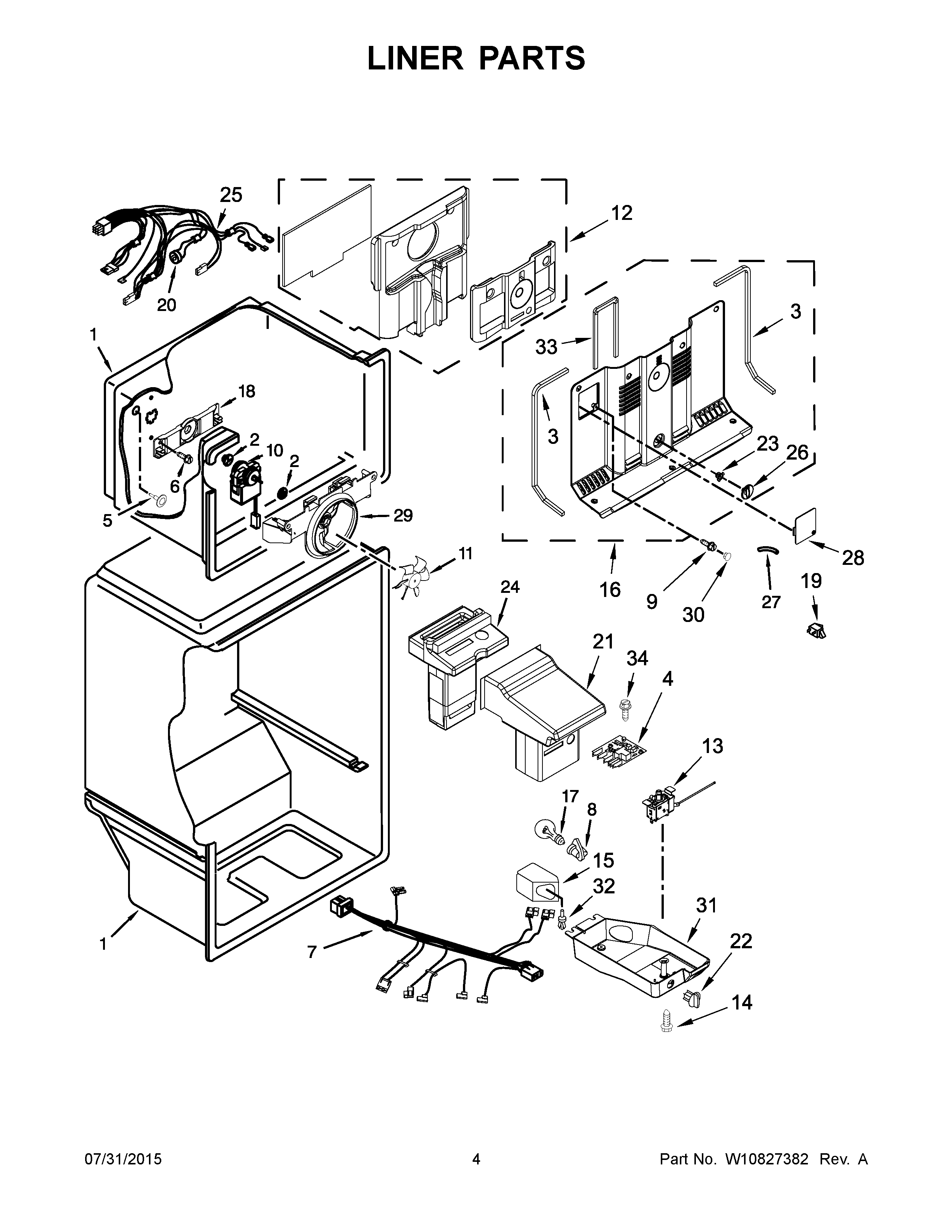

ART316TFDW01 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY W10579698
4	TIMER, DEFROST
5	MAY 941839
6	Screw
7	MAY W10578836
8	Socket, Light
9	MAY W10720456
10	MAY 2315539
11	MAY 2200509
12	MAY W10716213
13	MAY W10511937
14	MAY 489174
15	MAY 9791702
16	MAY W10573325
17	BULB, LIGHT
18	Bracket, Fan Back
19	MAY 1118894
20	DEFROST, BI-METAL
21	MAY W10570941
22	MAY 2202885
23	MAY W10169456
24	MAY W10570939
25	ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-METAL DEFROST)
26	KNOB, AIR CONTROL
27	MAY 1118680
28	MAY W10636223
29	MAY W10321162
30	COVER, SCREW
31	MAY W10648656
32	Rivet
33	MAY W10579707
34	Screw
