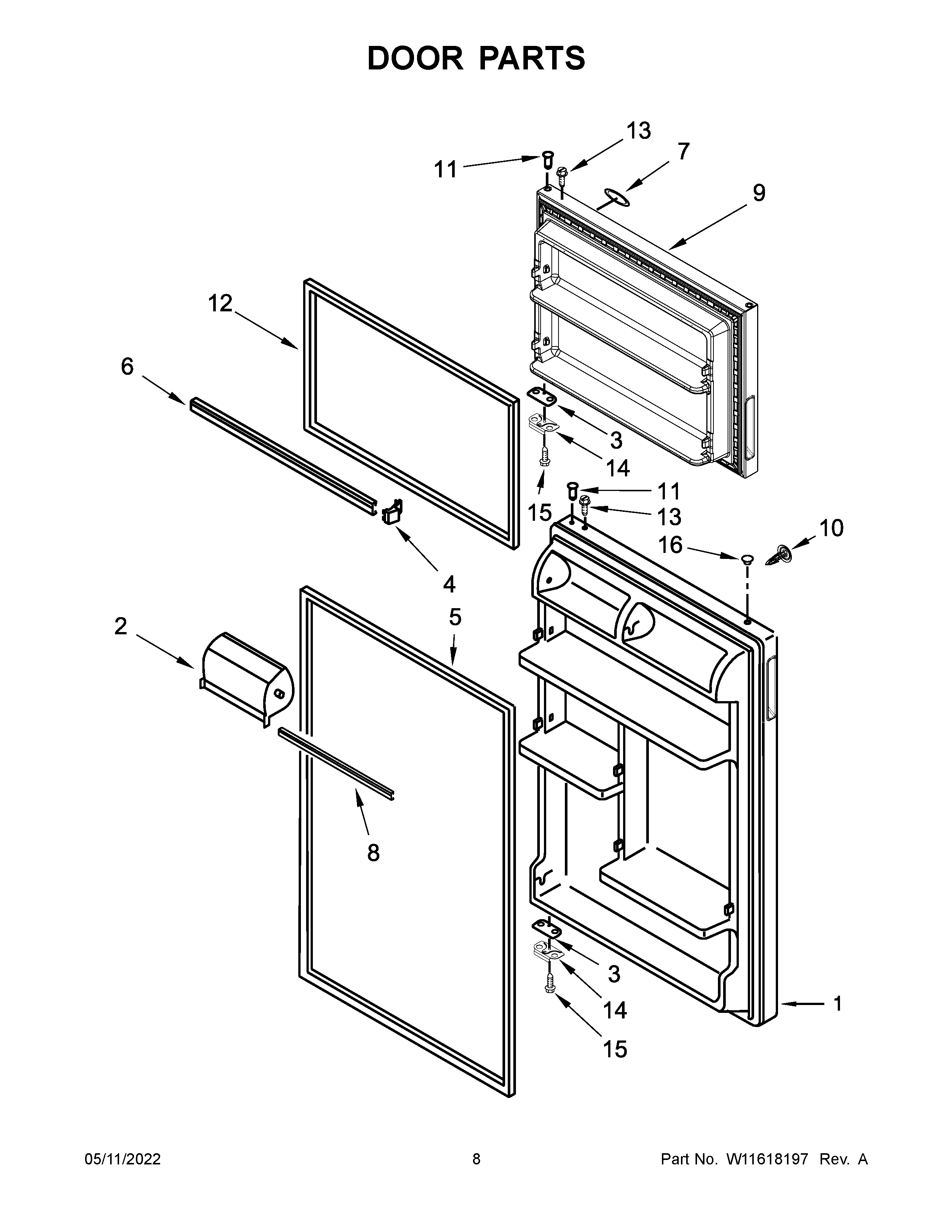

ART316TFDW02 05 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (WHITE)
2DOOR-COMP
3WP2258681W Whirlpool Refrigerator Shim
4WP2156003 Whirlpool Refrigerator Door Shelf End Cap
52319266W Whirlpool Refrigerator FIP Gasket
6WP2266727 Whirlpool Refrigerator Door Trim
7W11428492 Whirlpool Refrigerator Nameplate
8W11129820 Whirlpool Refrigerator Door Trim
9FREEZER DOOR (INCLUDES DOOR GASKET) (WHITE)
10W10830984 Whirlpool Handle Plug
11WP2183003 Whirlpool Thimble
12GASKET-FIP
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15WP488921 Whirlpool Refrigerator Screw
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
