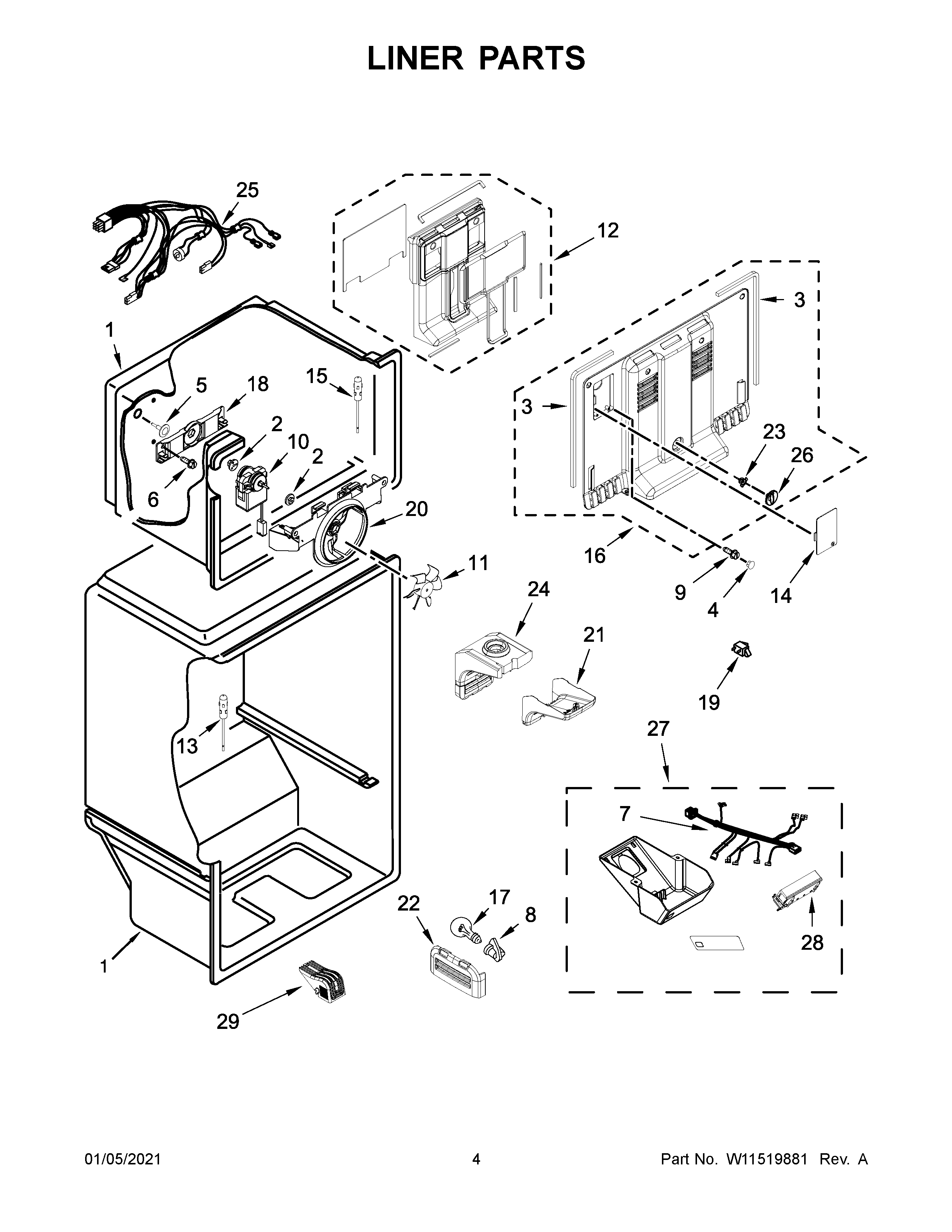

ART318FFDB07 03 – LINER PARTS

ART318FFDB07 03 – LINER PARTS

Written by

in

ART318FFDB07 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3W10849448 Whirlpool Refrigerator Gasket
4W10854527 Whirlpool Refrigerator Cover
5WP941839 Whirlpool Refrigerator Button Plug
6WP488163 Whirlpool Refrigerator Screw
7W11436564 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WP489474 Whirlpool Refrigerator Screw
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10919804 Whirlpool Refrigerator Air Duct
13THERMISTOR
14W10677275 Whirlpool Refrigerator Cover
15WPW10384183 Whirlpool Thermistor
16W11024683 Whirlpool Refrigerator Evaporator Cover
17W11216993 Whirlpool Refrigerator Light Bulb
182254454 Whirlpool Refrigerator Bracket
19W11384469 Whirlpool Door Switch
20W10850162 Whirlpool Refrigerator Orifice
21W11256504 Whirlpool Refrigerator Cover
22W10638176 Whirlpool Refrigerator Grille
23W11244470 Whirlpool Refrigerator Control
24W10861170 Whirlpool Refrigerator Diffuser
25W11551368 Whirlpool Refrigerator Wire Harness
26W11026417 Whirlpool Refrigerator Air Damper
27W11352623 Whirlpool Refrigerator Control Box
28W11436574 Whirlpool Microwave Electronic Control Board
29W11512421 Whirlpool Refrigerator Light Lens
