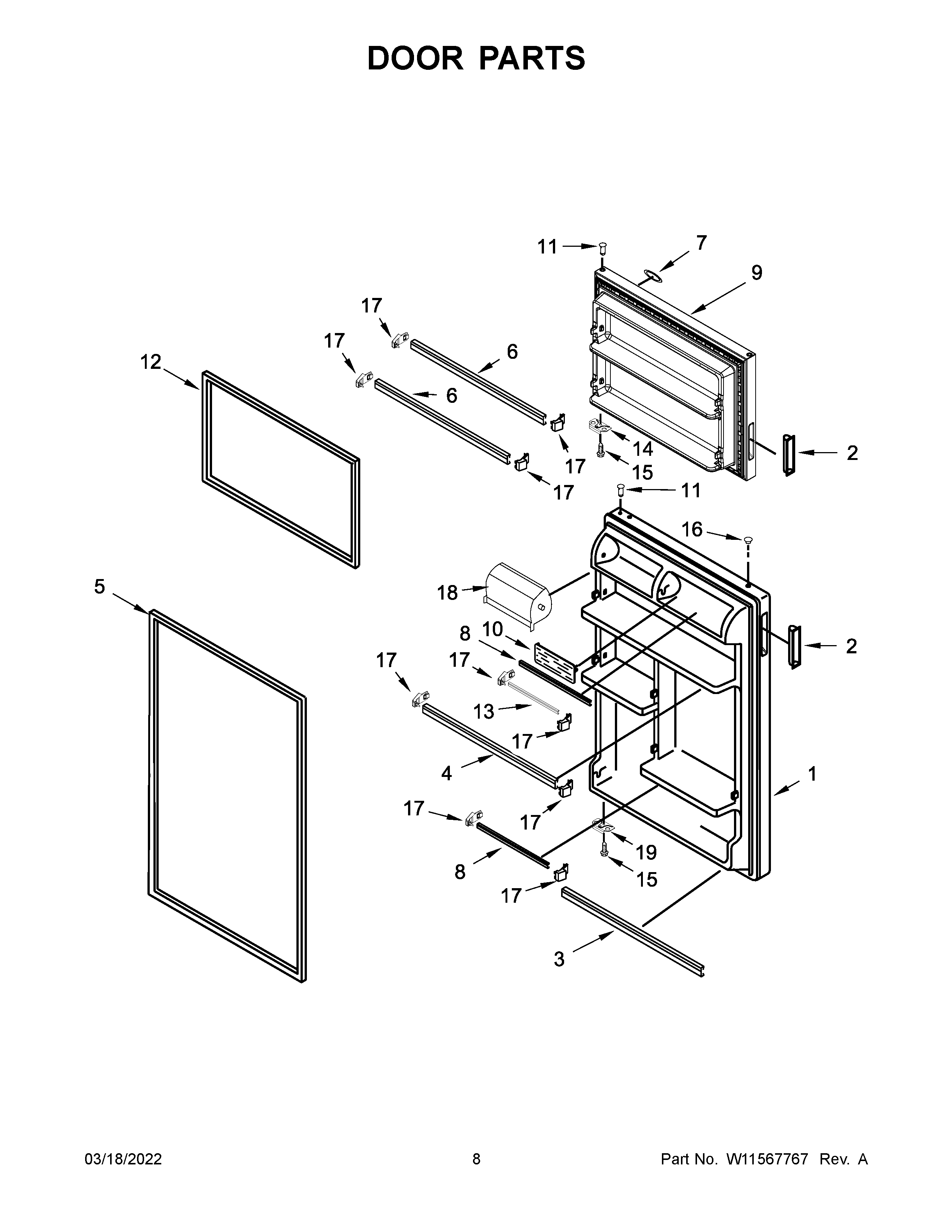

ART318FFDB08 05 – DOOR PARTS

Products

Position	Product
1B	LW10798950 Whirlpool Refrigerator Door FIP
1A	LW10680725 Whirlpool Refrigerator Door FIP
1	LW10680726 Whirlpool Refrigerator FIP Door
2	W10352523 Whirlpool Refrigerator Handle
2A	HANDLE, CUP (BLACK)
2B	HANDLE, CUP (GREY)
3	W11126055 Whirlpool Refrigerator Door Trim
4	W11170805 Whirlpool Refrigerator Door Trim
5A	W11240749 Whirlpool Refrigerator Door Gasket
5B	GASKET-DOR
5	W10838574 Whirlpool Door Gasket
6	W11097831 Whirlpool Refrigerator Door Trim
7	W11428492 Whirlpool Refrigerator Nameplate
7B	W11182143 Whirlpool Microwave Nameplate
7A	W11318226 Whirlpool Refrigerator Nameplate
8	W11129820 Whirlpool Refrigerator Door Trim
9	LW10680729 Whirlpool Refrigerator Door FIP
9A	LW10680728 Whirlpool Refrigerator Door FIP
9B	LW10798951 Whirlpool Refrigerator Door FIP
10	WP2188234 Whirlpool Shelf
11	WP2183003 Whirlpool Thimble
12	W10861499 Whirlpool Door Gasket
12A	W11229610 Whirlpool Refrigerator Door Gasket
12B	GASKET DOOR FC GREY
13	W11106290 Whirlpool Refrigerator Door Trim
14	W11745278 Whirlpool Bracket
15	WP488921 Whirlpool Refrigerator Screw
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16A	WP2212651 Whirlpool Refrigerator Button Plug
16B	PLUG, HINGE SLEEVE (GREY)
17	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18	WP2218113 Whirlpool Dairy Door
19	W11402852 Whirlpool Refrigerator Bracket
