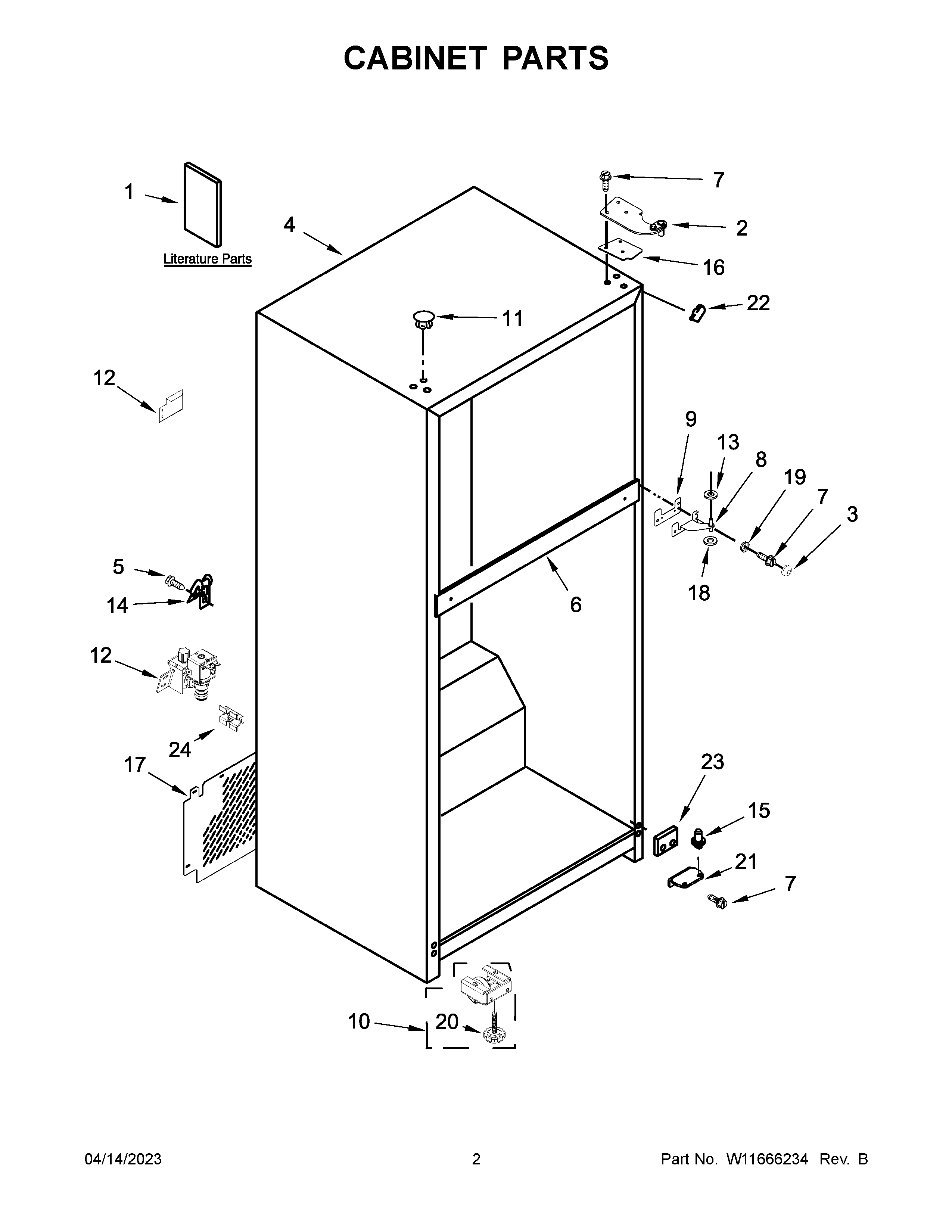

ARTX3028PW00 02 – CABINET PARTSadmin2025-04-26T12:10:04+00:00ARTX3028PW00 02 – CABINET PARTS ProductsPositionProduct1TECH SHEET1AUSE AND CARE GUIDE1BENERGY GUIDE2WPW10300065 Whirlpool Refrigerator Door Hinge3AW10853677 Whirlpool Refrigerator Screw Cap3W10846529 Whirlpool Refrigerator Screw Cap5WP489442 Whirlpool Refrigerator Screw6CABINET (NOT A SERVICEABLE PART)7WP489497 Whirlpool Screw8WP2166037 Whirlpool Refrigerator Door Hinge9A2215385 Whirlpool Refrigerator Shim92166043 Whirlpool Refrigerator Shim10WPW10142530 Whirlpool Refrigerator Cabinet Roller11AWPW10520305 Whirlpool Refrigerator Button Plug11WPW10520304 Whirlpool Refrigerator Button Plug12ACCESS COVER, VALVE13WP489467 Whirlpool Hinge Shim14W11234470 Whirlpool Refrigerator Clamp15W11026307 Whirlpool Refrigerator Hinge Pin16W10883637 Whirlpool Refrigerator Hinge Shim17W11307292 Whirlpool Refrigerator Unit Cover18WP487576 Whirlpool Washer19W10847959 Whirlpool Refrigerator Washer20WPW10133299 Whirlpool Refrigerator Screw21WP2325482 Whirlpool Bottom Hinge22W10859322 Whirlpool Refrigerator Filler22AW11500943 Whirlpool Refrigerator Filler23WP2201567 Whirlpool Hinge Shim24SPACER, BACK
