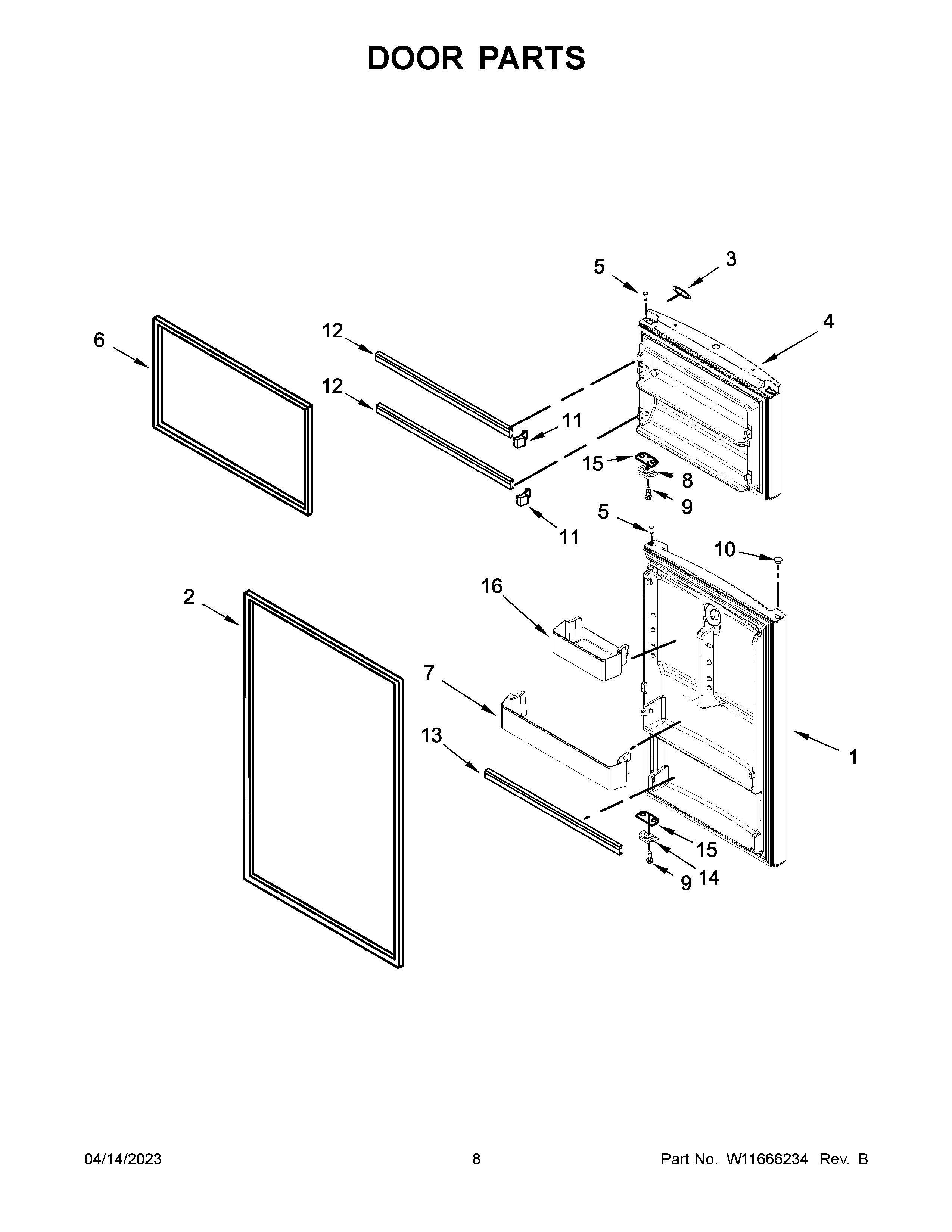

ARTX3028PW00 05 – DOOR PARTS

Products

Position	Product
1	W11645694 Whirlpool Door FIP
1A	REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 2) (BLACK)
2A	2319266B Whirlpool Refrigerator Gasket FIP
2	2319266W Whirlpool Refrigerator FIP Gasket
3	W11428492 Whirlpool Refrigerator Nameplate
4	FREEZER DOOR (INCLUDES ILLUSTRATION 6) (WHITE)
4A	FREEZER DOOR (INCLUDES ILLUSTRATION 6) (BLACK)
5	THIMBLE
5A	W11189115 Whirlpool Refrigerator Thimble
6A	WP2319263B Whirlpool Refrigerator Black Door Gasket
6	GASKET-FIP
7	W11230940 Whirlpool Refrigerator Door Shelf Rail
8	W11745278 Whirlpool Bracket
9	WP488921 Whirlpool Refrigerator Screw
10	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
10A	WP2212651 Whirlpool Refrigerator Button Plug
11	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
12	WP2266727 Whirlpool Refrigerator Door Trim
13	WPW10234241 Whirlpool Door Shelf Trim
14	W10492012 Whirlpool Refrigerator Bracket
15	WP2258681W Whirlpool Refrigerator Shim
16	W11190821 Whirlpool Refrigerator Bin
