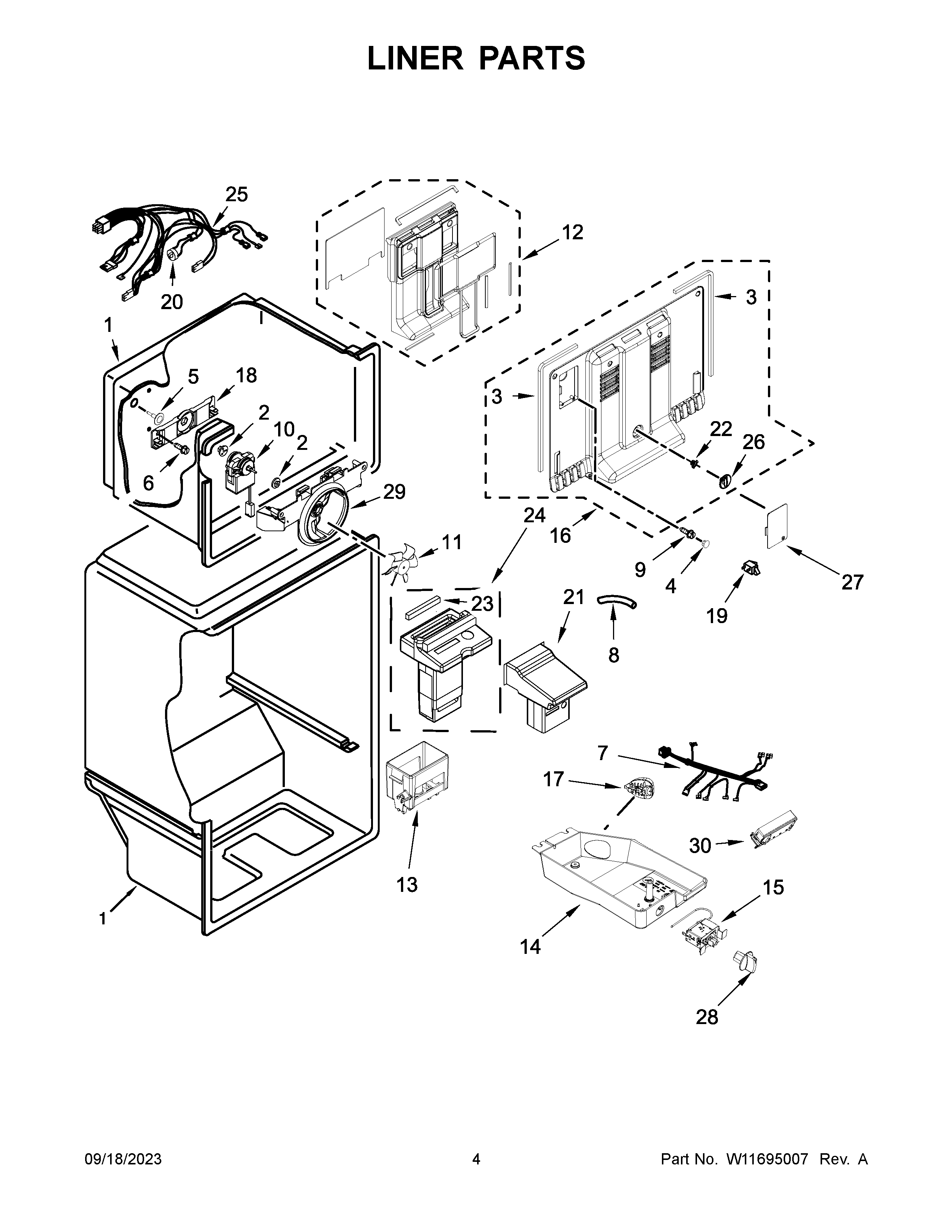

ARTX3028PW01 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT SERVICED)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10579698 Whirlpool Refrigerator Gasket
4	W10854527 Whirlpool Refrigerator Cover
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	WIRE ASSEMBLY, CONTROL BOX
8	WP2196003 Whirlpool Refrigerator Bar Riser
9	W11544659 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W11666272 Whirlpool Air Duct
13	W10570480 Whirlpool Cover
14	ASSEMBLY, CONTROL BOX
15	W11609823 Whirlpool Thermostat
16	W11634632 Whirlpool Evaporator Cover
17	MODULE
18	2254454 Whirlpool Refrigerator Bracket
19	W11727836 Whirlpool Switch
20	BI-METAL DEFROST (NOT SERVICED)
21	W11208347 Whirlpool Refrigerator Air Duct
22	W10169456 Whirlpool Refrigerator Control
23	W10702120 Whirlpool Refrigerator Gasket
24	ASSEMBLY, AIR DIFFUSER
25	W11577969 Whirlpool Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	COVER, HOLE
28	KNOB, CONTROL
29	W10850162 Whirlpool Refrigerator Orifice
30	W11577965 Whirlpool Defrost Timer
