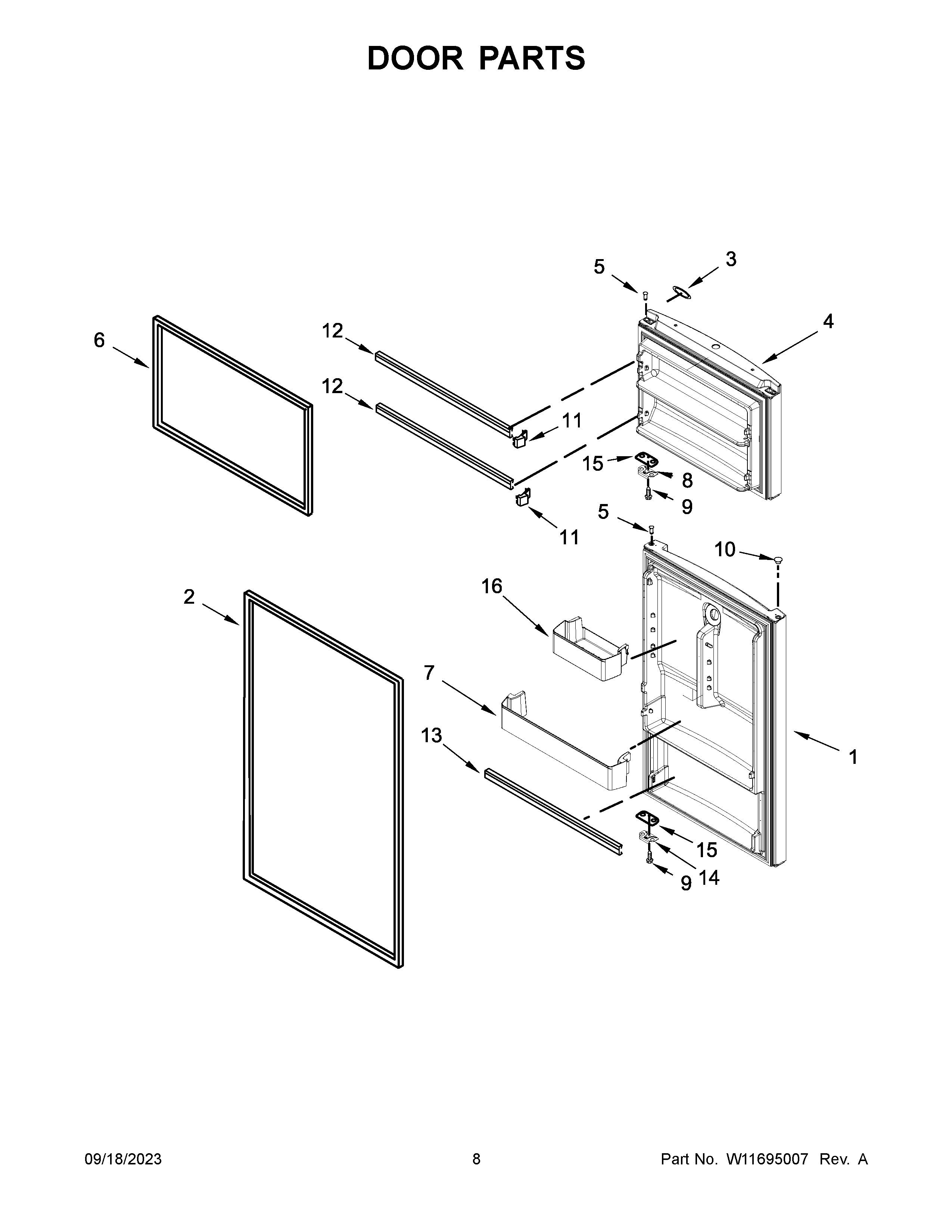

ARTX3028PW01 05 – DOOR PARTS

Products

PositionProduct
1W11645694 Whirlpool Door FIP
22319266W Whirlpool Refrigerator FIP Gasket
3W11428492 Whirlpool Refrigerator Nameplate
4FREEZER DOOR (INCLUDES ILLUSTRATION 6) (WHITE)
5THIMBLE
6GASKET-FIP
7W11230940 Whirlpool Refrigerator Door Shelf Rail
8W11745278 Whirlpool Bracket
9WP488921 Whirlpool Refrigerator Screw
10WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
11WP2156003 Whirlpool Refrigerator Door Shelf End Cap
12WP2266727 Whirlpool Refrigerator Door Trim
13WPW10234241 Whirlpool Door Shelf Trim
14W10492012 Whirlpool Refrigerator Bracket
15WP2258681W Whirlpool Refrigerator Shim
16W11190821 Whirlpool Refrigerator Bin
