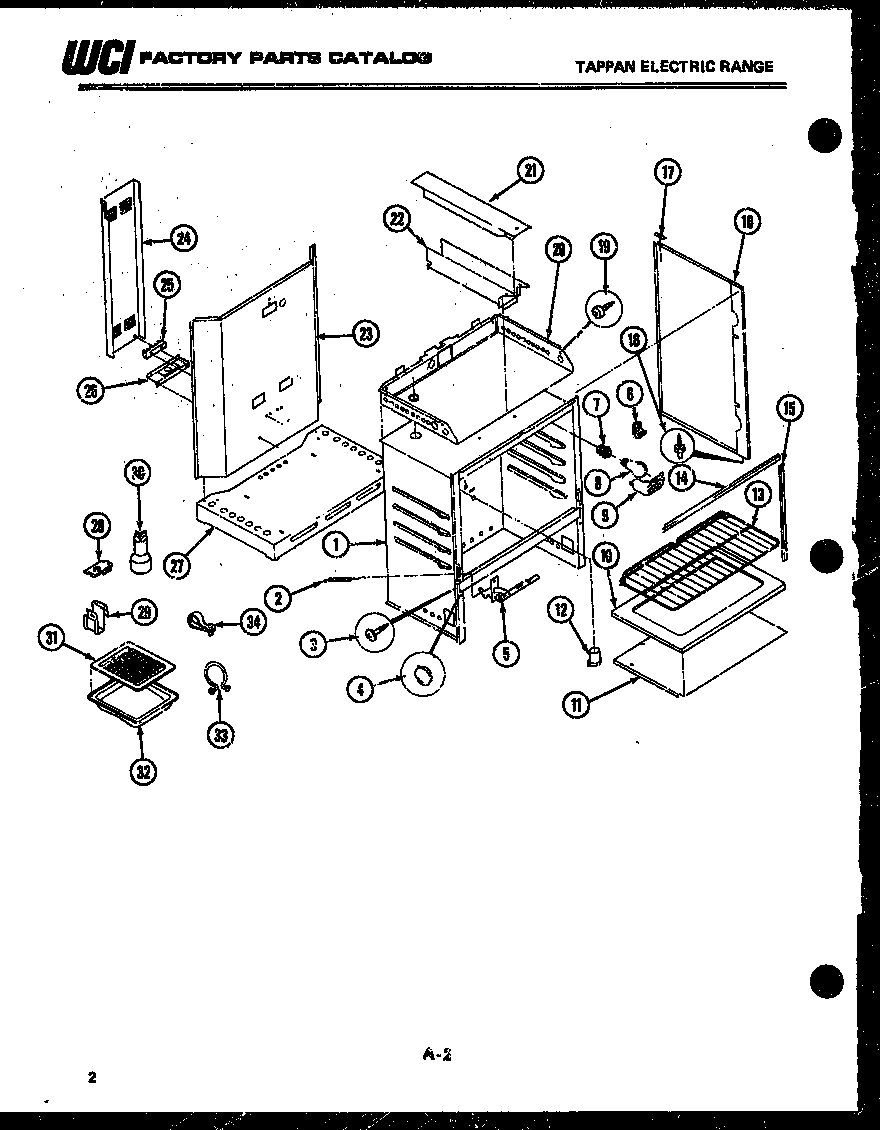

AS139K1K1 02 – BODY PARTS

Products

Position	Product
*57214	TRIM-PNL-VERTICAL (2)
*57206	INSUL. (2 1/2 X 21 X 24) OVEN BOTTOM
*57230	CORD, SUPPLY (NON-ILLUSTRATED)
*57218	WCI 740T365P02
*57241	WCI 508T026P02
*57210	INSUL-WOOL-TOP & SIDES 2 1/2 X 19 X 62“
*57223	WCI 740T365P01
*57253	PAINT-TCH-UP HARVEST WHEAT
*57199	INSUL. (2 1/2 X 18 X 24) OVEN BOTTOM (NON-ILLUSTRATED)
*57237	5303321319 Frigidaire Refrigerator White Touch Up Paint
*57245	PAIN-TCH-UP FRESH AVOCADO
2	SPRING-OVN DR CAM (2)
3	SCREW-SHOULDER 8A X 3/8“ (4)
4	BUTTON-GLIDE 27/64“ D.
5	CAM-OVEN DOOR L
5	CAM-OVEN DOOR R
5	CAM, OVN DR, RH
5	CAM, OVN DR, LH
6	5303284616 Frigidaire Range Bulb Clip Thermostat
7	WCI 662T012P03
8	316538904 Frigidaire Oven Lamp Light
9	SHIELD BULB
9	WCI 655T327F01
9	WCI 655T327F03
10	WCI 058T035F02-89
10	WCI 058T035F02-87
11	WCI 655T119F03-18
12	WCI 750T208W06
12	WCI 750T214W10-08
13	RACK, OVEN (2)
14	SEAL-DR TOP & BTM
14	SEAL-OVEN DOOR (TOP BTM.) (2)
15	SEAL-OVEN DOOR (SIDE)
15	SEAL, DOOR SIDES (2)
16	PNL, BODY, ALMD (2)
16	PNL. BODY (L & R) (HARV. WHEAT) (2)
16	PNL, BODY, WHITE (2)
16	PNL, BODY, WHITE (2)
16	PNL, BODY, ALMD (2)
16	PNL. BODY (L & R) (HARV. WHEAT) (2)
16	PNL. BODY (L&R) (FR. AVOCADO) (2)
16	PNL. BODY (L&R) (FR. AVOCADO) (2)
17	GLIDE, MAIN TOP (2)
18	SCREW, GUIDE (2)
19	WCI 636T083P01
20	WCI 095T029W02-87
20	BURNER BOX (CHAR. GRAY PORC W/ FR.)
21	CHANNEL, CVR
22	CHANNEL, WIRE
23	WCI 021T020F02
23	SCREW 8 X 18 X 1/2“ HEX WSH HD (2)
24	WCI 655T129F01
24	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
25	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
25	WCI 711T048P01
25	5304409888 Frigidaire Oven Terminal Block with Hardware
25	SCREW BRND STRAP
25	SCREW TERM (2) (NON-ILLUSTRATED)
25	(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED)
26	WCI 008T230W03-18
27	WCI 036T050W01-18
28	FASTENER-8AJ (2)
29	FSTNR CABLE CLAMP
30	711T047P93 Frigidaire Oven Terminal
31	INSERT-BROILER PAN (CHAR. GRAY W/ F)
31	WCI 319T011F02-89
31	INSERT-BROILR PAN LOT 1
32	PAN-BROILER (CHAR. GRAY W/ F)
32	PAN-BROILER LOT 1
33	FASTENER-PURSE LOCK
34	CLAMP, CABLE (2)
