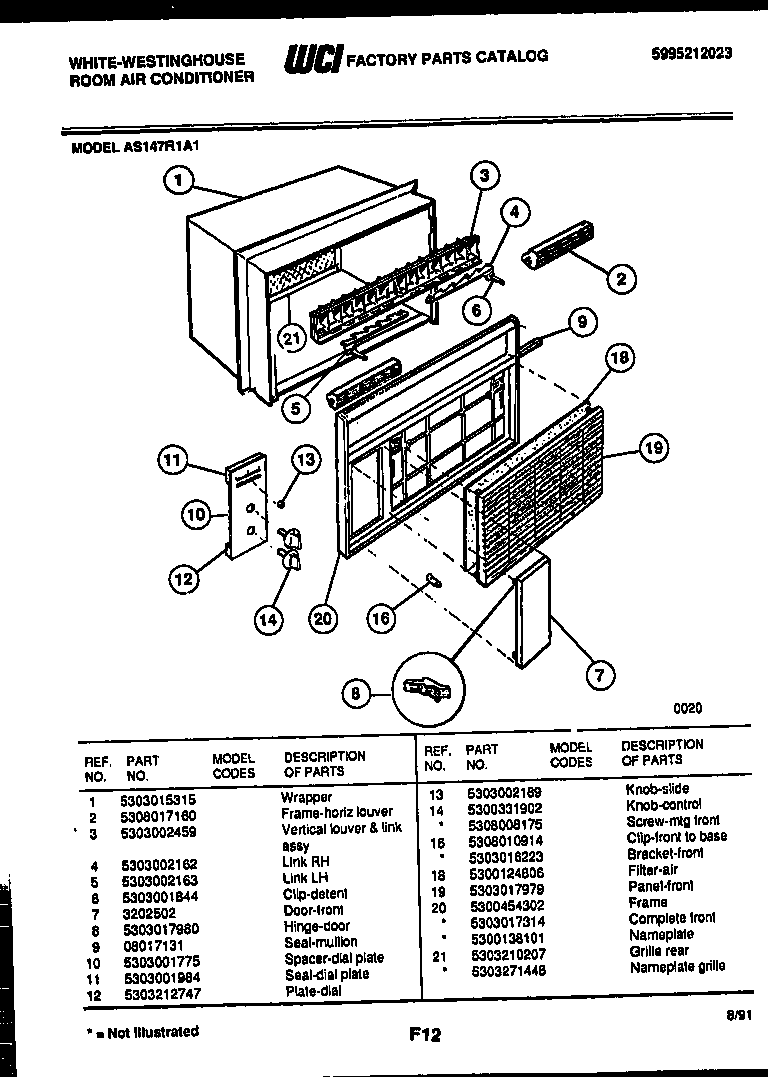

AS147R1A1 02 – CABINET PARTS

Products

Position	Product
*49821	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
1	SHELL-CABINET
2	FRAME-HORIZ. LOUVER
3	WCI 5303002459
4	LINK-VERT LOUVER RH
5	LINK-VERT LOUVER LH
6	WCI 5303001844
7	WCI 3202502
8	HINGE – DOOR
9	WCI 08017131
10	WCI 5303001775
11	WCI 5303001984
12	WCI 5303212747
13	WCI 5303002189
14A	SCREW-FRONT
14	WCI 5300331902
16A	WCI 5303016223
16	CLIP-FRONT TO BASE
18	WCI 5300124806
19	WCI 5303017979
20	WCI 5300454302
20A	WCI 5303017314
20B	WCI 5300138101
21	WCI 5303210207
