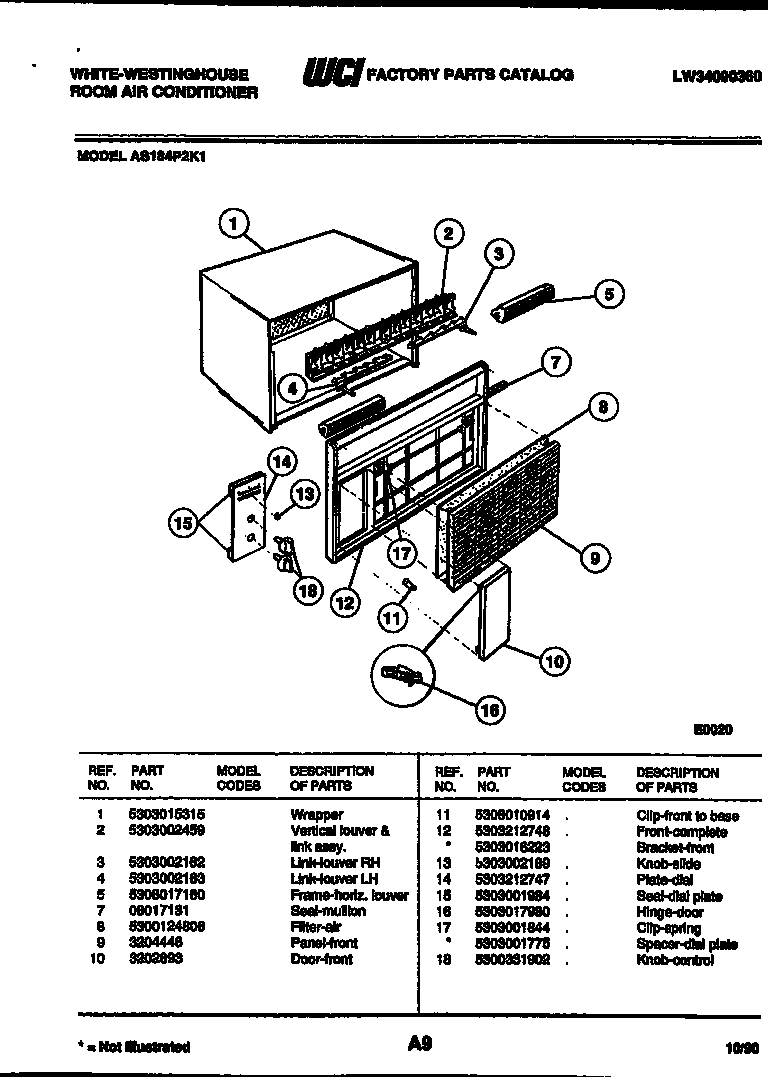

AS184P2K1 02 – CABINET PARTS

AS184P2K1 02 – CABINET PARTS

Written by

in

AS184P2K1 02 – CABINET PARTS

Products

PositionProduct
1SHELL-CABINET
2WCI 5303002459
3LINK-VERT LOUVER RH
4LINK-VERT LOUVER LH
5FRAME-HORIZ. LOUVER
7WCI 08017131
8WCI 5300124806
9WCI 3204446
10DOOR-FRONT
11CLIP-FRONT TO BASE
12AWCI 5303016223
12WCI 5303212748
13WCI 5303002189
14WCI 5303212747
15WCI 5303001984
16HINGE – DOOR
17AWCI 5303001775
17WCI 5303001844
18WCI 5300331902
