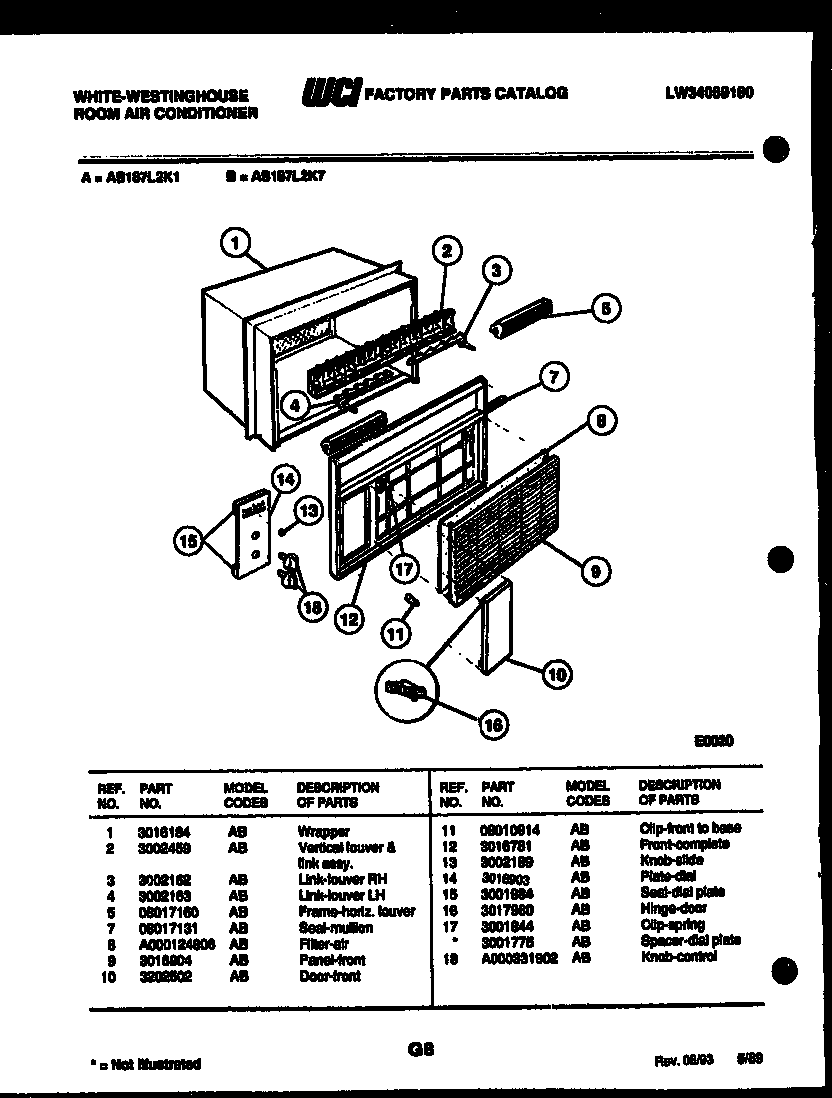

AS187L2K1 02 – CABINET PARTS

Written by

Products

Position	Product
1	WRAPPER
2	FRAME-VERT & LINK ASSY
3	LINK-VERT LOUVER RH
4	LINK-VERT LOUVER LH
5	WCI 08017160
7	WCI 08017131
8	WCI A000124806
9	WCI 3016904
10	WCI 3202502
11	CLIP-FRONT TO BASE
12	WCI 3016781
13	WCI 3002189
14	WCI 3016903
15	SEAL-DIAL PLATE
16	WCI 3017980
17	CLIP-DETENT
17A	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
18	WCI A000331902
