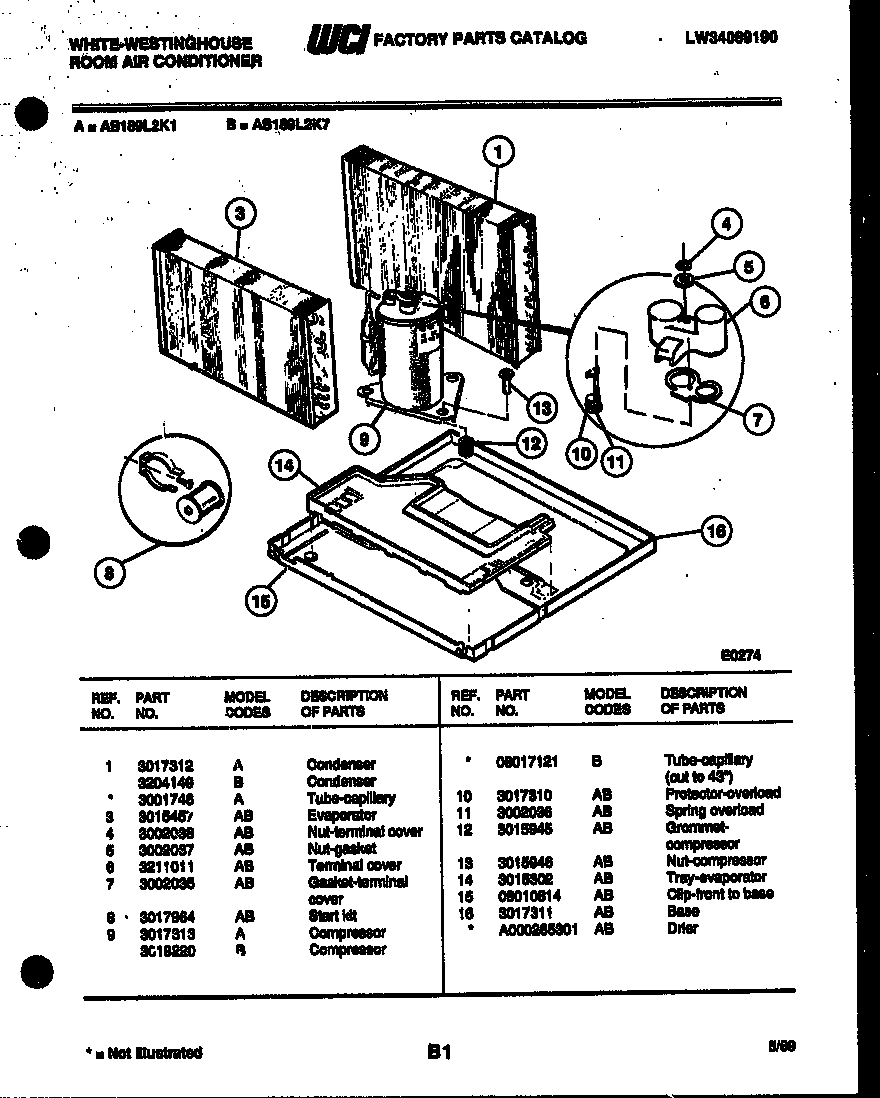

AS189L2K1 05 – SYSTEM PARTS

Written by

Products

Position	Product
*12008	5300265301 Frigidaire Air Conditioner P1 Filter Drier
1	WCI 3017312
1A	CAPILLARY TUBE (CUT TO 40“)
3	WCI 3015457
4	WCI 3002038
5	GASKET-NUT
6	COVER
7	GASKET
8	START KIT
9	WCI 3017313
10	PROTECTOR – OVERLOAD
11	WCI 3002036
12	GROMMET
13	NUT
14	WCI 3015302
15	WCI 08010814
16	WCI 3017311
