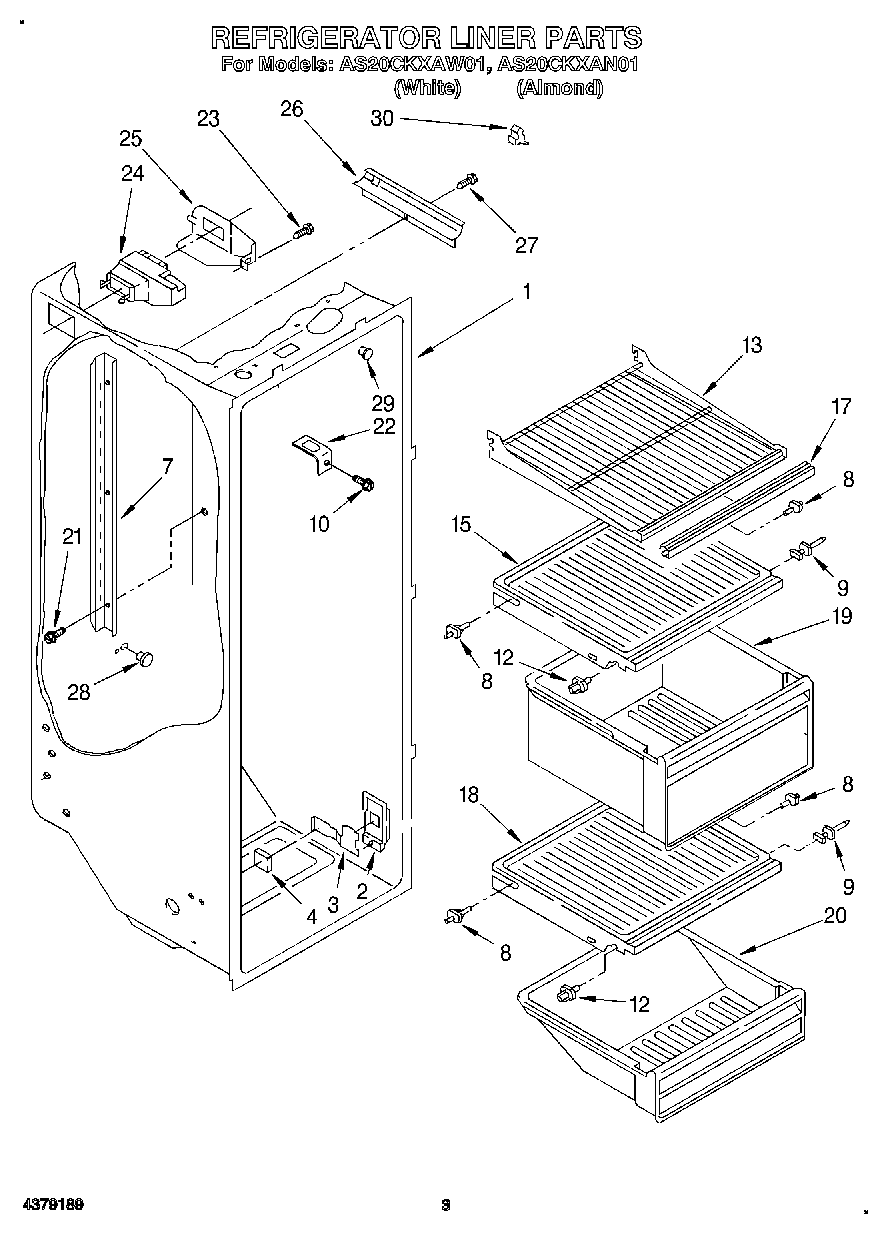

AS20CKXAN01 02 – REFRIGERATOR LINER

AS20CKXAN01 02 – REFRIGERATOR LINER

Written by

in

AS20CKXAN01 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide, Meat Pan Control
4Pad, Foam
7Ladder, Shelf
84388538 Whirlpool Refrigerator Stud Shelf Kit (White)
10WP488488 Whirlpool Refrigerator Screw
12WP2149540 Whirlpool Shelf Support
13Shelf, Cantilever
15Crisper Cover
17Trim, Shelf
18WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
19WP2148279 Whirlpool Refrigerator Crisper Pan
20Pan, Meat
21WP488729 Whirlpool Refrigerator Door Screw
22WP2256085 Whirlpool Refrigerator Retainer
23WP489478 Whirlpool Refrigerator Screw
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
26Cover, Conduit
27W10759522 Whirlpool Screw
28WP941839 Whirlpool Refrigerator Button Plug
29Hole Seal
302215823 Whirlpool Refrigerator Clip
