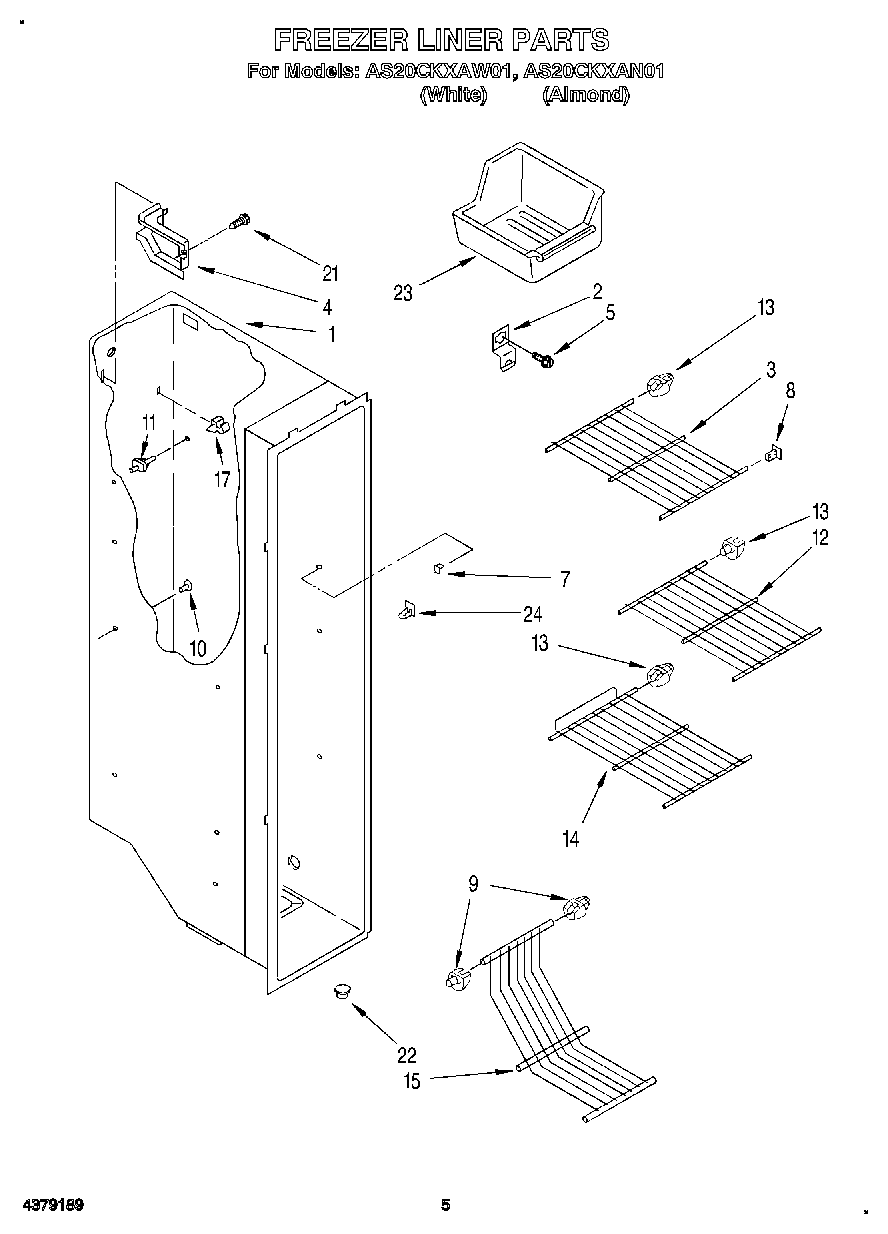

AS20CKXAW01 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Clip, Support (2)
3	Shelf (Small 1)
4	Cover, Wiring
5	WP489478 Whirlpool Refrigerator Screw
7	Stud, Support
8	Stud, Front R.S.
9	819091 Whirlpool Refrigerator Shelf Stud
10	Grommet (8)
11	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12	Shelf
14	Shelf (3)
15	Trivet
17	2215823 Whirlpool Refrigerator Clip
21	WP488729 Whirlpool Refrigerator Door Screw
22	W11566763 Whirlpool Fitting
23	WP841180A Whirlpool Microwave Glass Turntable Tray
24	Stud, Rear R.S.
