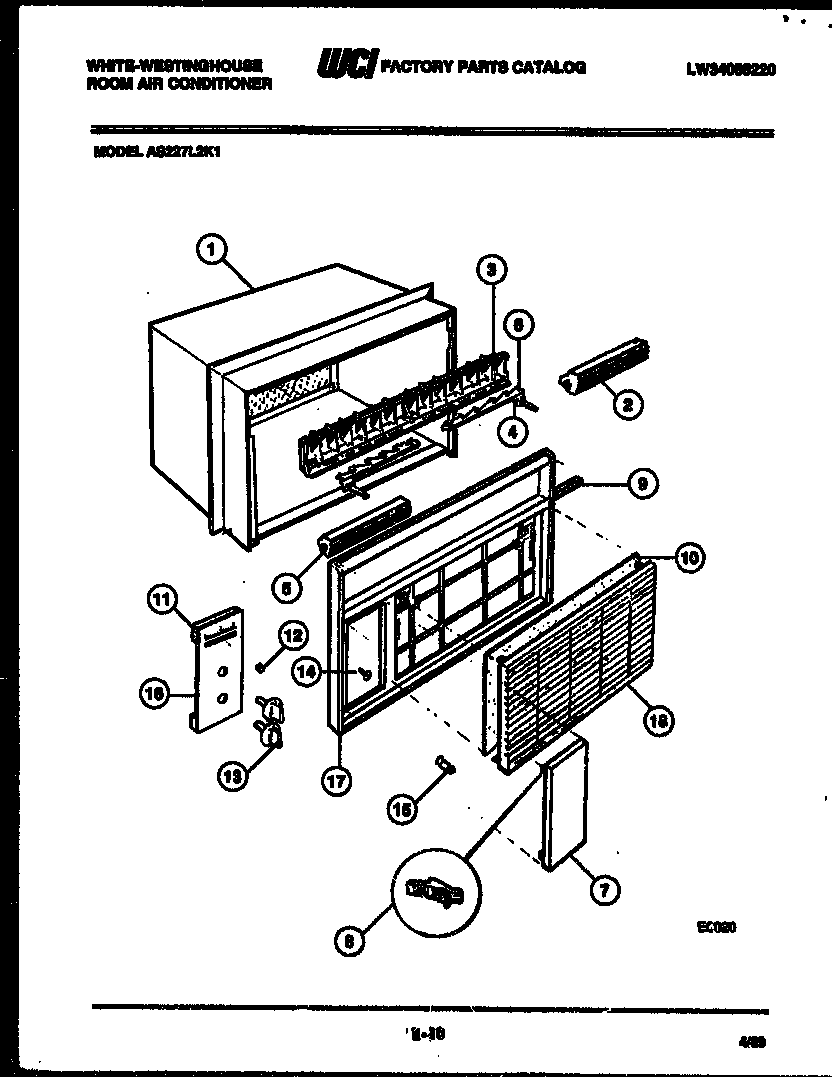

AS227L2K1 02 – CABINET PARTS

Written by

Products

Position	Product
1	WRAPPER
2	FRAME-HORIZ LOUVER
3	WCI A467003
4	WCI A362101
5	LINK-LOUVER LH
6	CLIP-LINK (NON-ILLUSTRATED)
7	WCI A453809
8	WCI A344501
9	WCI A301158
10A	SPACER-DIAL PLATE (NON-ILLUSTRATED)
10	WCI A124806
11	WCI A301162
12	WCI A374302
13	KNOB
14	SCREW
15	WCI A121403
15A	BRACKET-FRAME FRONT
16	WCI 3016903
17	WCI 3016981
18	WCI 3016904
