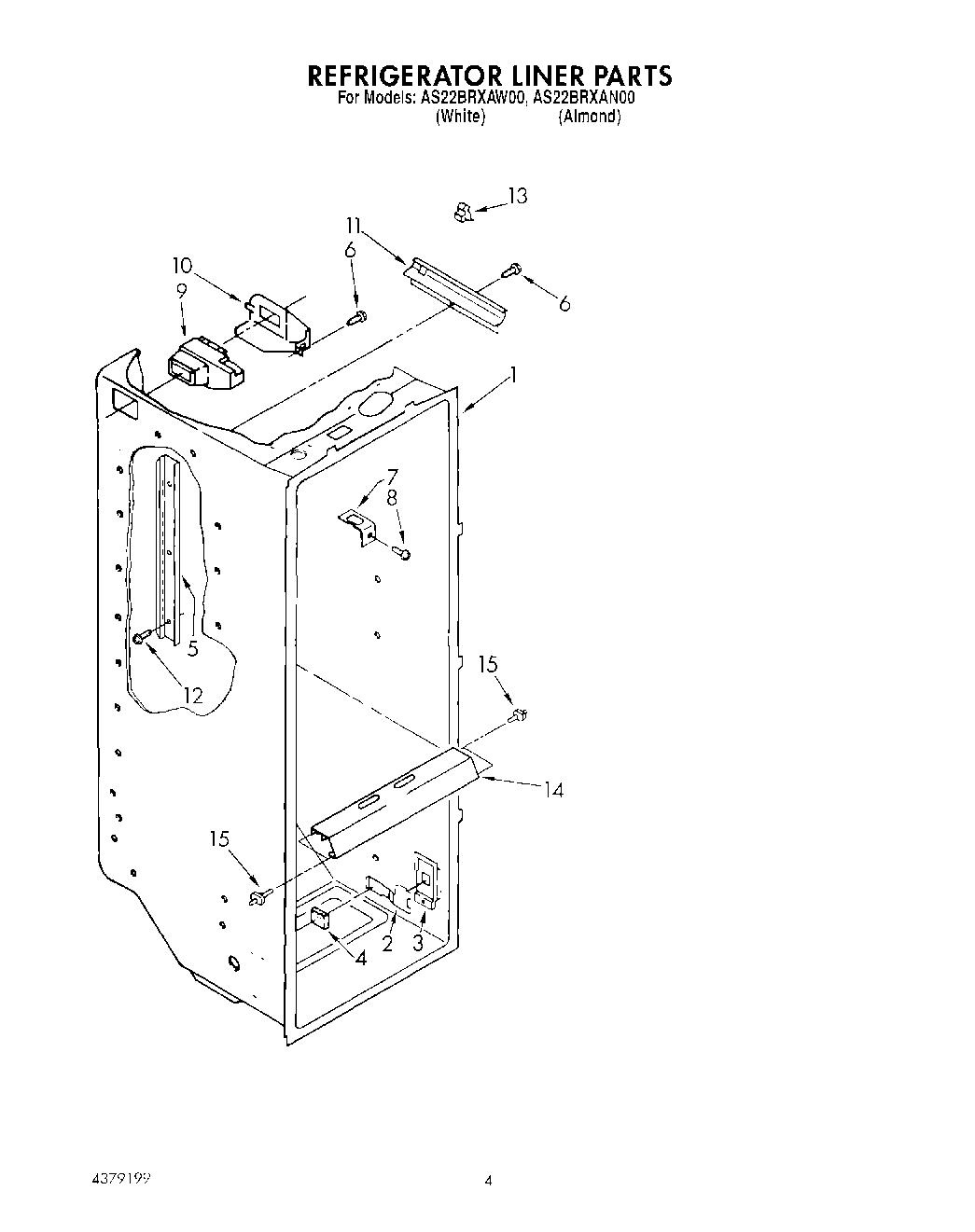

AS22BRXAN00 02 – REFRIGERATOR LINER

AS22BRXAN00 02 – REFRIGERATOR LINER

Written by

in

AS22BRXAN00 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide, Meat Pan Control
4Pad, Foam
5Ladder, Shelf
6W10759522 Whirlpool Screw
7WP2256085 Whirlpool Refrigerator Retainer
8WP488488 Whirlpool Refrigerator Screw
9WPW10151374 Whirlpool Refrigerator Diffuser
102152019 Whirlpool Refrigerator Cover
112150331 Whirlpool Refrigerator Wire Cover
12WP488729 Whirlpool Refrigerator Door Screw
132215823 Whirlpool Refrigerator Clip
14Lens
154388538 Whirlpool Refrigerator Stud Shelf Kit (White)
