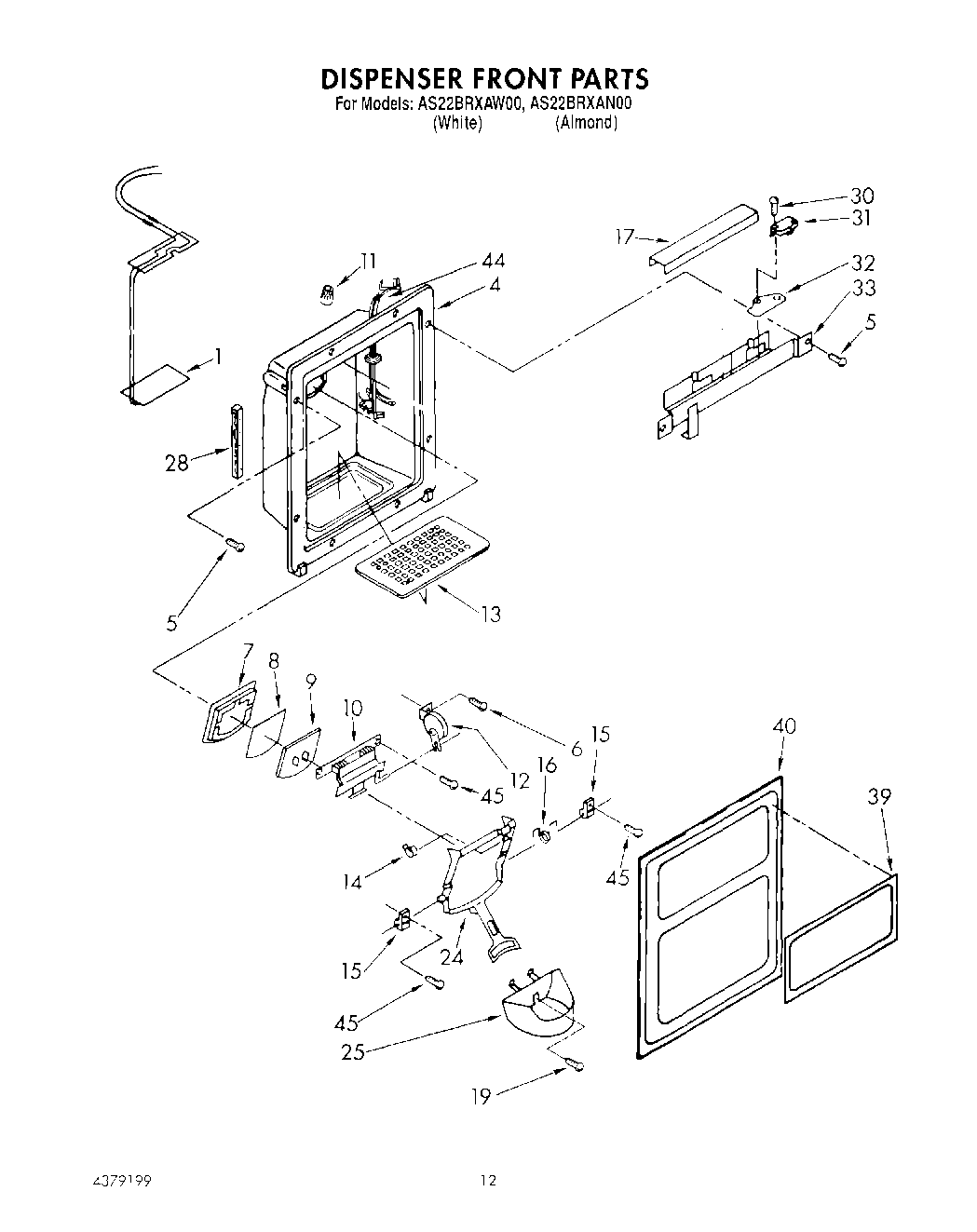

AS22BRXAN00 08 – DISPENSER FRONTadmin2025-04-26T12:13:10+00:00AS22BRXAN00 08 – DISPENSER FRONT
Products
| Position | Product |
|---|
| 1 | Heater, Dispenser |
| 4 | Housing, Dispenser |
| 5 | W11693756 Whirlpool Screw Assembly |
| 6 | Screw, 8-18 x 3/4 |
| 7 | Gasket, Door |
| 8 | Shield, Ice Door |
| 9 | Door, Ice |
| 10 | Door Mechanism Assembly |
| 11 | Wire Connector |
| 12 | WP1120581 Whirlpool Refrigerator Mechanism |
| 13 | Grille, Overflow (Black) |
| 14 | Clip, Bearing (2) |
| 15 | Bearing, Lever (3) |
| 16 | Spring, Lever (2) |
| 17 | Shield, Wiring |
| 19 | Screw |
| 24 | Lever Assembly, Ice Dispenser |
| 25 | Guide, Ice |
| 28 | Seal |
| 30 | Screw, |
| 31 | 814037 Whirlpool Microwave Switch |
| 32 | Insulator, Switch (2) |
| 33 | Bracket, Control |
| 39 | Plaque, Front Cover |
| 40 | Front Cover, Housing (Includes Item 39) |
| 44 | Wiring Assembly, Door |
| 45 | WP3400906 Whirlpool Refrigerator Screw |
