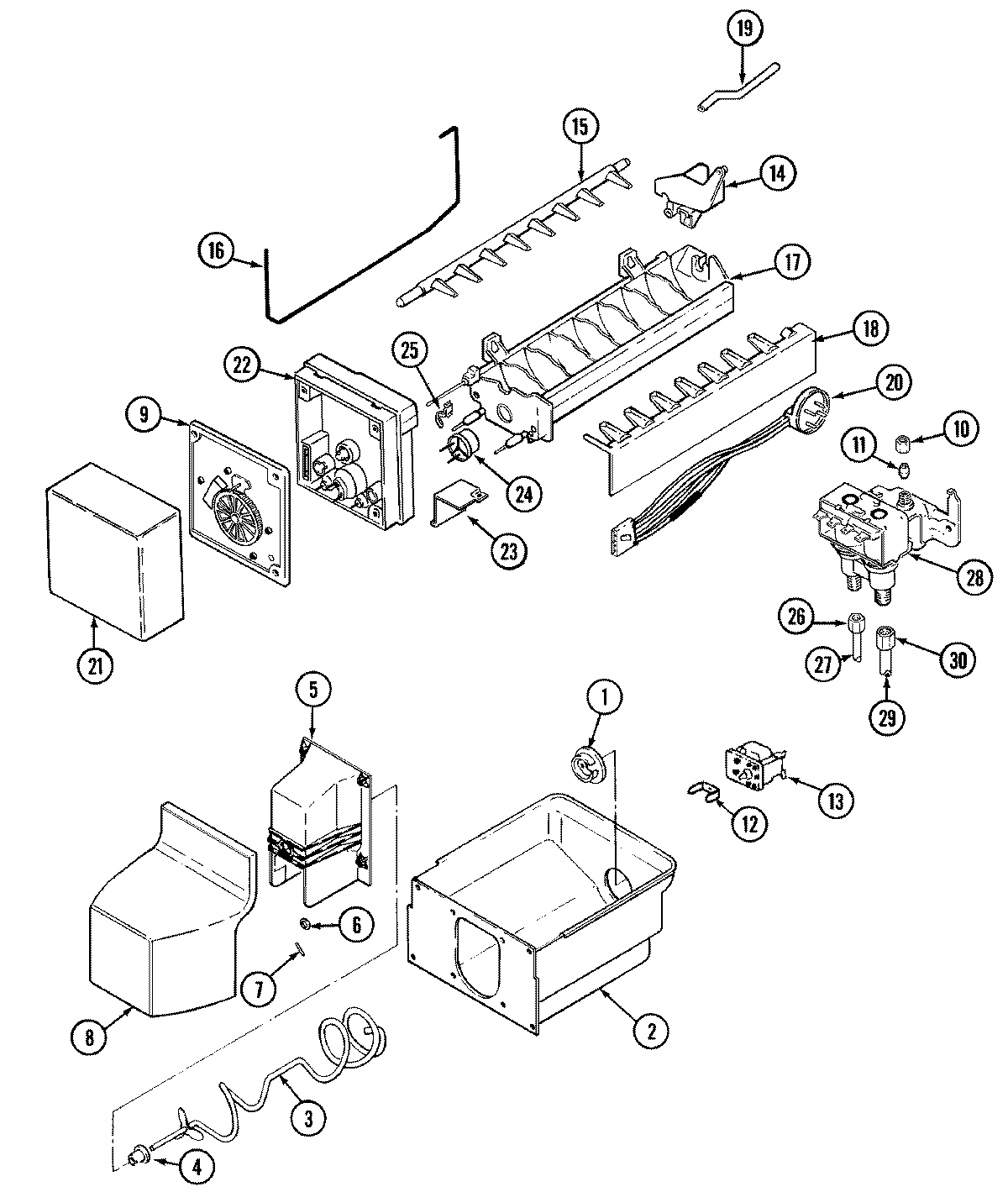

AS22N8DM 06 – ICE MAKER & BIN

Products

Position	Product
1	WP61003336 Whirlpool Refrigerator Drive Ring
2	MAY 67826-1
3	MAY 67833-1
4	MAY 67172-2
5	MAY 67829-1
6	MAY 67834-2
7	MAY 492007-703
8	MAY 69875-31
8	415013-35 Whirlpool Refrigerator Screw
9	MAY 400031-1
9	WP489478 Whirlpool Refrigerator Screw
9	MAY 95109-1
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP63052-2 Whirlpool Refrigerator Impeller
13	12001773 Whirlpool Refrigerator Primary Auger Motor Y Assembly
13	MAY 406026-103
13	MAY 69048-1
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	W11342242 Whirlpool Refrigerator Ice Level Arm
17	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	MAY 67676-1
20	MAY 70076-1
21	MAY 68328-2
22	SCREW
22	WP2195914 Whirlpool Refrigerator Ice Maker Housing
23	BRACKET, MODULE & HEATER
23	MAY 95108-1
24	MAY 95093-1
24	WP627985 Whirlpool Icemaker Cycling Thermostat
25	WP2315522 Whirlpool Refrigerator Clip
26	WP627018 Whirlpool Refrigerator Nut
27	MAY 67579-2
28	MAY 61001021
28	MAY 401018-1
29	MAY 67187-4
30	MAY 69583-2
