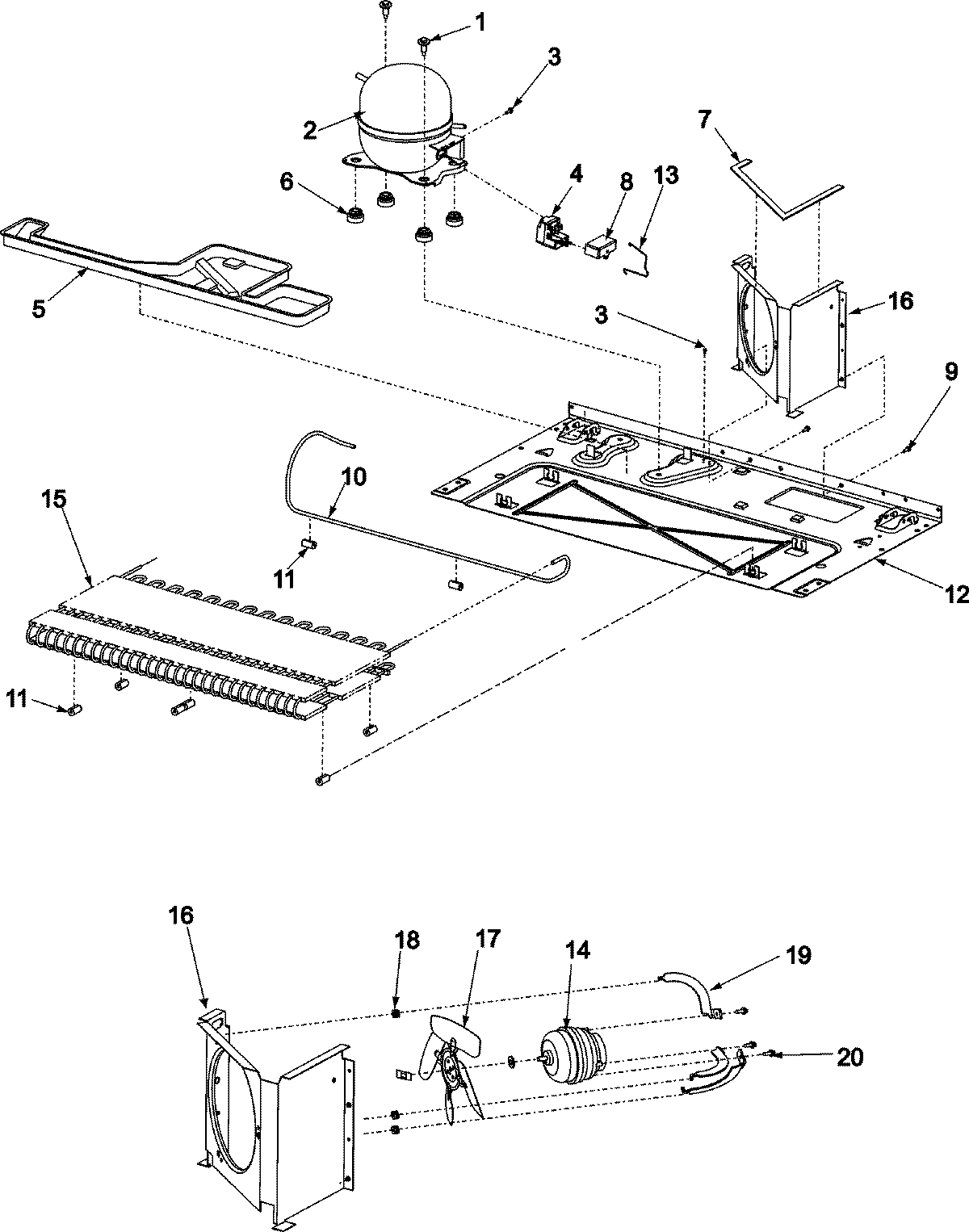

AS2324GEKB 02 – COMPRESSOR

Products

Position	Product
NI	MAY W10133698
NI	MAY 67005153
1	MAY 67003790
2	W10309997 Whirlpool Refrigerator Compressor
2	MAY 67005028
3	MAY M0231604
4	MAY 67004815
5	Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	MAY 67002815
9	MAY M0238616
10	MAY 67004262
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67005268
12	BASEPAN, MACHINE COMPARTMENT
13	MAY 67004687
13	MAY 67007052
14	Motor, Condenser
15	WP67006132 Whirlpool Refrigerator Condenser
15	MAY 67002235
16	SHROUD, CONDENSER FAN
16	MAY 12575306
16	MAY 67005062
17	WP12587601 Whirlpool Refrigerator Condenser Blade
18	GROMMET, BRACKET
19	Bracket, Motor (3)
20	Screw (3)
