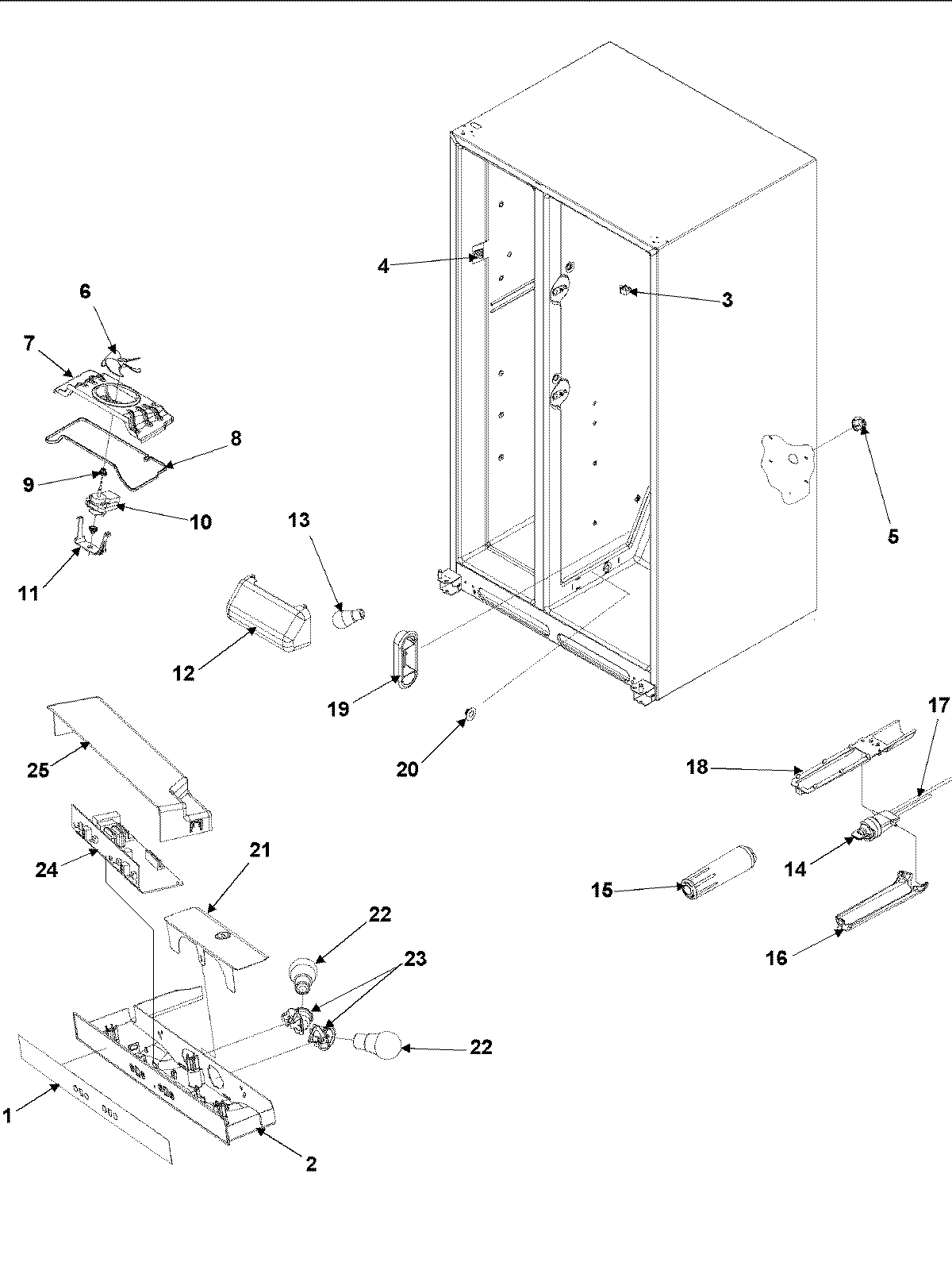

AS2324GEKB 05 – EVAP FAN ASSY AND LIGHTS

AS2324GEKB 05 – EVAP FAN ASSY AND LIGHTS

Written by

in

AS2324GEKB 05 – EVAP FAN ASSY AND LIGHTS

Products

PositionProduct
NI12002355 Whirlpool Refrigerator Thermistor Kit
1MAY 67005338
2MAY 67005306
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
5MAY 67005016
6MAY 12217201
7SHROUD, EVAP
8GASKET, SHROUD
9GROMMET, BRACKET
10MAY 67005023
11WP67005633 Whirlpool Refrigerator Bracket
12MAY 67001507
13Bulb, Light
14MAY 67003146
15MAY 67003640
16WP12568001 Whirlpool Filter Cover
17HEAD, WATER FILTER
17MAY 67004659
18MAY 12688503
19MAY 12634801
20MAY 67003018
21MAY 67005038
22WP67002552 Whirlpool Refrigerator Light Bulb
23Socket, Light (2)
24MAY 67005281
24MAY 67006738
25COVER, CONTROL BOARD
