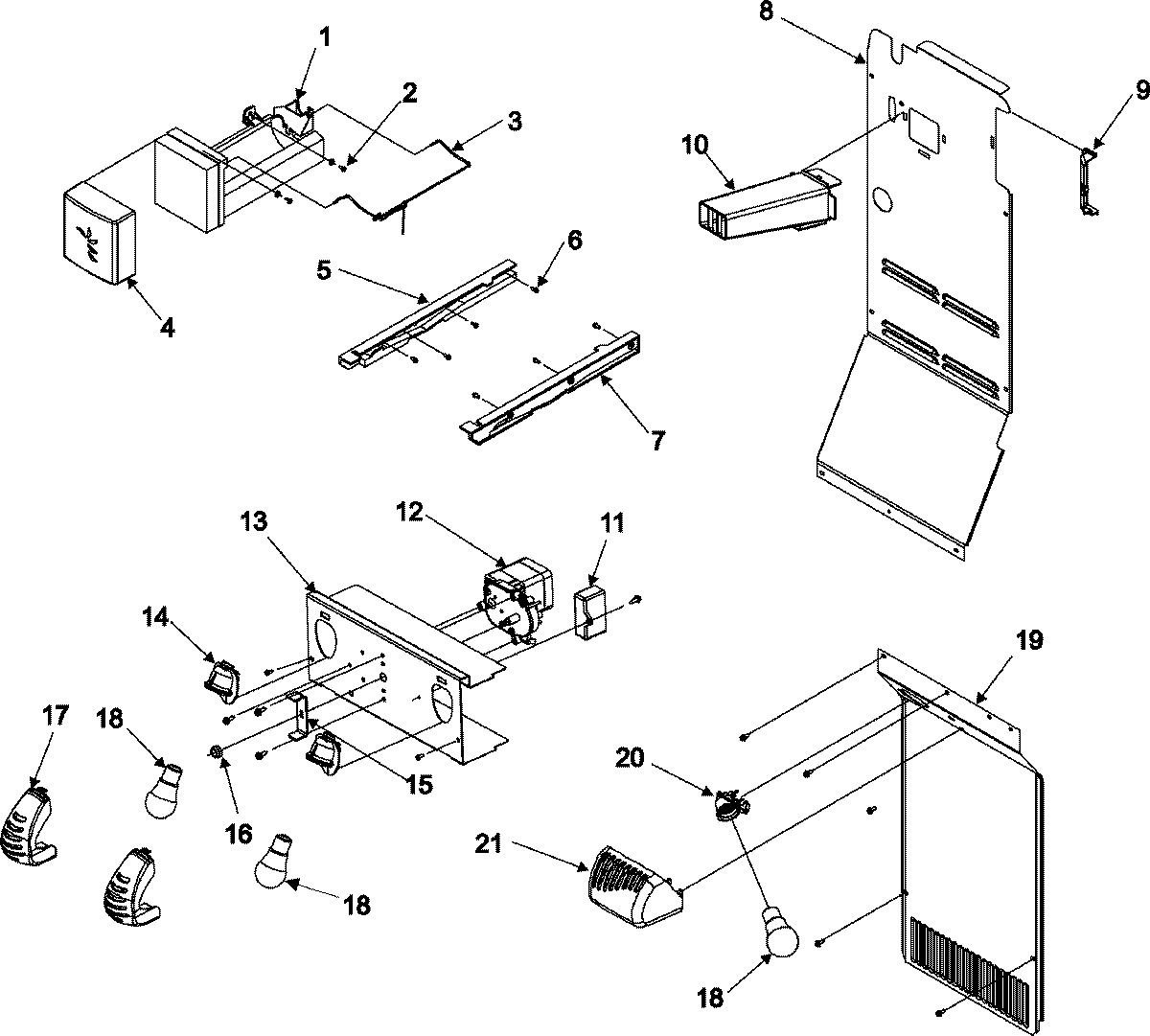

AS2324GEKB 15 – LIGHTS AND ICE MAKER

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	MAY D7846305
2	MAY M0238833
3	MAY 12671401
4	Cover
5	67005375 Whirlpool Refrigerator Glide, Freezer (Left)
6	67006529 Whirlpool Refrigerator Screw
7	MAY 67004323
8	MAY 67004950
9	MAY 12583101
9	MAY M0580205
10	MAY 67003578
11	Capacitor
11	MAY M0226528
12	MAY 10525205
12	MAY 67003224
13	MAY 67004191
13	MAY W10133688
15	MAY 10114901
16	WPM0223101 Whirlpool Refrigerator Nut
18	WP67002552 Whirlpool Refrigerator Light Bulb
19	MAY 67004951
19	MAY M0238616
19	MAY W10133687
20	MAY 67005016
21	MAY 67004135
