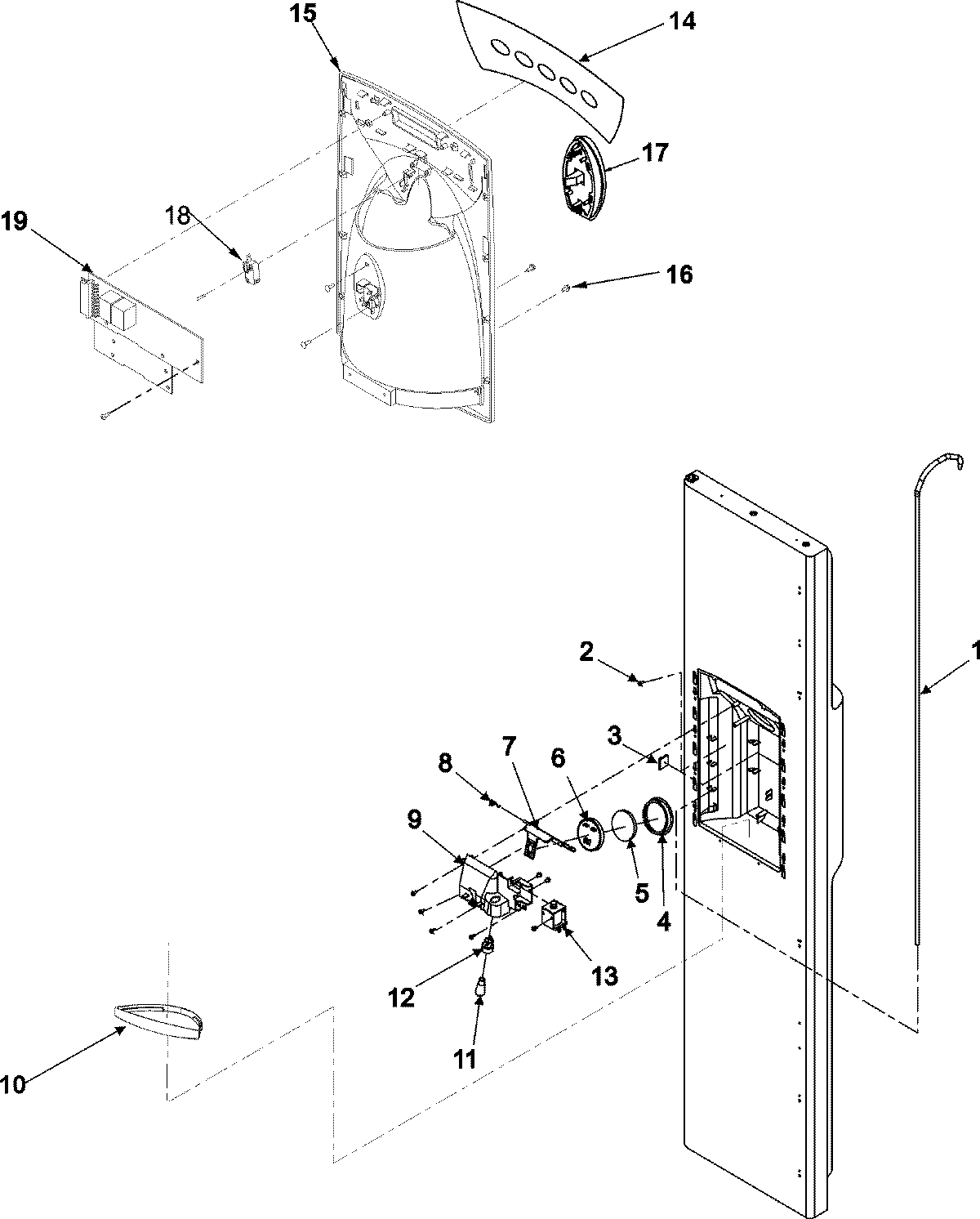

AS2324GEKW 08 – FZ DOOR AND FACADE

Products

Position	Product
NI	MAY Y67006001
1	67004938 Whirlpool Refrigerator Waterline Assembly
2	W10833902 Whirlpool Refrigerator Clamp
3	MAY M0104102
4	MAY 12665101
5	MAY 12563401
6	WP12562701 Whirlpool Dispenser Door
7	MAY 67004119
8	WP12565502 Whirlpool Refrigerator Spring
9	Extension, Ice Chute
9	MAY 67005010
10	MAY 67004523
11	Bulb, Light
12	MAY 12617501
13	MAY 12575401
13	SCREW, SM
14	MAY 67005202
15	MAY 67005203
15	MAY 12779019WS
16	Screw (2)
17	Actuator Pad Assy. (Stainless)
17	MAY 12593203S
18	MAY M0237902
18	WP12575501 Whirlpool Refrigerator Micro Switch
19	MAY 67005013
19	MAY 67007154
