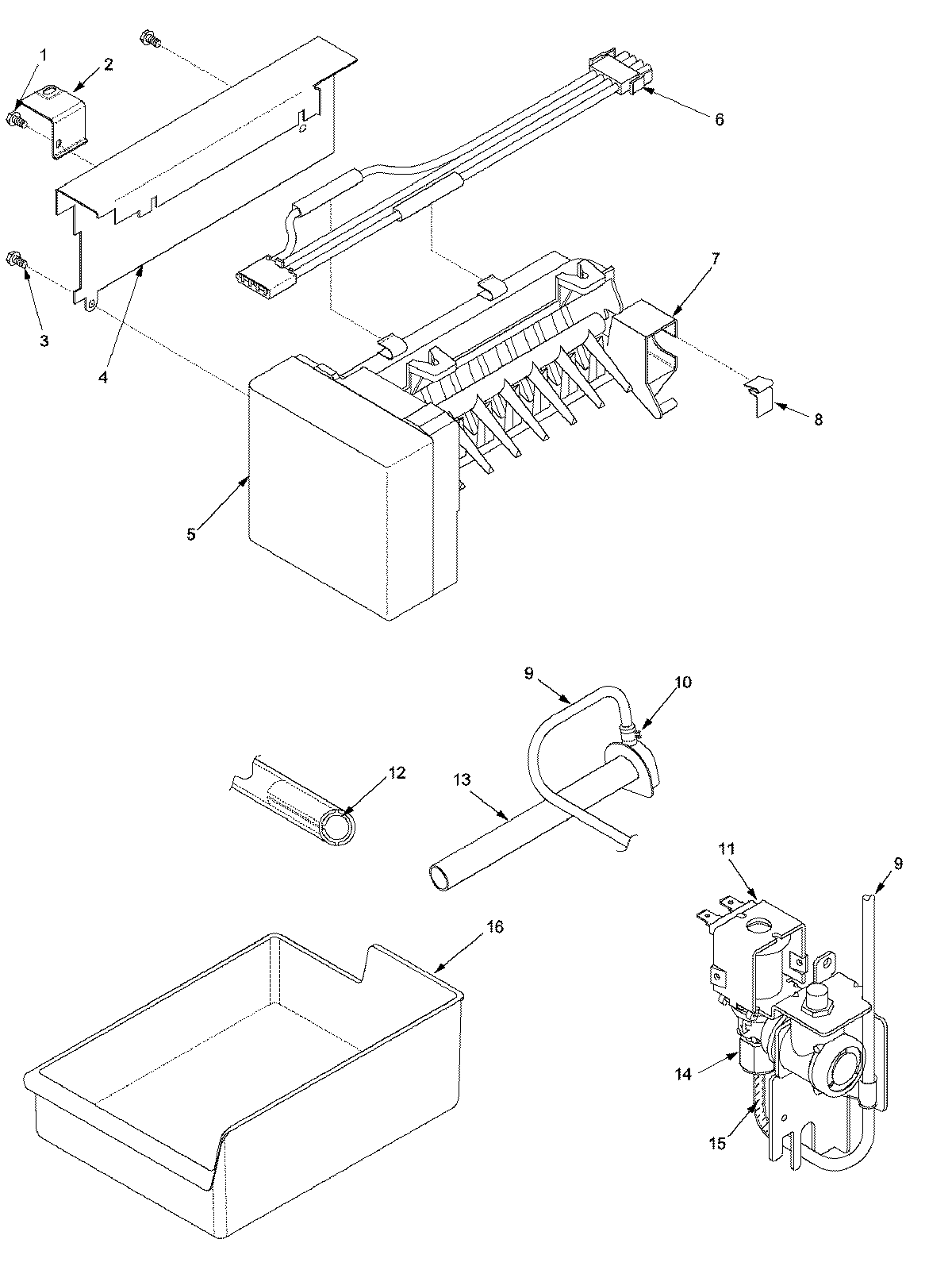

AS2625PEKB 11 – ICE MAKER

Products

Position	Product
1	MAY M0211016
2	MAY B8391802
3	SCREW, SM
4	SHIELD, ICE MAKER
5	WPW10289690 Whirlpool Ice Maker Cover
6	MAY 67002248
7	MAY D7846305
7	MAY M0211018
7	MAY 10244905
7	W10833902 Whirlpool Refrigerator Clamp
7	ARM-SHUT
8	MAY B5720302
9	MAY B5705323
10	Clip
11	MAY 67002250
12	MAY A3223101
13	ELBOW, FILL TUBE
14	NUT, SLEEVE
15	SPRING, ANTI KINK
16	WP67001255 Whirlpool Ice Bucket
