AS2625PEKB 12 – REFRIGERATOR DOOR

AS2625PEKB 12 – REFRIGERATOR DOOR

Written by

in

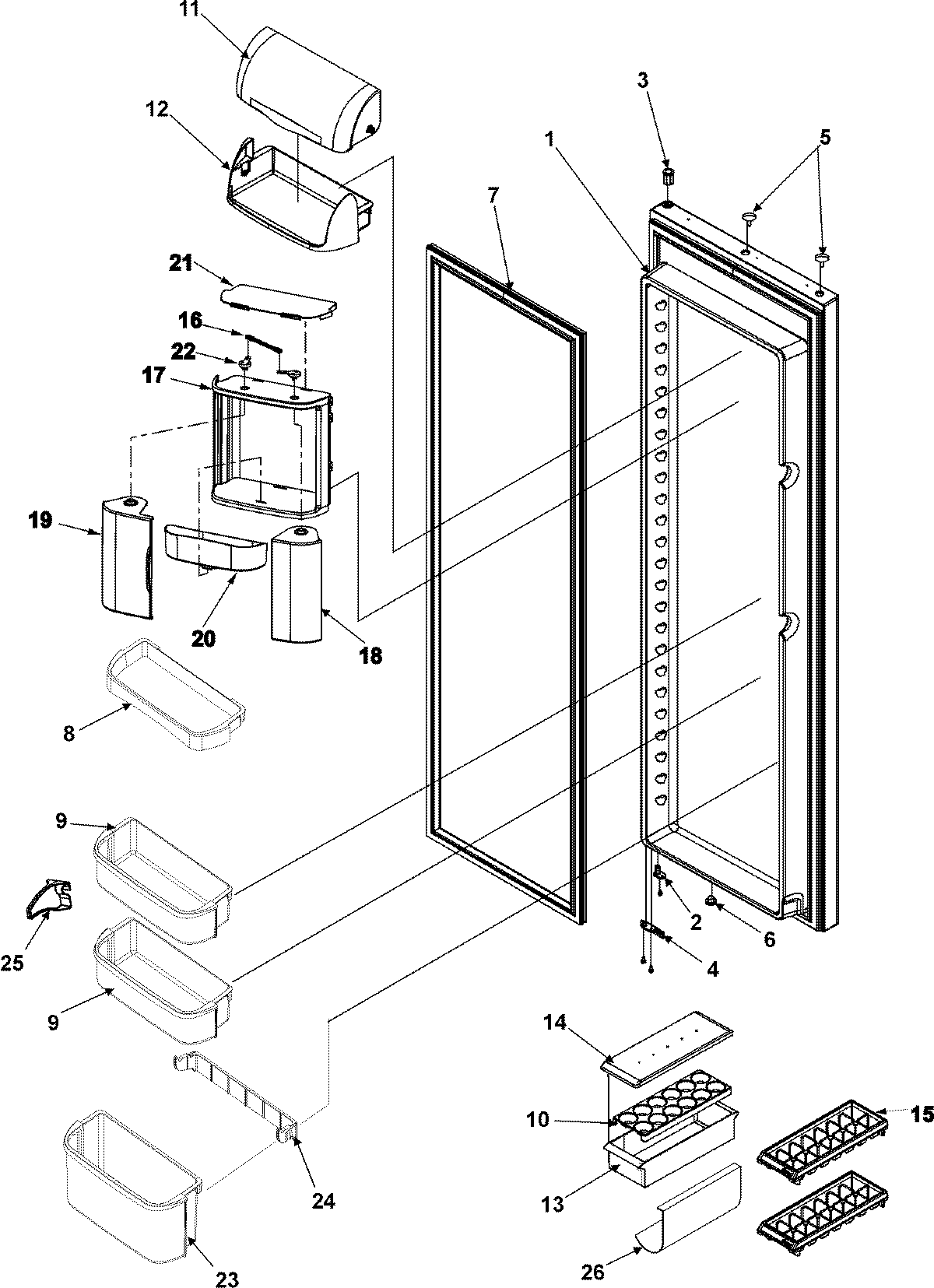

AS2625PEKB 12 – REFRIGERATOR DOOR

Products

PositionProduct
NIY12528501 Whirlpool Refrigerator Nameplate
1MAY 12818236B
1MAY 67005197
2MAY R0181181
2CLOSURE, DOOR (BLK)
2MAY M0220432
3MAY 67004976
3MAY 10961002
4MAY 12636401B
4MAY M0211018
4MAY 67007017
5MAY M0311604
6MAY A3080001
7MAY W10133482
7W10840101 Whirlpool Refrigerator FIP Gasket
8MAY 67004458
9MAY 67004208
10MAY 10436506
11MAY 67002957
12MAY 67002304
13MAY 10423131
14MAY 10436404
15MAY 67001205
16Linkage, Center Chiller (2)
17Frame, Chiller (Large)
18Door Chiller (RT) (Large)
19MAY 67004268
20Tray, Chiller (2)
21Cover, Chiller (2)
22Linkage, Chiller (4)
23MAY 67004205
24MAY 67004378
25MAY 67004564
26RACK, BOTTLE
