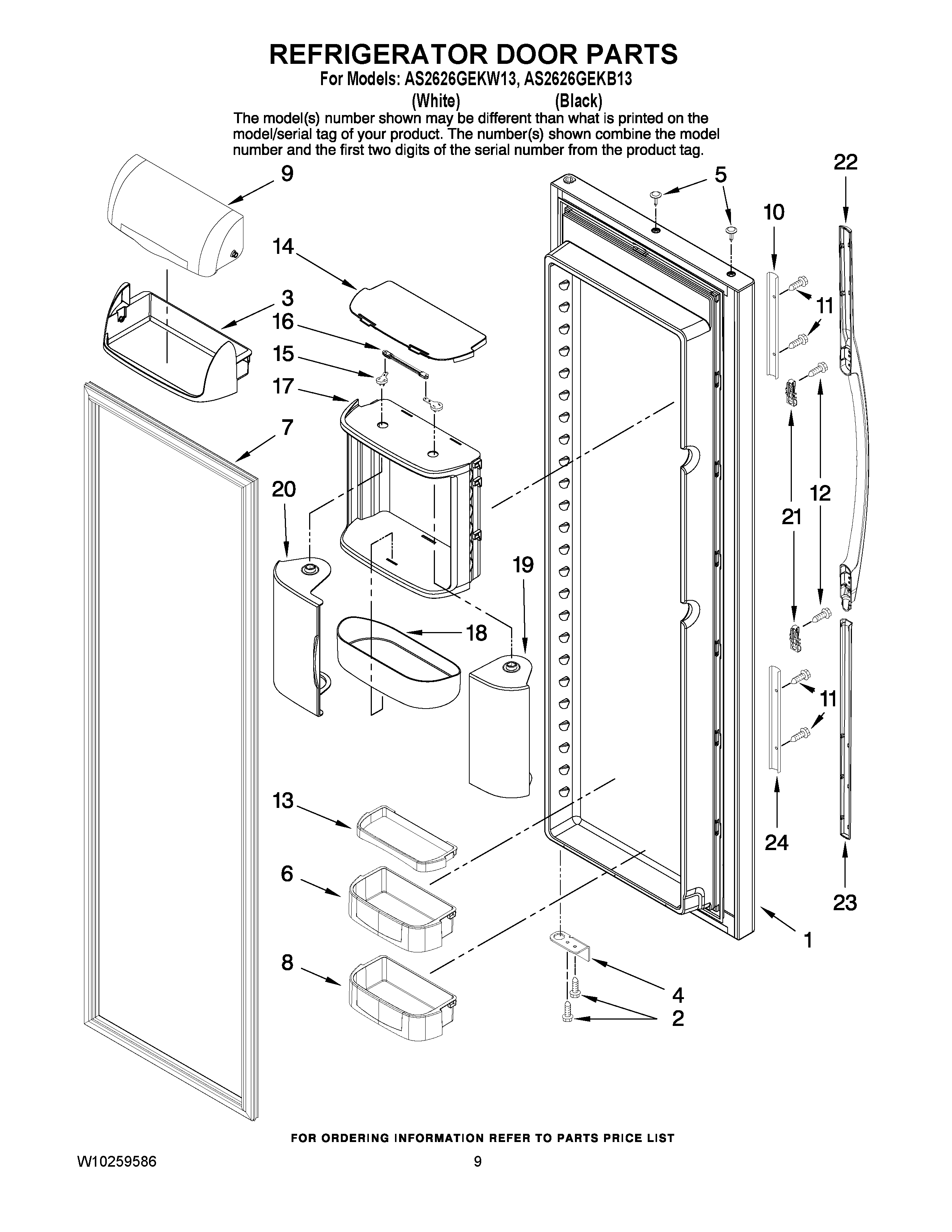

AS2626GEKB13 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 12818235BQ
1	MAY 12818235WQ
2	Screw (2)
3	MAY 67002304
4	MAY 67007017
4	STOP, DOOR (WHT)
5	MAY M0311604
6	MAY 67004208
7	MAY W10133482
7	MAY W10133828
8	MAY 67004205
9	MAY 67002957
10	MAY 67004116
11	SCREW
12	WP12992902 Whirlpool Refrigerator Screw
13	MAY 67004458
14	Cover, Chiller (2)
15	Linkage, Chiller (4)
16	Linkage, Center Chiller (2)
17	Frame, Chiller (Large)
17	Frame, Chiller (Mini)
18	Tray, Chiller (2)
19	Door Chiller (RT) (Large)
19	Door Chiller (RT) (Mini)
20	Door Chiller (LT) (Large)
20	MAY 67003137
22	MAY W10119678
22	MAY W10119680
23	TRIM, HANDLE 36``(BLK)
23	MAY 67004297
24	MAY 67004117
