AS2626GEKS 01 – CABINET BACK

AS2626GEKS 01 – CABINET BACK

Written by

in

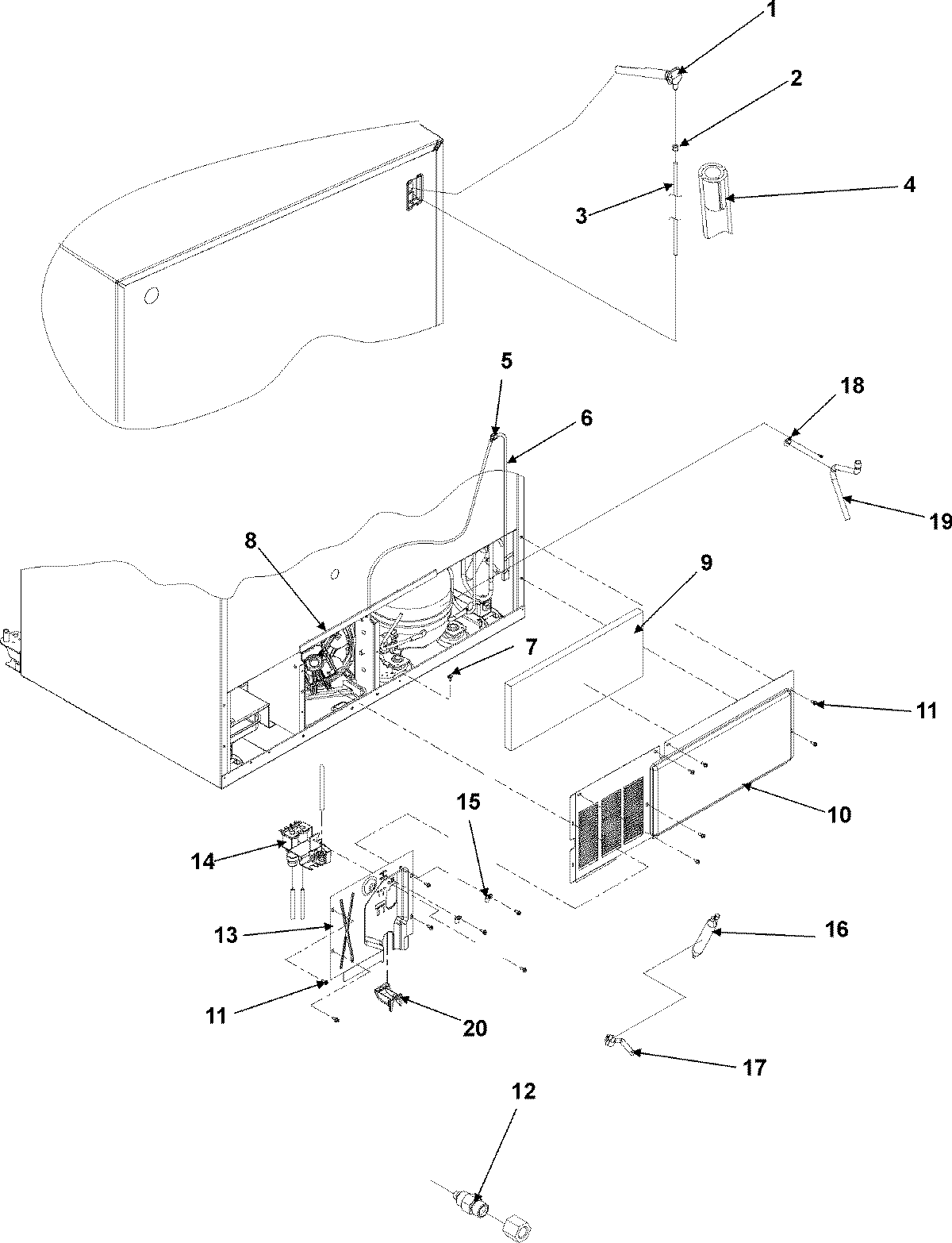

AS2626GEKS 01 – CABINET BACK

Products

PositionProduct
1WP67003576 Whirlpool Refrigerator Fill Tube Elbow
2Clip
3WPB5705307 Whirlpool Refrigerator Tube
4MAY A3223101
5MAY M0104104
6MAY 67002229
7MAY M0239216
8Gasket
967003796 Whirlpool Refrigerator Fiber Acoustic
10MAY 67002230
12WP2300868 Whirlpool Refrigerator Fitting
13MAY 67005117
13MAY M0238616
14681390 Whirlpool Refrigerator Screw
14MAY 67005030
15W10833902 Whirlpool Refrigerator Clamp
16DRIER
17MAY 10547002
17MAY 67002525
18MAY M0102303
18MAY M0220621
19MAY 12580401
2012831101 Whirlpool Refrigerator Tube Clamp
