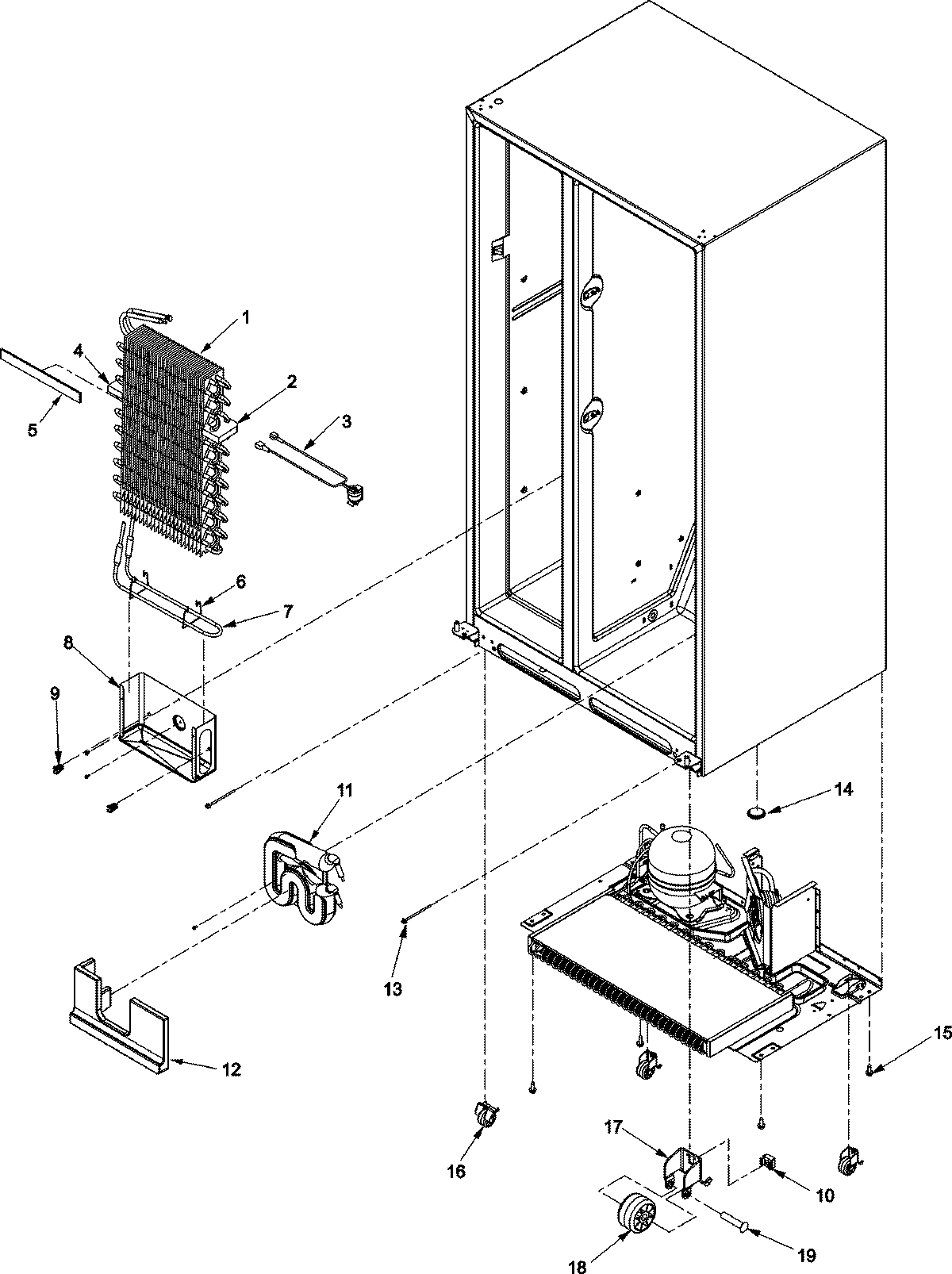

AS2626GEKS 06 – EVAPORATOR ASSY AND ROLLERS

AS2626GEKS 06 – EVAPORATOR ASSY AND ROLLERS

Written by

in

AS2626GEKS 06 – EVAPORATOR ASSY AND ROLLERS

Products

PositionProduct
NIMAY M0286708
1MAY 12676401
2MAY 12590102
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67002226
6W11673433 Whirlpool Clip
7MAY 67005024
8MAY M0224416
8MAY 12558101WD
9MAY 10623003
10MAY 10093315
11MAY M0211018
11MAY 67003504
12MAY 67004309
1371003131 Whirlpool Oven Screw
14A3076901 Whirlpool Refrigerator Plug
15MAY 67001510
16ROLLER BRACKET ASSY
1712456801V Whirlpool Refrigerator Bracket
18WP10450603 Whirlpool Refrigerator Roller
19MAY M1205302
