AS2626GEKW 05 – EVAP FAN ASSY AND LIGHTS

AS2626GEKW 05 – EVAP FAN ASSY AND LIGHTS

Written by

in

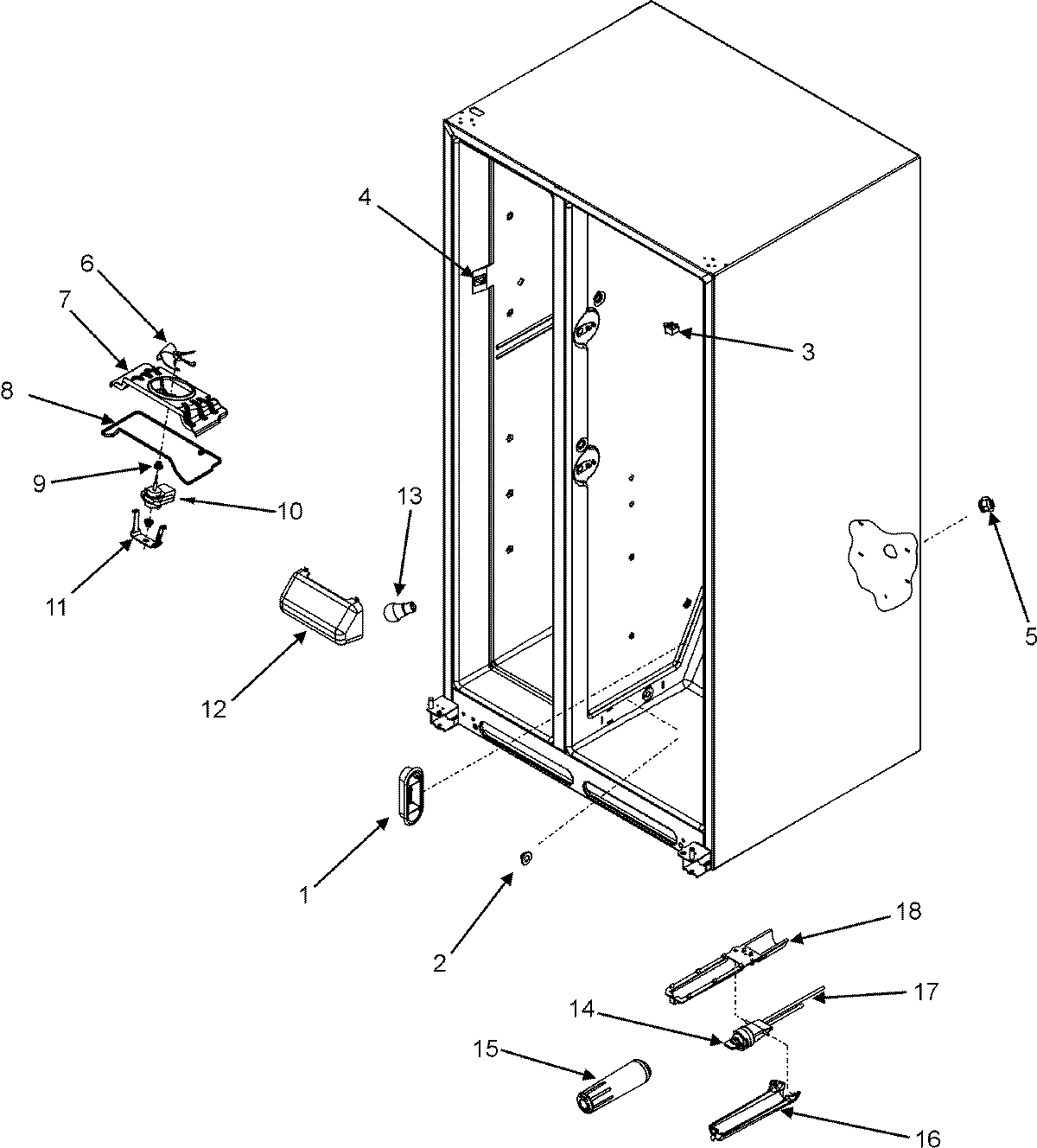

AS2626GEKW 05 – EVAP FAN ASSY AND LIGHTS

Products

PositionProduct
1MAY 12634801
2MAY 67002826
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
5MAY 67005016
6MAY 12217201
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10MAY 67005023
11WP67005633 Whirlpool Refrigerator Bracket
12MAY 67001507
13WP67002552 Whirlpool Refrigerator Light Bulb
14MAY 67003146
15MAY 67003640
16WP12568001 Whirlpool Filter Cover
17MAY 67004659
18MAY 12688503
