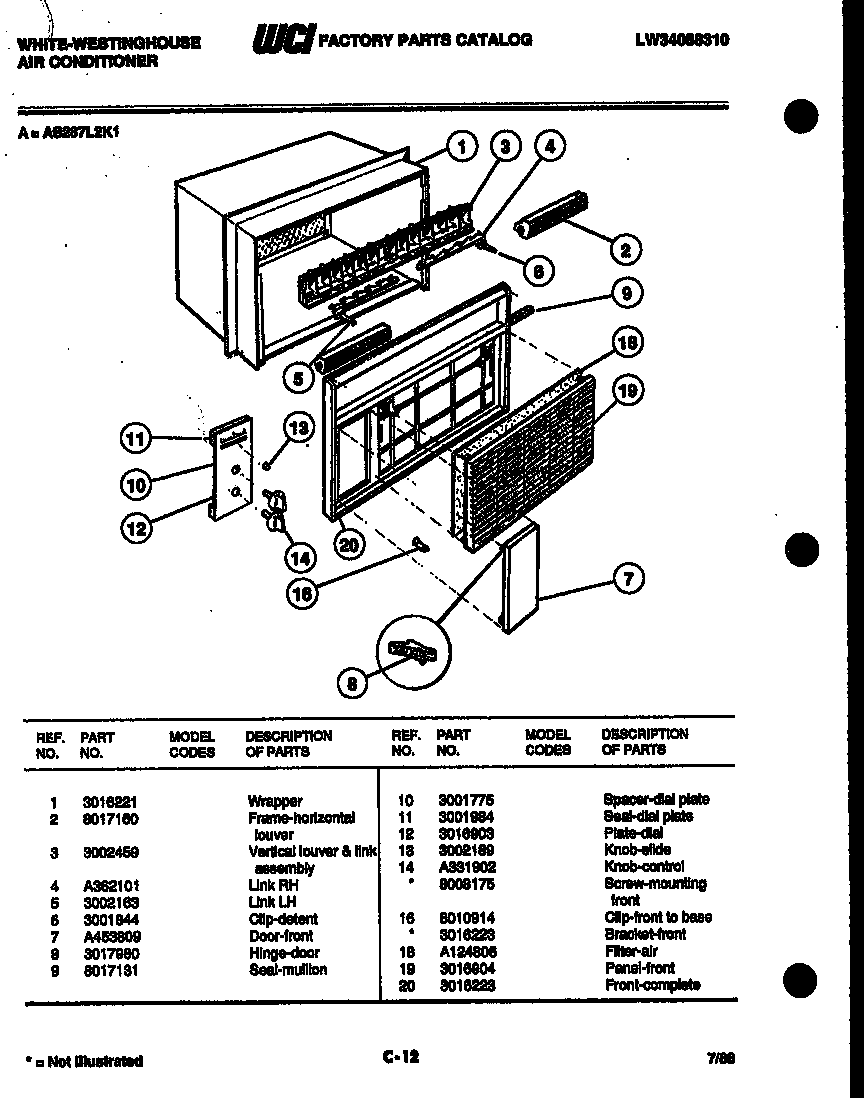

AS287L2K1 02 – CABINET PARTS

Products

Position	Product
1	WCI 3016221
2	FRAME-HORIZONTAL LOUVER
3	FRAME-VERT & LINK ASSY
4	WCI A362101
5	LINK-VERT LOUVER LH
6	CLIP-DETENT
7	WCI A453809
8	WCI 3017980
9	WCI 8017131
10	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
11	SEAL-DIAL PLATE
12	WCI 3016903
13	WCI 3002189
14	KNOB
14A	SCREW-FRONT
16	CLIP-FRONT TO BASE
18	WCI A124806
19	WCI 3016904
20	BRACKET-FRAME FRONT
