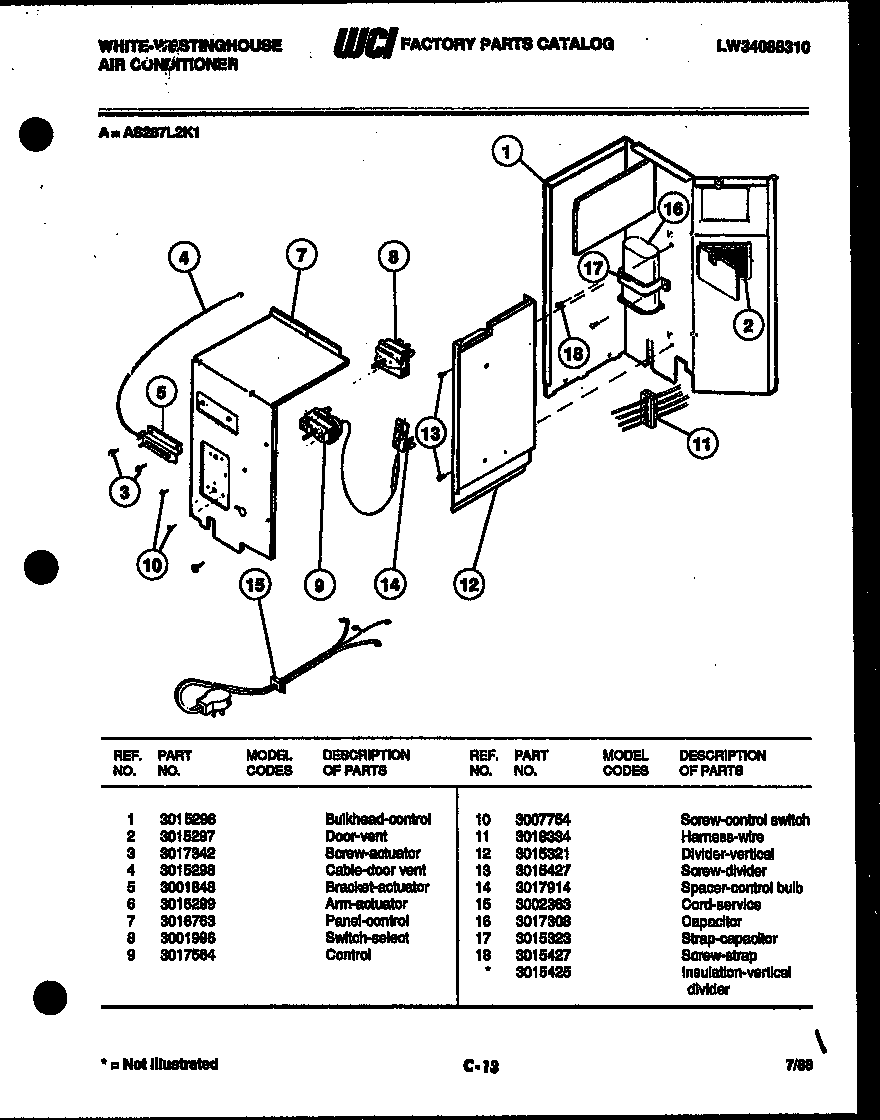

AS287L2K1 03 – ELECTRICAL PARTS

Written by

Products

Position	Product
*12252	WCI 3015425
1	WCI 3015296
2	WCI 3015297
3	SCREW
4	CABLE – DOR VENT
5	WCI 3001848
6	WCI 3015299
7	WCI 3016763
8	WCI 3001996
9	WCI 3017564
10	SCREW-CONT AND SWITCH MTG (NON-ILLUSTRATED)
11	WIRE-HARNESS
12	WCI 3015321
14	SPACER – CONTROL BULB
15	WCI 3002363
16	CAPACITOR
17	STRAP – CAPACITATOR
18	134178901 Frigidaire Screw
