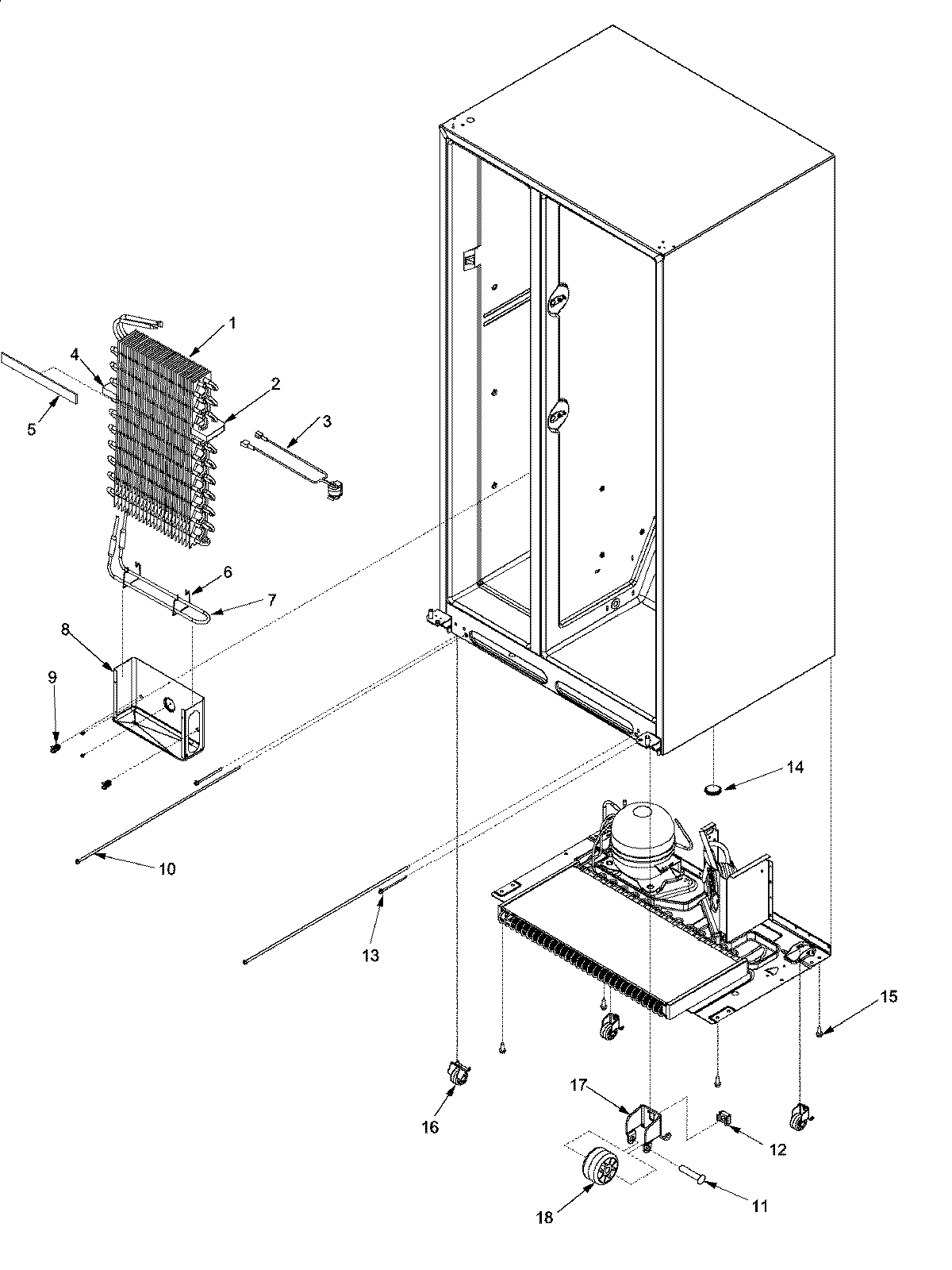

ASB2623HRQ 07 – EVAPORATOR ASSY AND ROLLERS

ASB2623HRQ 07 – EVAPORATOR ASSY AND ROLLERS

Written by

in

ASB2623HRQ 07 – EVAPORATOR ASSY AND ROLLERS

Products

PositionProduct
1MAY 12676401
2MAY 12590102
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67002226
6W11673433 Whirlpool Clip
7WP67004188 Whirlpool Heater Defrost Assembly
8MAY 12558101WD
8MAY M0224416
9MAY 10623003
10MAY 10093313
11MAY M1205302
12MAY M0286708
1371003131 Whirlpool Oven Screw
14A3076901 Whirlpool Refrigerator Plug
15MAY 67001510
16ROLLER BRACKET ASSY
1712456801V Whirlpool Refrigerator Bracket
18MAY 10450602
