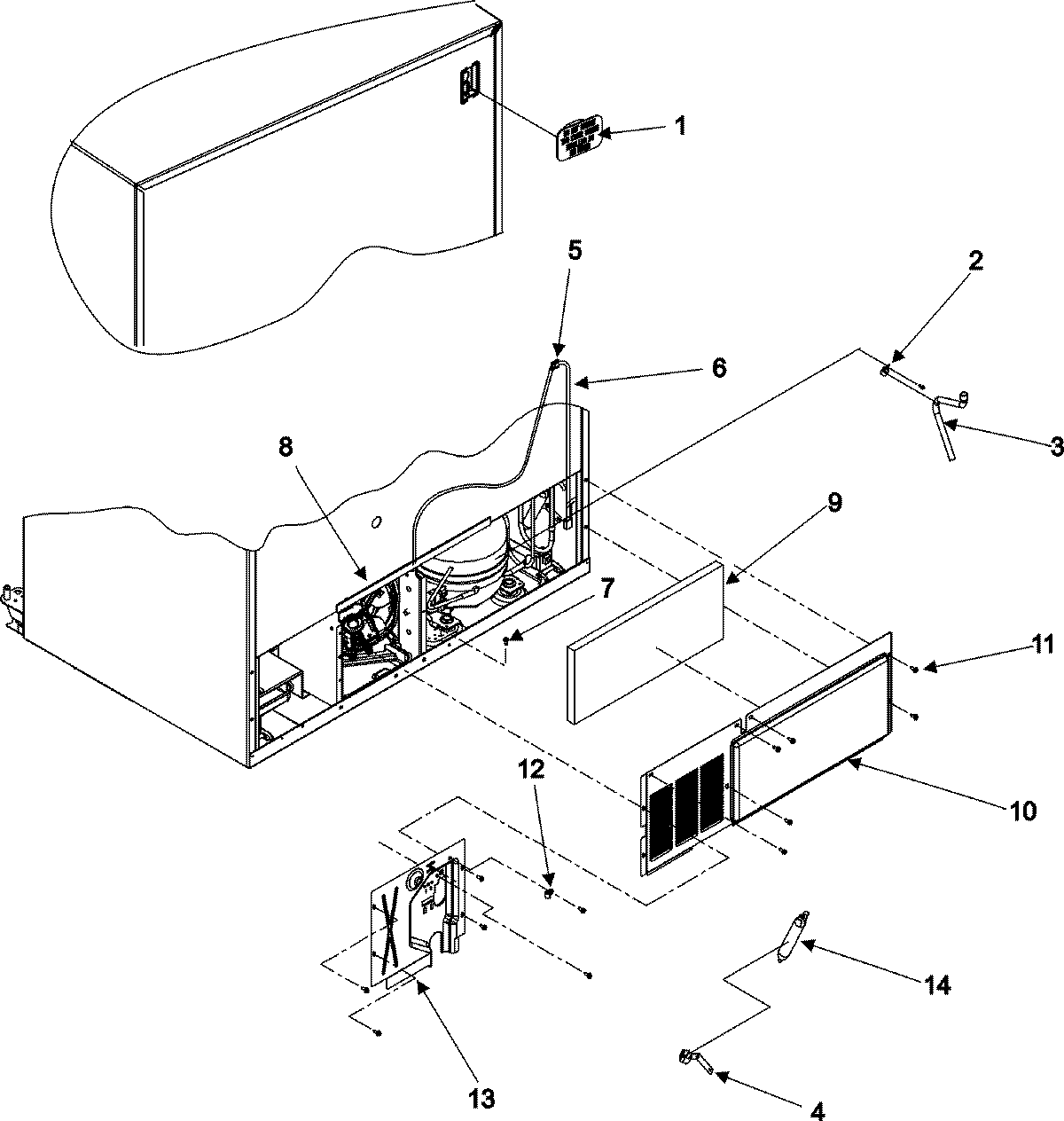

ASB2623HRW 01 – CABINET BACK

ASB2623HRW 01 – CABINET BACK

Written by

in

ASB2623HRW 01 – CABINET BACK

Products

PositionProduct
1MAY 10544301
2WP489069 Whirlpool Compactor Screw
2MAY M0102303
3MAY 12580401
4W10709801 Whirlpool Refrigerator Screw
4MAY 10547002
5WPM0104106 Whirlpool Refrigerator Clip
6WP67006506 Whirlpool Refrigerator Power Cord
7MAY M0239216
8Gasket
967003796 Whirlpool Refrigerator Fiber Acoustic
10BACK, MACH COMP
11MAY M0238616
12W10833902 Whirlpool Refrigerator Clamp
12681390 Whirlpool Refrigerator Screw
13MAY 12479803
13MAY M0226528
14DRIER
