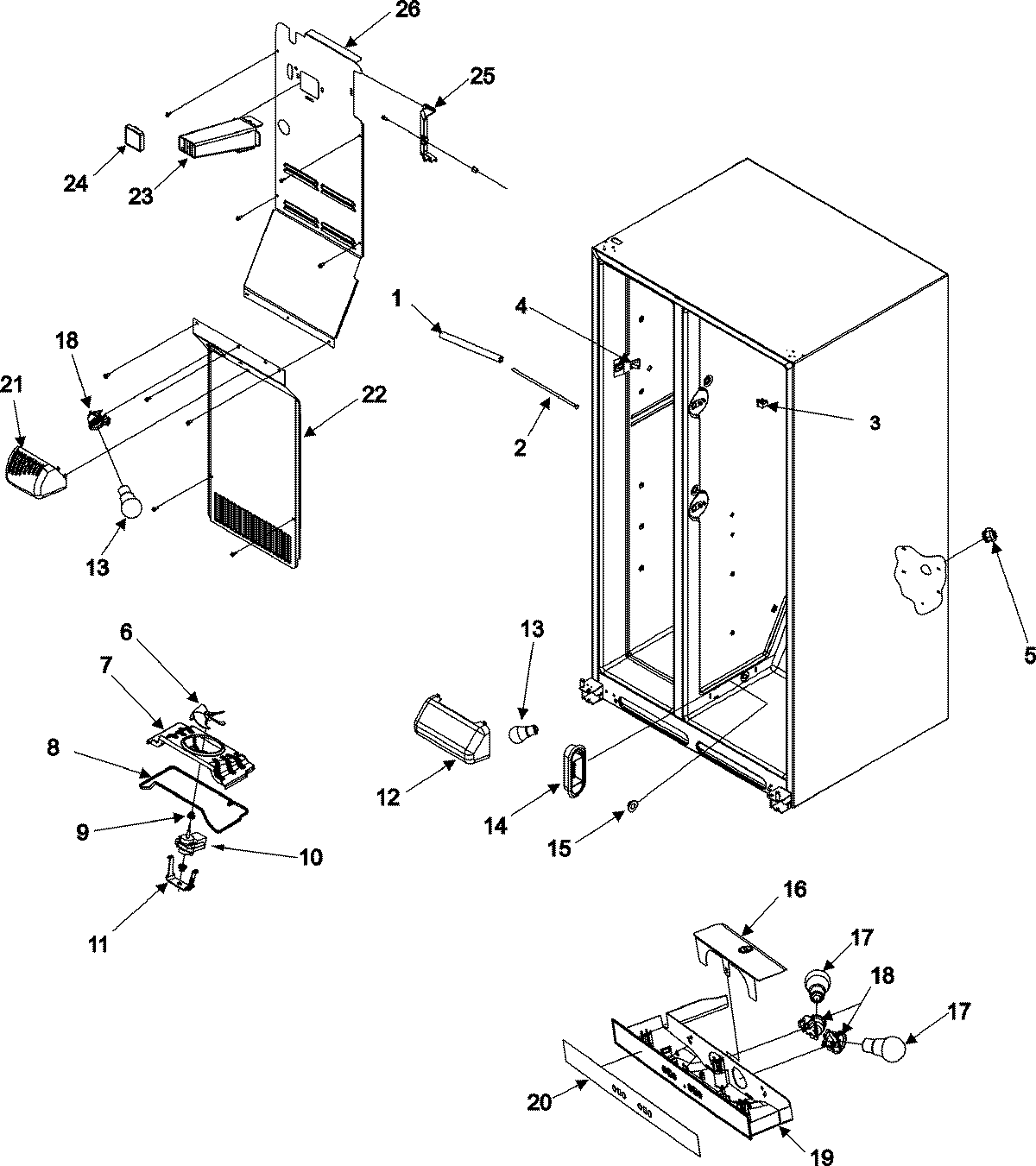

ASB2623HRW 06 – EVAP FAN ASSY AND LIGHTS

ASB2623HRW 06 – EVAP FAN ASSY AND LIGHTS

Written by

in

ASB2623HRW 06 – EVAP FAN ASSY AND LIGHTS

Products

PositionProduct
1MAY 67002219
2MAY M0322202
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
6MAY 12217201
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10WPW10128551 Whirlpool Evaporator Fan Motor
11WP67005633 Whirlpool Refrigerator Bracket
12MAY 67001507
14MAY 12634801
15MAY 67003018
16MAY 67004157
17Bulb, Light (2)
18Socket, Light (2)
19MAY 67004240
20MAY 67004327
21MAY 67004135
22MAY 67004192
23MAY 67003581
24MAY D7874403
25MAY 12583101
25MAY M0580205
26MAY M0238616
26MAY 67004382
