ASB2623HRW 12 – ICE MAKER

ASB2623HRW 12 – ICE MAKER

Written by

in

ASB2623HRW 12 – ICE MAKER

Products

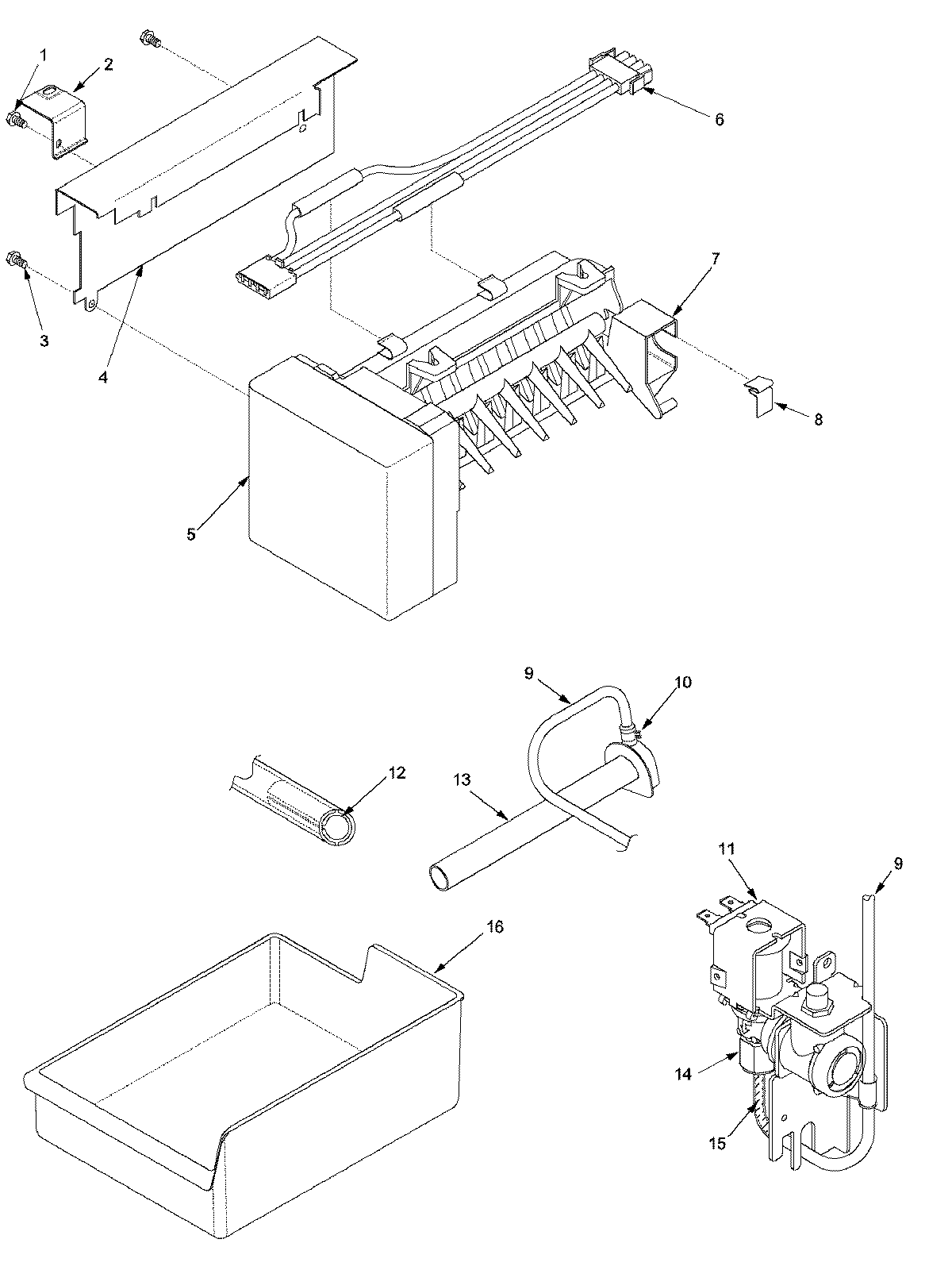

PositionProduct
NIMAY M0311301
NIMAY 10525901
NI681390 Whirlpool Refrigerator Screw
1MAY M0211016
2WP2256087 Whirlpool Refrigerator Bracket
3SCREW, SM
4SHIELD, ICE MAKER
5WPW10289690 Whirlpool Ice Maker Cover
6MAY D7813004
7MAY 10884401
7MAY D7824706
7MAY M0211018
7W10833902 Whirlpool Refrigerator Clamp
7W11033771 Whirlpool Refrigerator Coupling
8MAY B5720302
9MAY B5705308
10Clip
11MAY R0000214
12MAY A3223101
13ELBOW, FILL TUBE
14MAY 67003190
15SPRING, ANTI KINK
16WP67001255 Whirlpool Ice Bucket
