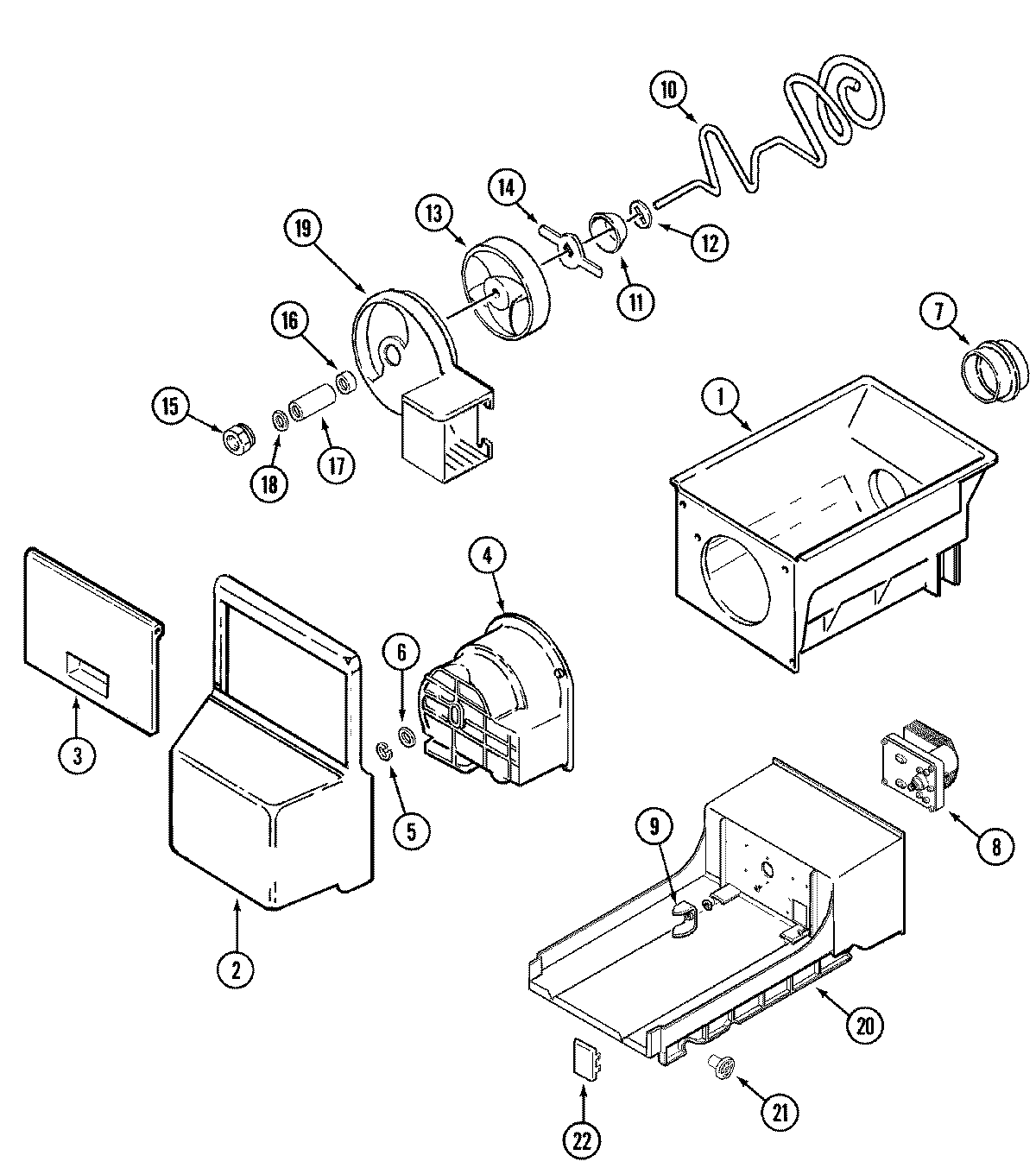

ASD2123DRW 09 – ICE BIN (REV 10)

ASD2123DRW 09 – ICE BIN (REV 10)

Written by

in

ASD2123DRW 09 – ICE BIN (REV 10)

Products

PositionProduct
1MAY 61003319
2MAY 61003320
3MAY 61004327
4415013-35 Whirlpool Refrigerator Screw
4MAY 61003322
5MAY 69704-1
6489234 Whirlpool Refrigerator Washer
7WP61003336 Whirlpool Refrigerator Drive Ring
8MAY 61003325
812001773 Whirlpool Refrigerator Primary Auger Motor Y Assembly
82006253 Whirlpool Refrigerator Screw
9MAY 63052-1
10MAY 61003326
11MAY 69699-1
12MAY 69698-1
13MAY 61003327
14MAY 61003328
15MAY 69709-1
16MAY 69697-1
17MAY 61003329
18MAY 69696-2
19MAY 61003334
20MAY 61003335
21MAY 61003333
21WP67006908 Whirlpool Refrigerator Screw
22MAY 61003330
