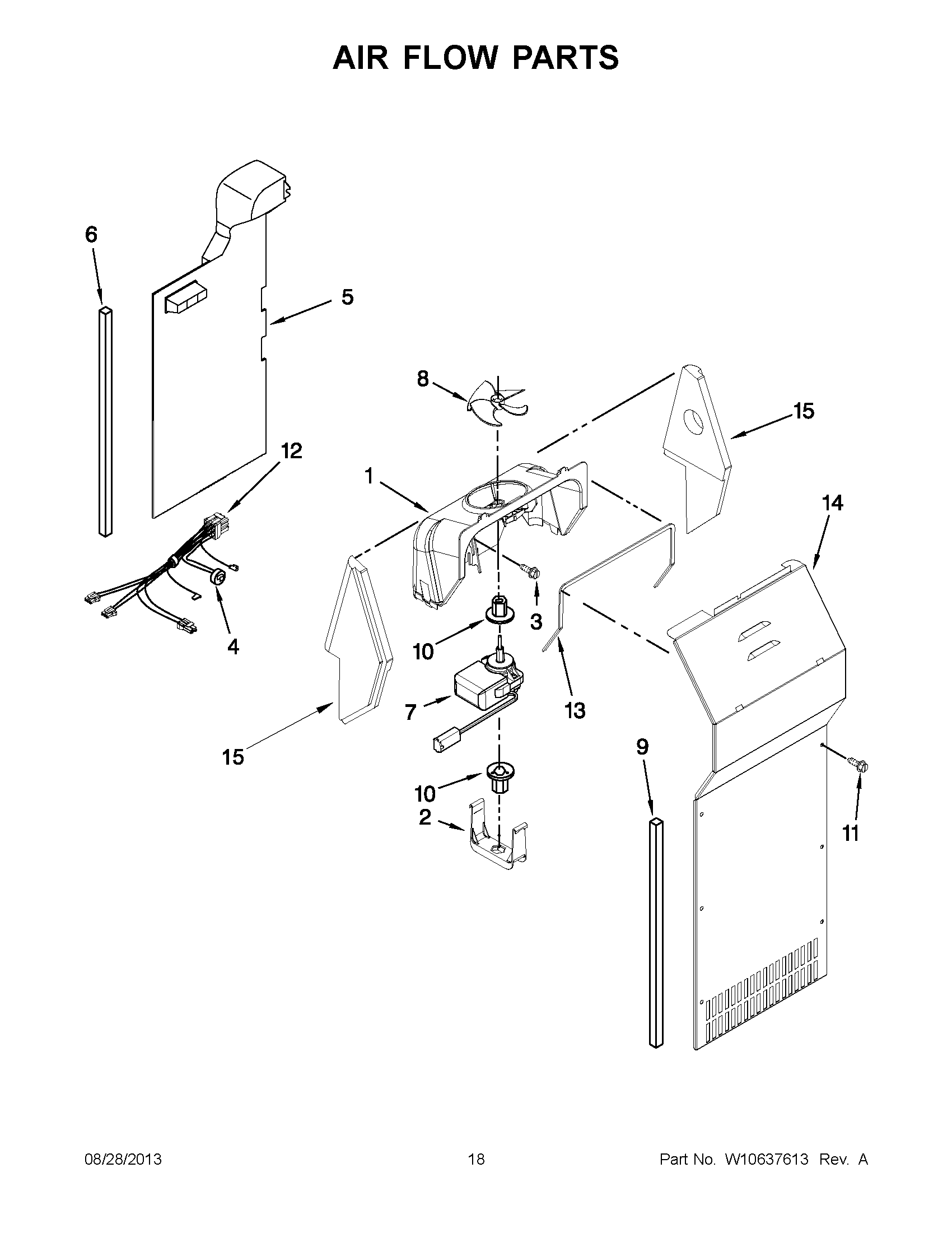

ASD2275BRB00 10 – AIR FLOW PARTS

Products

Position	Product
1	SCROLL, FAN
2	MAY W10188846
3	MAY 489478
4	MAY W10225581
5	MAY W10166220
6	MAY W10252476
7	MAY W10236142
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY 8281159
12	MAY W10297480
13	GASKET, SCROLL ASSEMBLY
14	MAY W10463012
15	SUPPORT, FAN SCROLL (RIGHT HAND)
15	SUPPORT, FAN SCROLL (LEFT HAND)
